RC110 CAB

RC110CAB electrical system Diagram

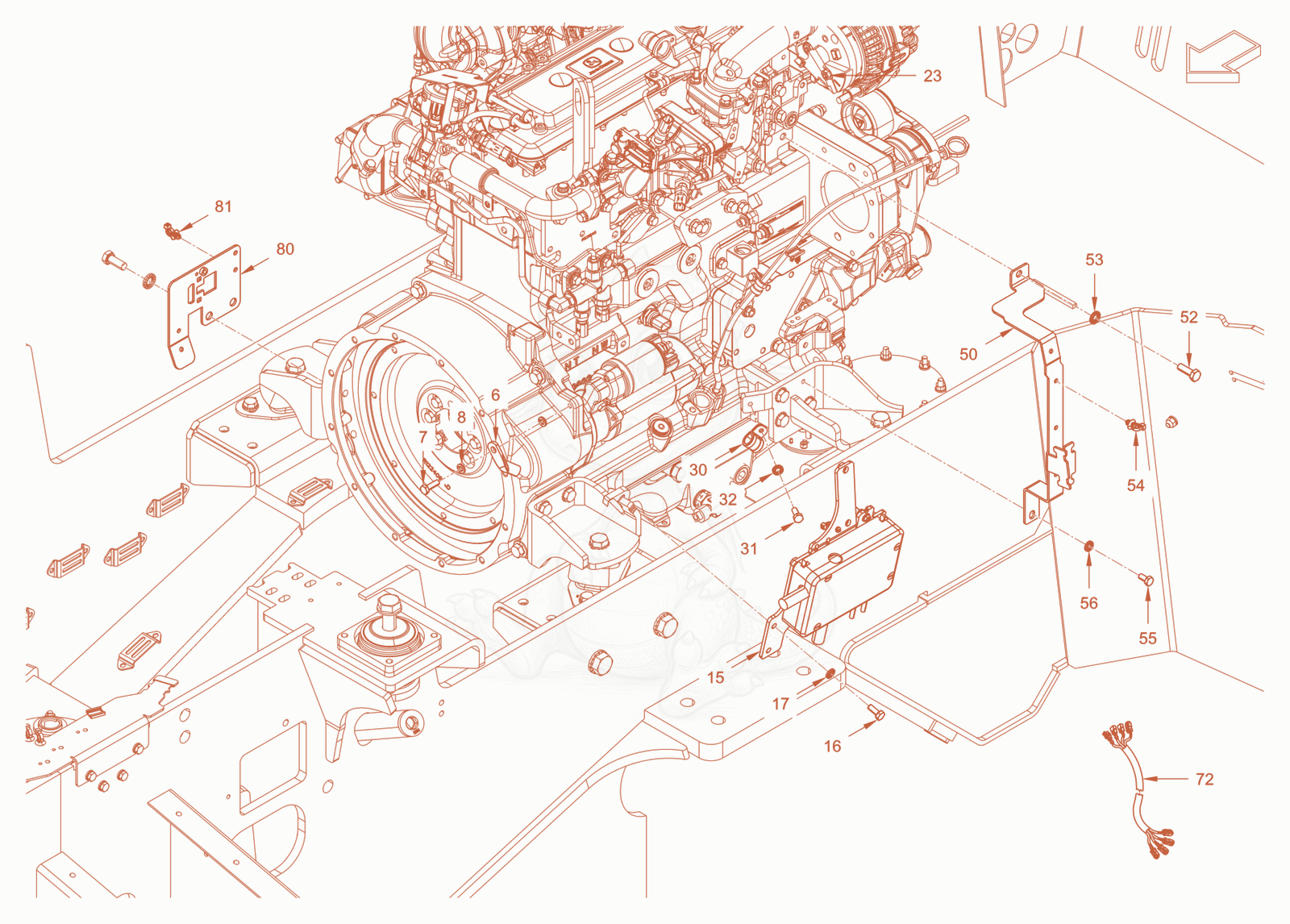

Exploded parts diagram of the electrical system of a Wacker Neuson RC110CAB, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 65100075054Not stocked
    ground cable×1
  • 75100023599Not stocked
    Hexagon screw×1
  • 85100011917
    $1.57
    Serrated lock washer - 5100011917×2
  • 155100075059Not stocked
    cable harness×1
  • 165100012517
    $1.57
    Hexagon screw - 5100012517×2
  • 175100012966
    $1.57
    Locking washer - 5100012966×2
  • 235100013537
    $1.57
    Hexagon nut - 5100013537×1
  • 305100034910
    $12.69
    pipe clip - 5100034910×1
  • 315100012517
    $1.57
    Hexagon screw - 5100012517×1
  • 325100012966
    $1.57
    Locking washer - 5100012966×1
  • 505100075062Not stocked
    holder×1
  • 525100012617
    $2.84
    Hexagon screw - 5100012617×1
  • 535100012967
    $1.57
    Locking washer - 5100012967×1
  • 545100074531Not stocked
    wire fastener×4
  • 555100012516
    $1.57
    Hexagon screw - 5100012516×1
  • 565100012966
    $1.57
    Locking washer - 5100012966×1
  • 725100075065Not stocked
    cable harness×1
  • 805100075068Not stocked
    holder×1
  • 815100074531Not stocked
    wire fastener×4
