RC110 CAB

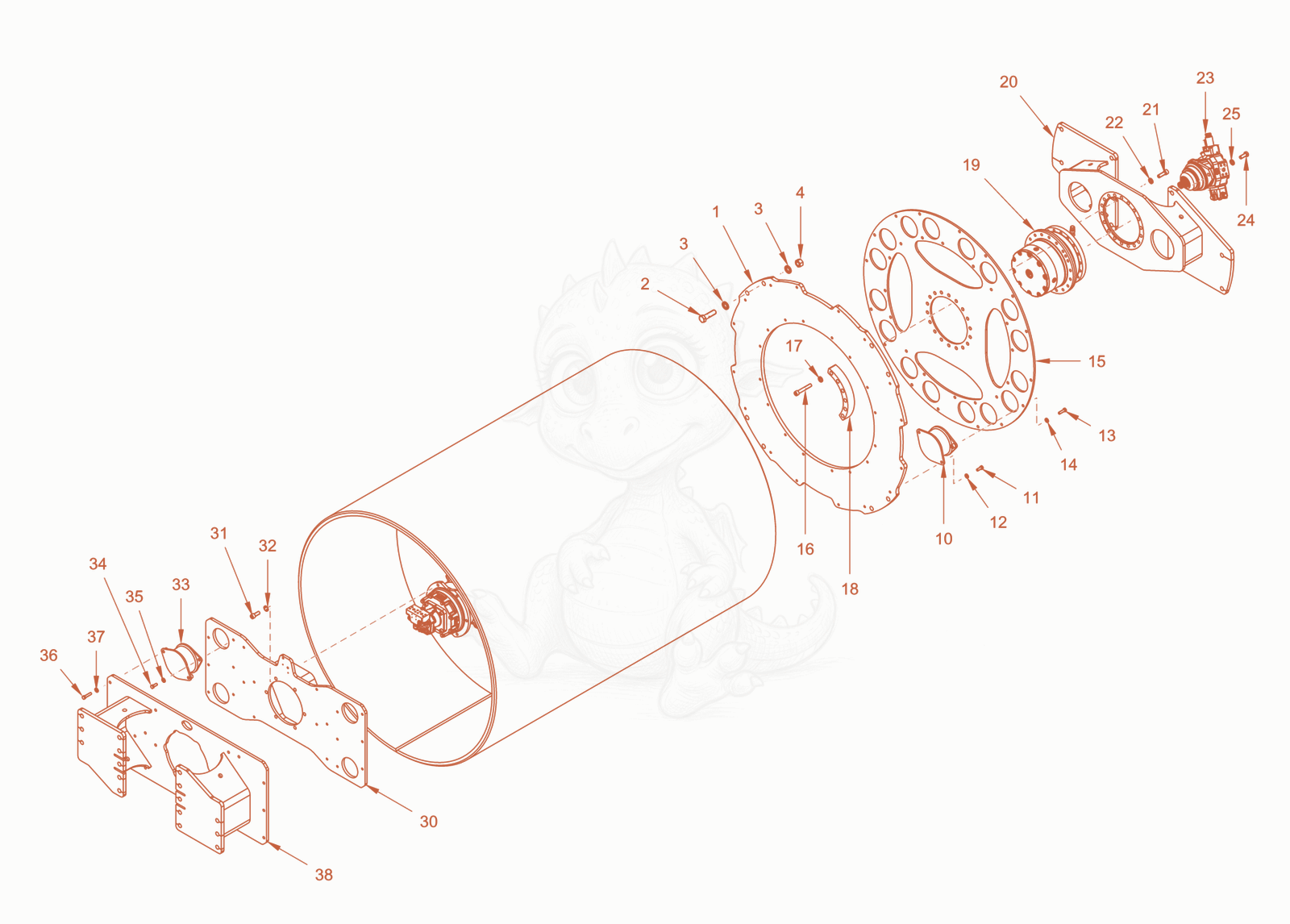

RC110CAB mounting Diagram

Exploded parts diagram of the mounting of a Wacker Neuson RC110CAB, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100075041Not stocked
    driver×1
  • 25100063899Not stocked
    hexagon screw×8
  • 35100063901Not stocked
    locking washer×16
  • 45100063904Not stocked
    hexagonal nut×8
  • 105100075044Not stocked
    silentbloc×6
  • 115100012525
    $2.27
    Hexagon screw - 5100012525×12
  • 125100012968
    $1.57
    Locking washer - 5100012968×12
  • 135100022849
    $2.22
    hexagon screw - 5100022849×12
  • 145100012968
    $1.57
    Locking washer - 5100012968×12
  • 155100075071Not stocked
    driver×1
  • 165100012823
    $6.81
    Cheese-head screw - 5100012823×18
  • 175100012969
    $3.15
    Locking washer - 5100012969×18
  • 185100075076Not stocked
    metal plate×3
  • 195100075080Not stocked
    wheel gear×1
  • 205100075087Not stocked
    roller drum suspension×1
  • 215100023176
    $5.50
    cheese-head screw - 5100023176×18
  • 225100012969
    $3.15
    Locking washer - 5100012969×18
  • 235100035208
    $10,505.97
    variable displacement motor - 5100035208×1
  • 245100023180
    $3.93
    hexagon screw - 5100023180×2
  • 255100012969
    $3.15
    Locking washer - 5100012969×2
  • 305100075093Not stocked
    driver×1
  • 315100023174
    $6.03
    cheese-head screw - 5100023174×6
  • 325100012969
    $3.15
    Locking washer - 5100012969×6
  • 335100075044Not stocked
    silentbloc×6
  • 345100012525
    $2.27
    Hexagon screw - 5100012525×12
  • 355100012968
    $1.57
    Locking washer - 5100012968×12
  • 365100075126Not stocked
    hexagon screw×12
  • 375100012968
    $1.57
    Locking washer - 5100012968×12
  • 385100075130Not stocked
    roller drum suspension×1
