RC110 CAB

RC110CAB electrical system Diagram

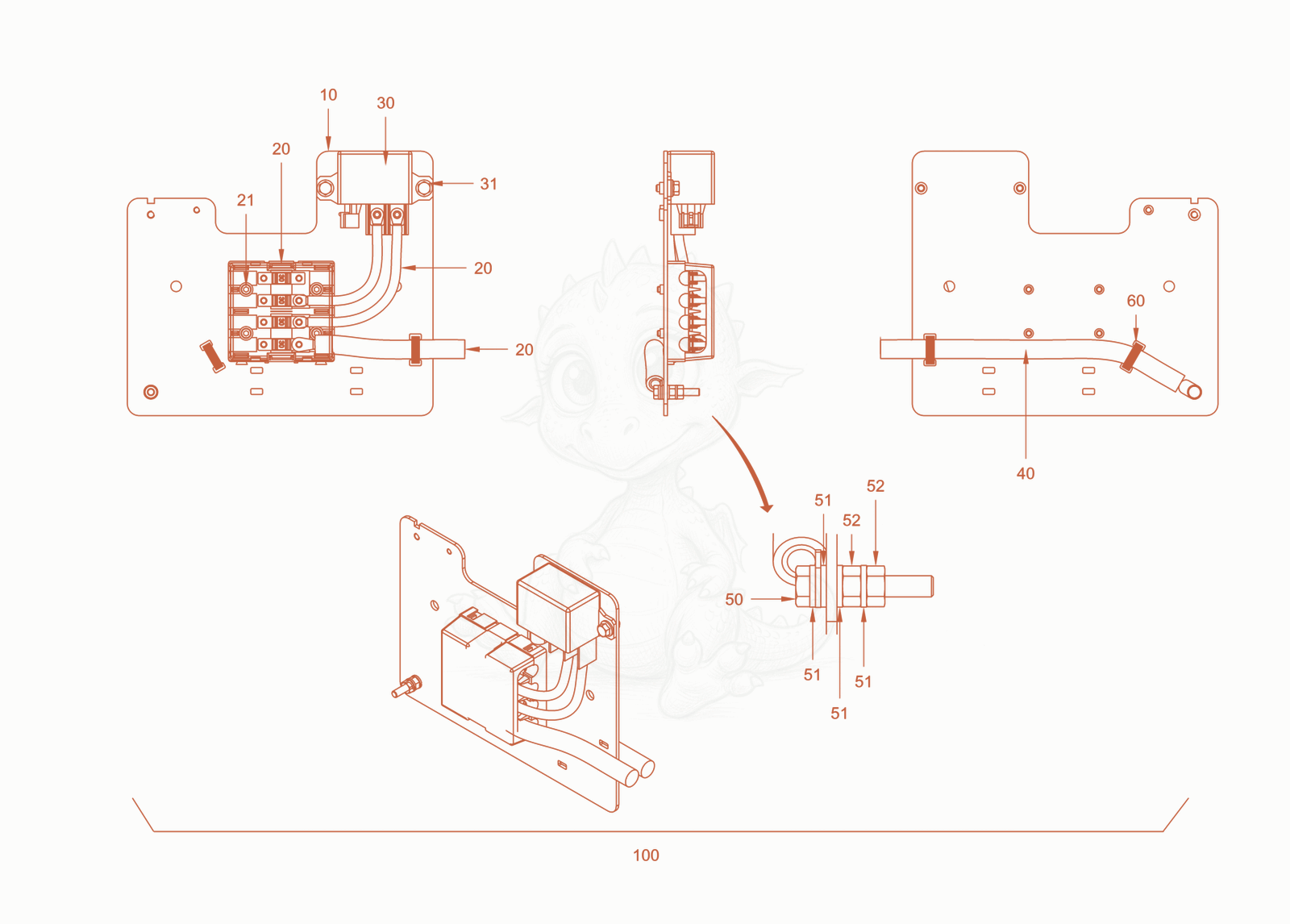

Exploded parts diagram of the electrical system of a Wacker Neuson RC110CAB, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 105100074412Not stocked
    metal plate×1
  • 205100074426Not stocked
    cable harness×1
  • 215100013399
    $1.84
    Cheese-head screw - 5100013399×4
  • 305100011633
    $433.64
    Relay - 5100011633×1
  • 315100023164
    $3.88
    safety screw - 5100023164×2
  • 405100074483Not stocked
    ground cable×1
  • 505100035300Not stocked
    hexagon screw×1
  • 515100023629
    $1.34
    spring ring - 5100023629×4
  • 525100011914
    $1.57
    Hexagon nut - 5100011914×2
  • 605100013429
    $1.18
    Wire fastener - 5100013429×2
  • 1005100074439Not stocked
    cable harness×1
