RC110 CAB

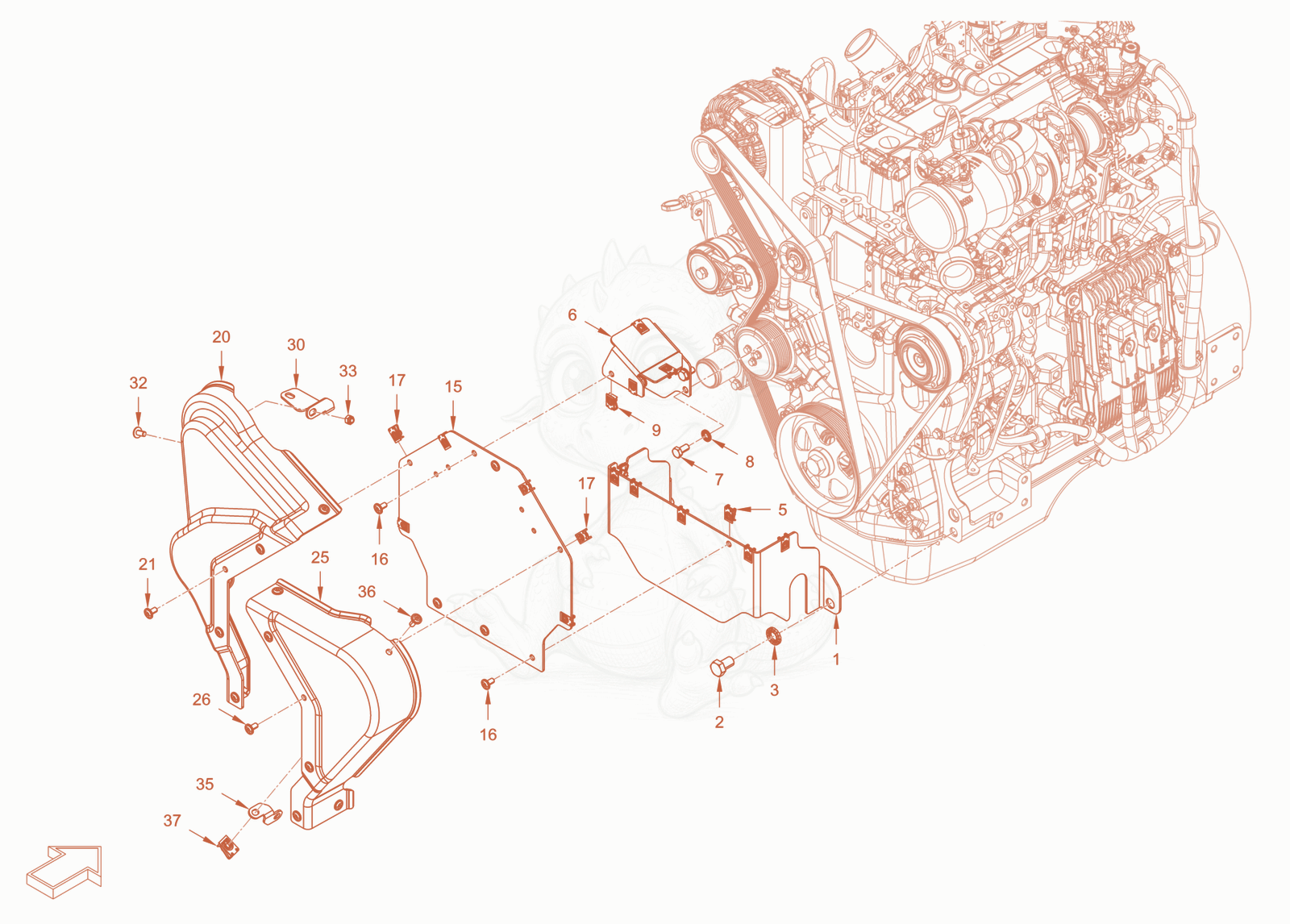

RC110CAB pump drive and engine assembly Diagram

Exploded parts diagram of the pump drive and engine assembly of a Wacker Neuson RC110CAB, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100078842Not stocked
    retaining sheet×1
  • 25100039071Not stocked
    Hexagon Screw×2
  • 35100012969
    $3.15
    Locking washer - 5100012969×2
  • 55100013584
    $6.37
    Clip nut - 5100013584×7
  • 65100078814Not stocked
    retaining sheet×1
  • 75100012520
    $1.57
    Hexagon screw - 5100012520×3
  • 85100012967
    $1.57
    Locking washer - 5100012967×3
  • 95100013584
    $6.37
    Clip nut - 5100013584×4
  • 155100078825Not stocked
    metal plate×1
  • 165100011869
    $1.49
    Fillister head screw - 5100011869×5
  • 175100013584
    $6.37
    Clip nut - 5100013584×6
  • 205100078833Not stocked
    cover×1
  • 215100011869
    $1.49
    Fillister head screw - 5100011869×6
  • 255100078837Not stocked
    cover×1
  • 265100011869
    $1.49
    Fillister head screw - 5100011869×6
  • 305100078836Not stocked
    retaining sheet×1
  • 325100011869
    $1.49
    Fillister head screw - 5100011869×1
  • 335100013584
    $6.37
    Clip nut - 5100013584×1
  • 355100078838Not stocked
    retaining sheet×1
  • 365100035054
    $1.57
    fillister head screw - 5100035054×1
  • 375100013584
    $6.37
    Clip nut - 5100013584×1
