RC110 CAB

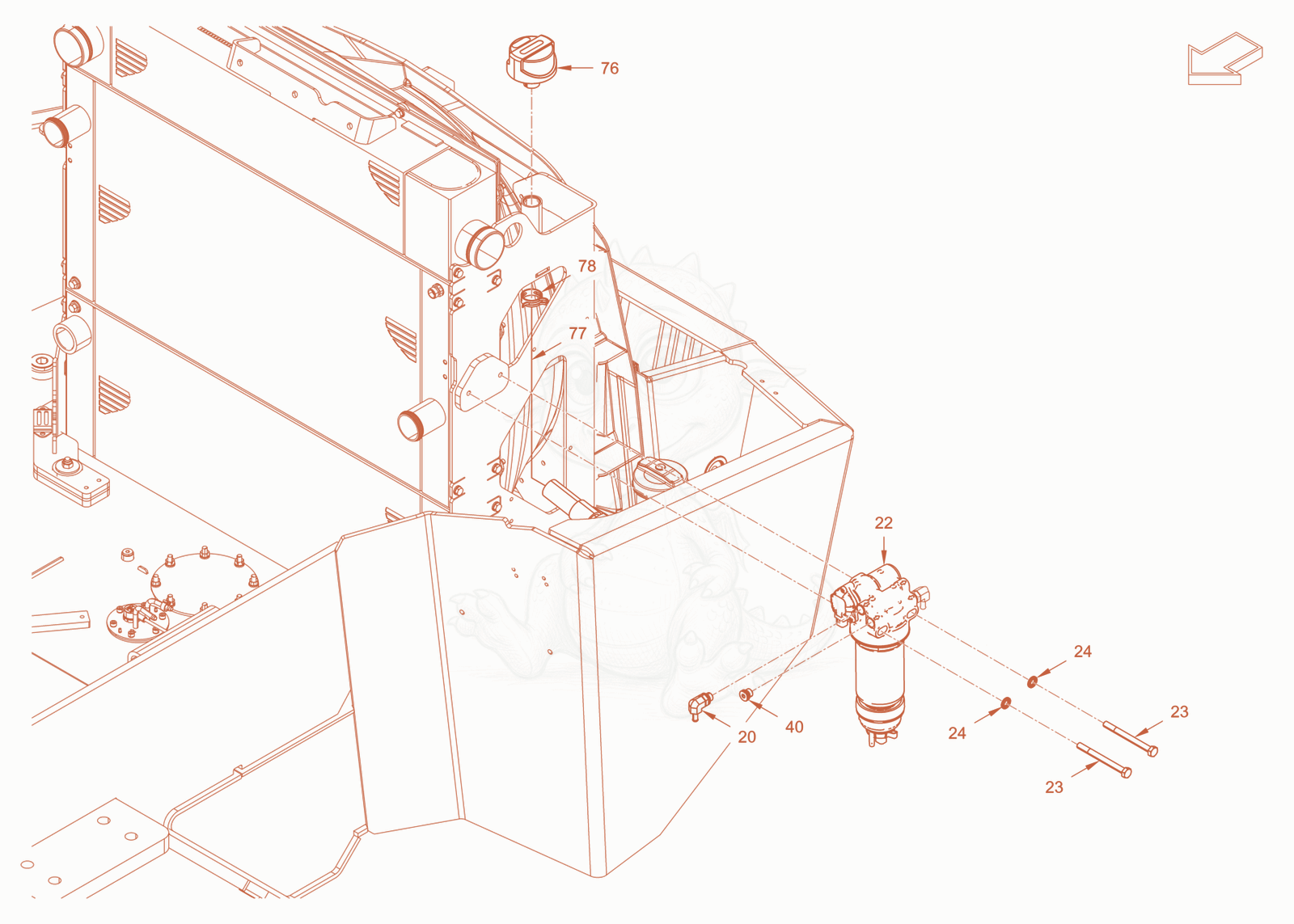

RC110CAB fuel system Diagram

Exploded parts diagram of the fuel system of a Wacker Neuson RC110CAB, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 205100078839Not stocked
    equal elbow×2
  • 225100071989Not stocked
    Fuel Filter×1
  • 235100074862Not stocked
    hexagon screw×2
  • 245100012967
    $1.57
    Locking washer - 5100012967×2
  • 405100078815Not stocked
    fitting×2
  • 765100063888Not stocked
    vent filter×1
  • 775100078816Not stocked
    hose×1
  • 785100034907
    $10.47
    hose clamp - 5100034907×1
