RC110 CAB

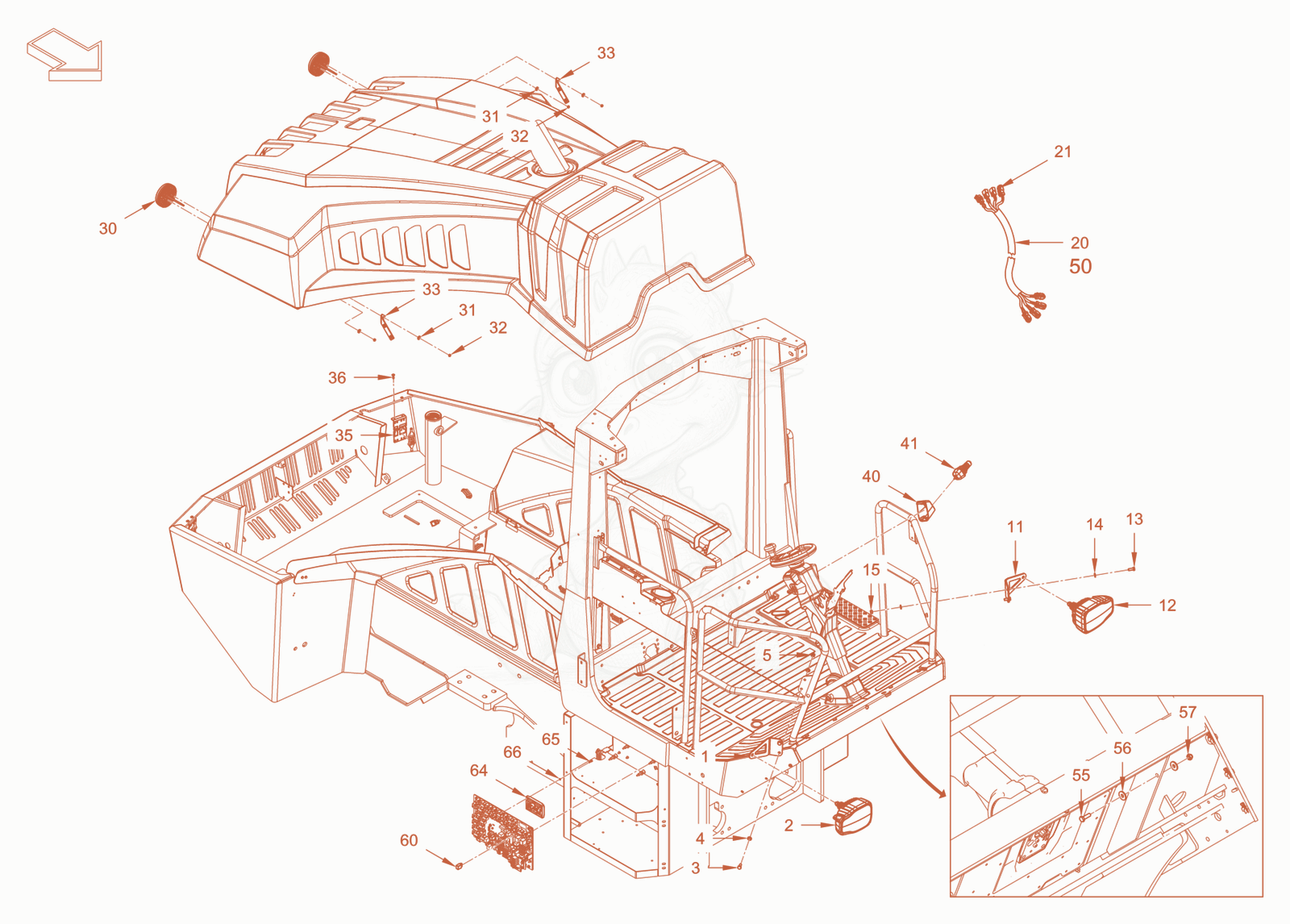

RC110CAB lighting Diagram

Exploded parts diagram of the lighting of a Wacker Neuson RC110CAB, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100079061Not stocked
    holder×1
  • 25100079038Not stocked
    headlamp external×1
  • 35100011479
    $1.57
    Hexagon screw - 5100011479×2
  • 45100012967
    $1.57
    Locking washer - 5100012967×2
  • 55100012547
    $1.49
    Hexagon nut - 5100012547×2
  • 115100079061Not stocked
    holder×1
  • 125100079047Not stocked
    headlamp external×1
  • 135100011479
    $1.57
    Hexagon screw - 5100011479×2
  • 145100012967
    $1.57
    Locking washer - 5100012967×2
  • 155100012547
    $1.49
    Hexagon nut - 5100012547×2
  • 205100079064Not stocked
    cable harness×1
  • 215100079053Not stocked
    cable support sleeve×2
  • 305100079016Not stocked
    tail light×2
  • 315100013523
    $1.57
    Washer - 5100013523×4
  • 325100017998
    $1.57
    hexagonal nut - 5100017998×4
  • 335100079019Not stocked
    retaining sheet×2
  • 355100079022Not stocked
    metal plate×2
  • 365100011744
    $2.71
    Fillister head screw - 5100011744×4
  • 405100079024Not stocked
    holder×1
  • 415100079029Not stocked
    steering column switch×1
  • 505100079057Not stocked
    wire harness lighting×1
  • 555100012613
    $1.57
    Hexagon screw - 5100012613×1
  • 565100013421
    $1.57
    Washer - 5100013421×2
  • 575100053004
    $1.57
    safety nut - 5100053004×1
  • 605100073112Not stocked
    relay×3
  • 645100079031Not stocked
    circuit board×1
  • 655100033260Not stocked
    cheese-head screw×4
  • 665100022895
    $2.18
    serrated lock washer - 5100022895×4
