RC110 CAB

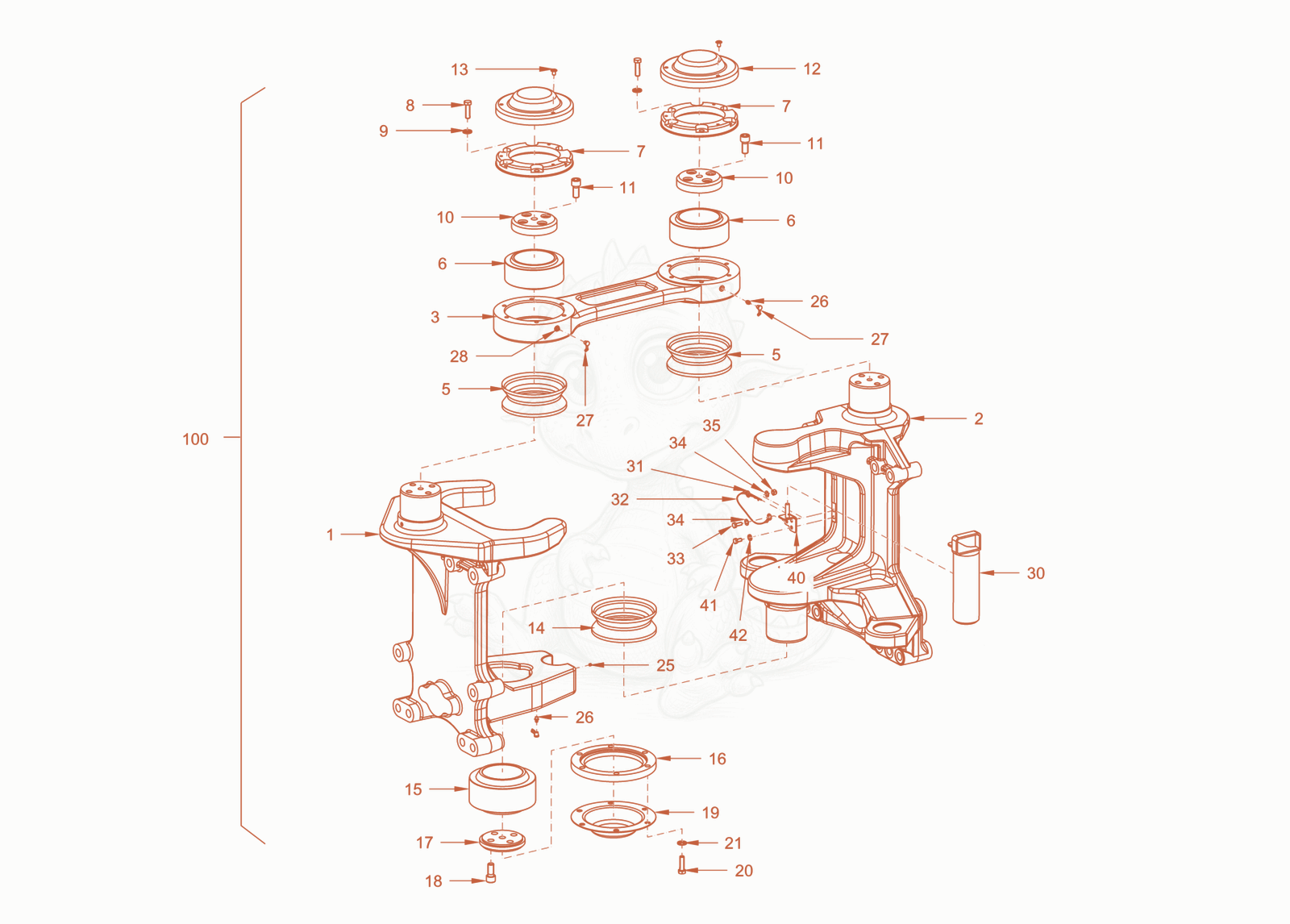

RC110CAB centre pivot assembly Diagram
- 15100074711Not stockedcentre pivot assembly×1
- 25100074718Not stockedcentre pivot assembly×1
- 35100074723Not stockedpendulum suspension×1
- 55100074753Not stockedsealing ring×2
- 65100074759Not stockedradial rod end bearing×2
- 75100074763Not stockedring×2
- hexagon screw - 5100022849×12
- Locking washer - 5100012968×12
- 105100074770Not stockedclamping piece×2
- 115100074776Not stockedcheese-head screw×8
- 125100074796Not stockedbearing cap×2
- 135100074609Not stockedfillister head screw×6
- 145100078853Not stockedrubber piece×1
- 155100074799Not stockedradial rod end bearing×1
- 165100074811Not stockedbearing cap×1
- 175100074817Not stockedlid×1
- 185100074776Not stockedcheese-head screw×4
- 195100074823Not stockedlid×1
- hexagon screw - 5100022849×6
- Locking washer - 5100012968×6
- 255100074844Not stockedthreaded pin×1
- Greasing nipple - 5100012479×2
- 275100074854Not stockedcap×3
- Greasing nipple - 5100012481×1
- 305100074866Not stockedbolt×1
- w-clip - 5100023036×1
- Safety cord - 5100011590×1
- Hexagon screw - 5100012517×1
- Washer - 5100012938×2
- safety nut - 5100053004×1
- 405100074875Not stockedholder×1
- Hexagon screw - 5100012515×2
- Locking washer - 5100012966×2
- 1005100074688Not stockedcentre pivot assembly×1
