RC110 CAB

RC110CAB air conditioner Diagram

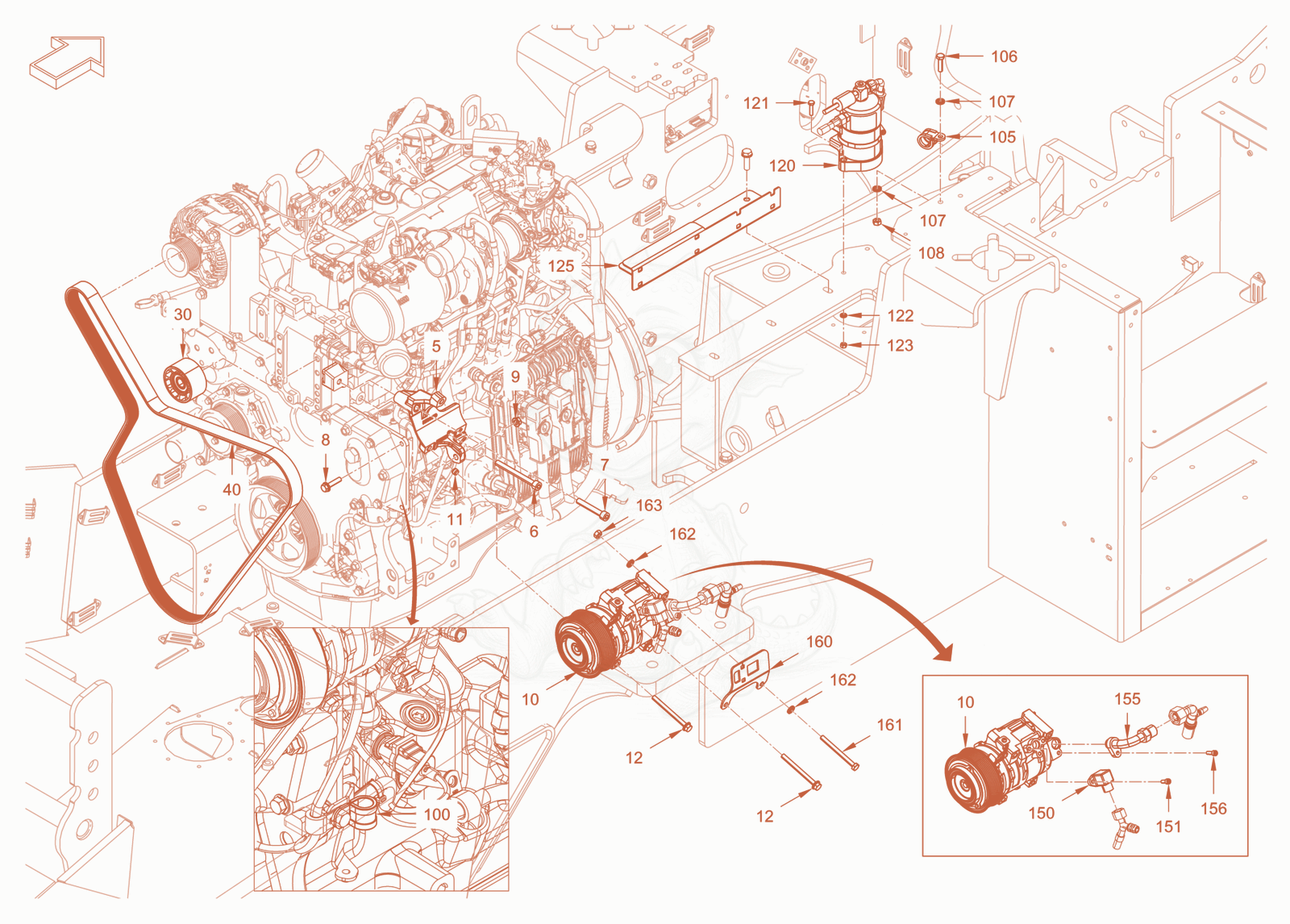

Exploded parts diagram of the air conditioner of a Wacker Neuson RC110CAB, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 55100079081Not stocked
    console×1
  • 65100079084Not stocked
    screw×1
  • 75100079087Not stocked
    screw×1
  • 85100079092Not stocked
    screw×1
  • 95100079095Not stocked
    flange nut×1
  • 105100075149Not stocked
    compressor×1
  • 115100079098Not stocked
    clamping sleeve×2
  • 125100079103Not stocked
    screw×3
  • 305100075031Not stocked
    belt pulley×1
  • 405100075053Not stocked
    v-belt×1
  • 1005100034910
    $12.69
    pipe clip - 5100034910×1
  • 1055100011469
    $36.39
    Pipe clip - 5100011469×1
  • 1065100013510
    $1.57
    Hexagon screw - 5100013510×1
  • 1075100012966
    $1.57
    Locking washer - 5100012966×2
  • 1085100012546
    $1.57
    Hexagon nut - 5100012546×1
  • 1205100046746Not stocked
    dryer×1
  • 1215100013397
    $1.57
    Hexagon screw - 5100013397×2
  • 1225100012965
    $3.01
    Locking washer - 5100012965×2
  • 1235100012545
    $1.57
    Hexagon nut - 5100012545×2
  • 1255100074773Not stocked
    cover sheet×1
  • 1505100074697Not stocked
    hose fitting×1
  • 1515100011443
    $1.57
    Cheese-head screw - 5100011443×2
  • 1555100074703Not stocked
    hose fitting×1
  • 1565100012723
    $1.57
    Cheese-head screw - 5100012723×1
  • 1605100074714Not stocked
    metal plate×1
  • 1615100040596
    $1.28
    hexagon screw - 5100040596×1
  • 1625100012966
    $1.57
    Locking washer - 5100012966×2
  • 1635100012546
    $1.57
    Hexagon nut - 5100012546×1
