RC110 CAB

RC110CAB electrical system Diagram

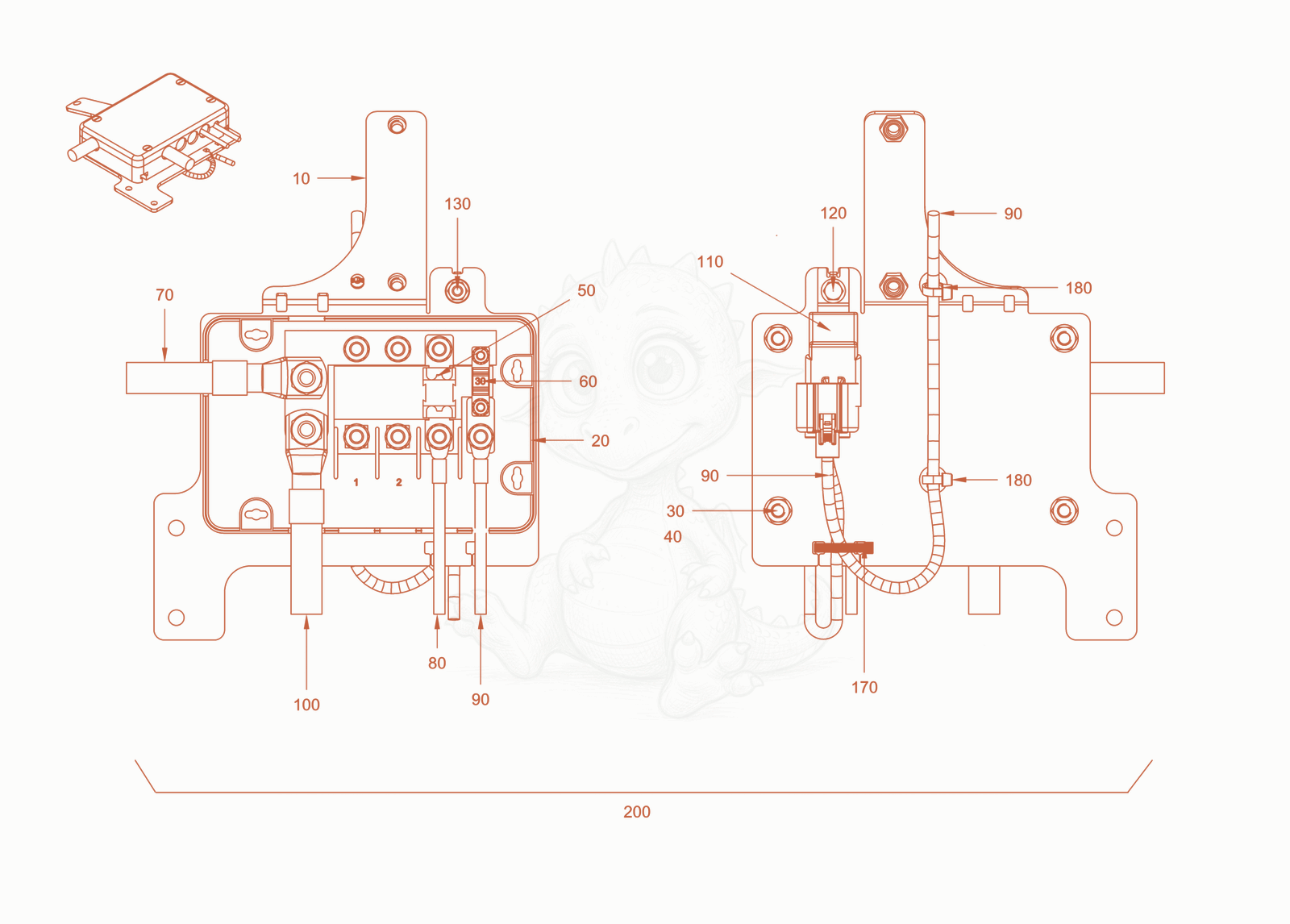

Exploded parts diagram of the electrical system of a Wacker Neuson RC110CAB, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 105100075092Not stocked
    holder×1
  • 205100023097
    $556.97
    fuse socket - 5100023097×1
  • 305100012938
    $1.57
    Washer - 5100012938×4
  • 405100012546
    $1.57
    Hexagon nut - 5100012546×4
  • 505100075096Not stocked
    fuse×1
  • 605100023209
    $8.10
    blade-type fuse - 5100023209×1
  • 705100075098Not stocked
    wire harness starter×1
  • 805100075103Not stocked
    wire harness alternator×1
  • 905100075108Not stocked
    cable harness×1
  • 1005100075111Not stocked
    battery cable×1
  • 1105100023218
    $168.26
    relay - 5100023218×1
  • 1205100023164
    $3.88
    safety screw - 5100023164×1
  • 1305100023132
    $1.57
    hexagonal nut - 5100023132×1
  • 1705100013573
    $1.49
    Wire fastener - 5100013573×1
  • 1805100074531Not stocked
    wire fastener×2
  • 2005100075059Not stocked
    cable harness×1
