Compactor RC110p US Rops

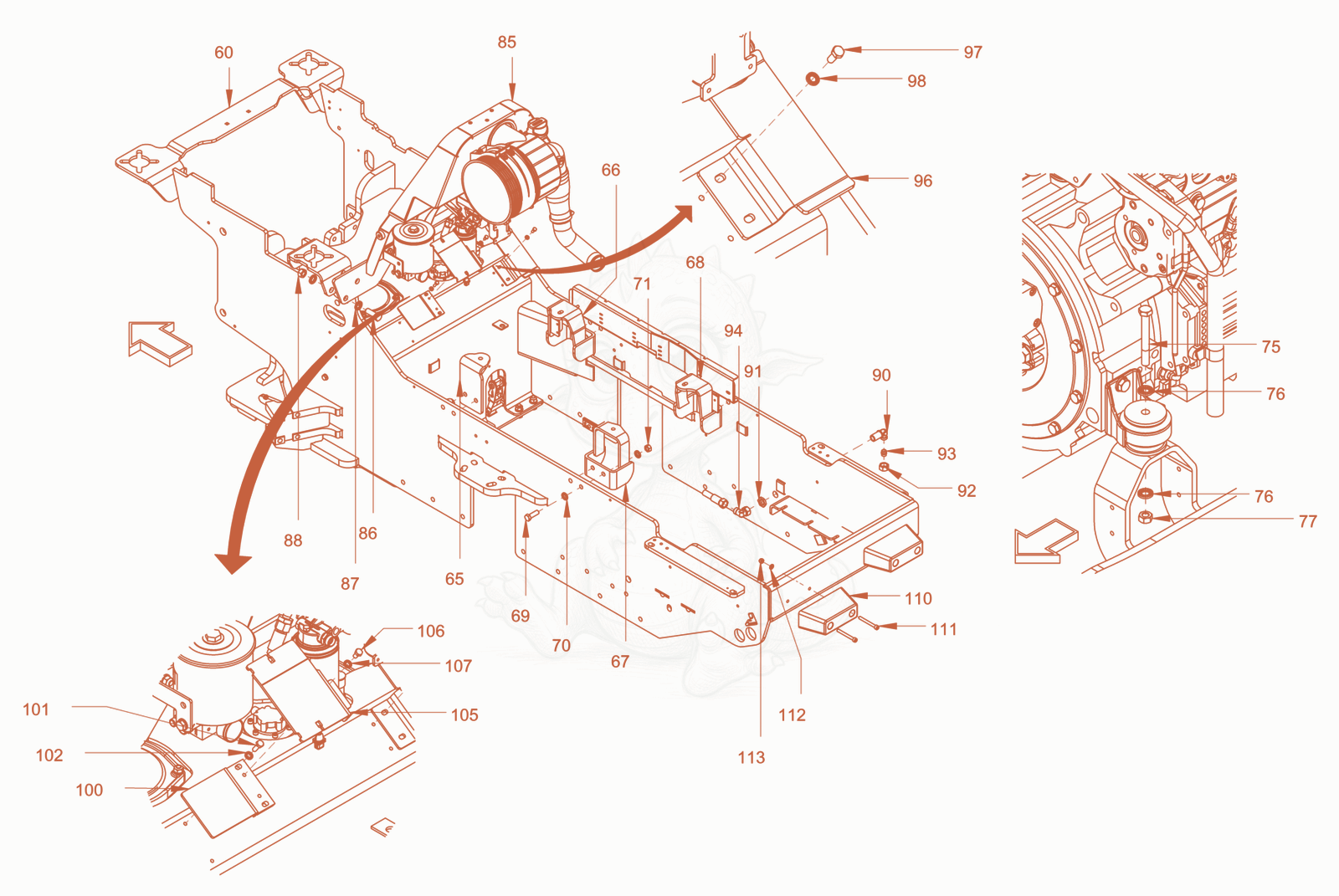

RC110PUSROPS main frame and assemblies Diagram

Exploded parts diagram of the main frame and assemblies of a Wacker Neuson RC110PUSROPS, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 605100064013Not stocked
    frame×1
  • 655100034673Not stocked
    holder×1
  • 665100034674
    $228.27
    engine mounting foot - 5100034674×1
  • 675100034675
    $223.43
    engine mounting foot - 5100034675×1
  • 685100064036Not stocked
    engine mounting foot×1
  • 695100022932
    $8.38
    hexagon screw - 5100022932×8
  • 705100012969
    $3.15
    Locking washer - 5100012969×16
  • 715100012405
    $3.37
    Hexagon nut - 5100012405×8
  • 755100034677
    $3.88
    hexagon screw - 5100034677×4
  • 765100013456
    $1.66
    Washer - 5100013456×8
  • 775100035091
    $2.44
    safety nut - 5100035091×4
  • 855100034678Not stocked
    holder×1
  • 865100064060Not stocked
    fit screw×4
  • 875100034679
    $1.66
    Washer - 5100034679×8
  • 885100022923
    $3.32
    hexagonal nut - 5100022923×4
  • 905100034680
    $56.69
    bulkhead elbow - 5100034680×1
  • 915100034681
    $9.47
    hexagonal nut - 5100034681×1
  • 925100034682
    $4.72
    union nut - 5100034682×1
  • 935100034683
    $9.64
    filler cap - 5100034683×1
  • 945100022890
    $61.05
    elbow adjustable - 5100022890×1
  • 965100063900Not stocked
    metal plate×1
  • 975100012517
    $1.57
    Hexagon screw - 5100012517×2
  • 985100012966
    $1.57
    Locking washer - 5100012966×2
  • 1005100034685Not stocked
    holder×1
  • 1015100012613
    $1.57
    Hexagon screw - 5100012613×2
  • 1025100012966
    $1.57
    Locking washer - 5100012966×2
  • 1055100034686Not stocked
    holder×1
  • 1065100012515
    $1.49
    Hexagon screw - 5100012515×2
  • 1075100012966
    $1.57
    Locking washer - 5100012966×2
  • 1105100063868Not stocked
    rubber buffer×2
  • 1115100048632
    $3.71
    cheese-head screw - 5100048632×4
  • 1125100012967
    $1.57
    Locking washer - 5100012967×4
  • 1135100063880Not stocked
    safety nut×4
