Compactor RC110p US Rops

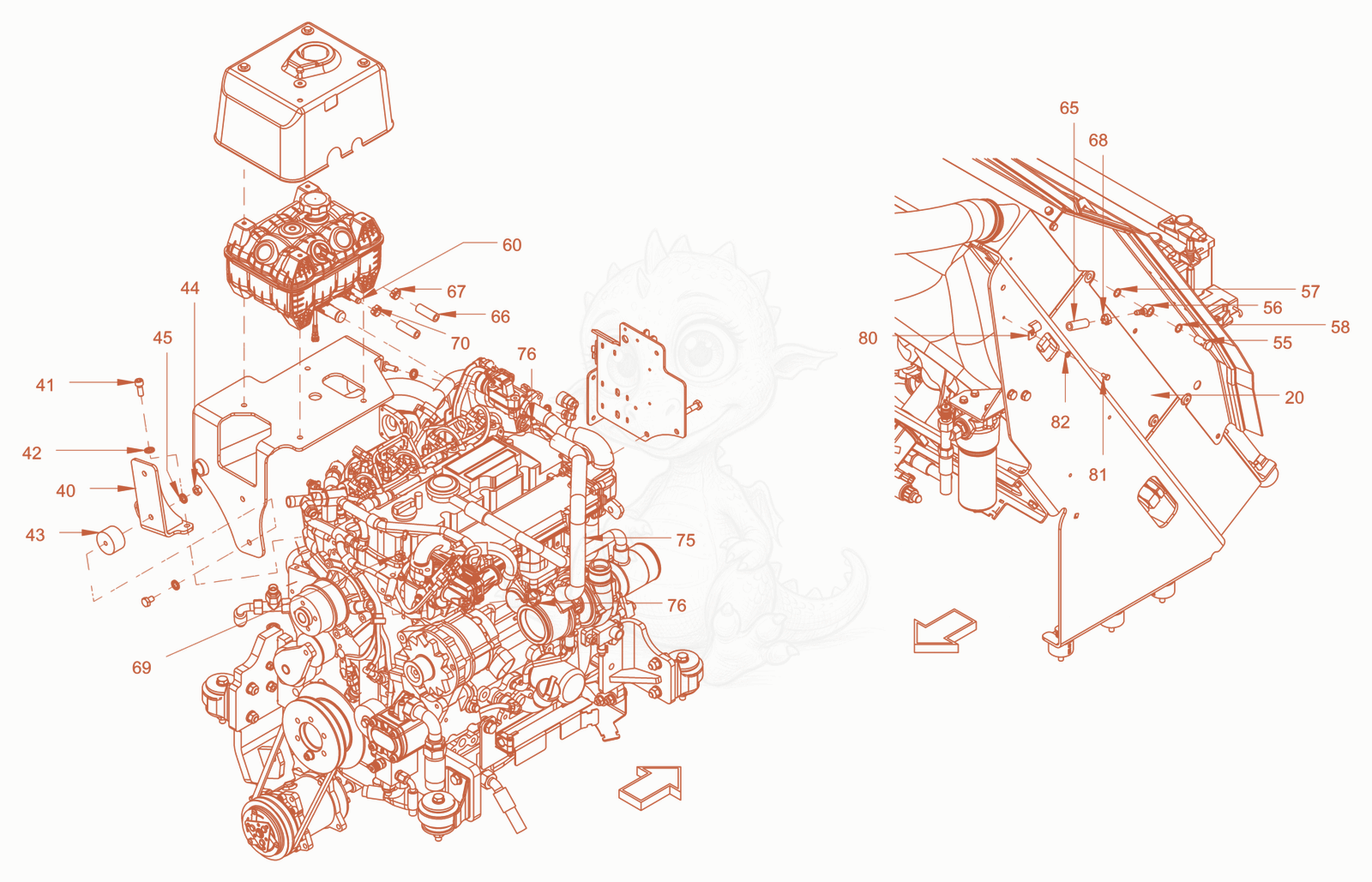

RC110PUSROPS cooling (engine/hydraulic oil) Diagram
- water cooler - 5100035008×1
- holder system - 5100035012×1
- Cheese-head screw - 5100013463×3
- Locking washer - 5100012967×3
- Rubber metal buffer - 5100011734×4
- Hexagon nut - 5100011533×4
- Locking washer - 5100012967×4
- hollow-core screw - 5100035016×1
- Hose shank banjo - 5100011667×1
- sealing washer - 5100035017×1
- Sealing ring - 5100013000×1
- nozzle - 5100024976×1
- Cooling-water hose - 5100013217×1.2
- Cooling-water hose - 5100013217×0.65
- hose clamp - 5100035018×1
- hose clamp - 5100035019×1
- hose clamp - 5100035019×1
- hose clamp - 5100035018×1
- hose - 5100035020×1
- hose clamp - 5100035021×2
- mounting clip - 5100035022×1
- Hexagon screw - 5100012572×1
- Locking washer - 5100012965×1
