Compactor RC110p US Rops

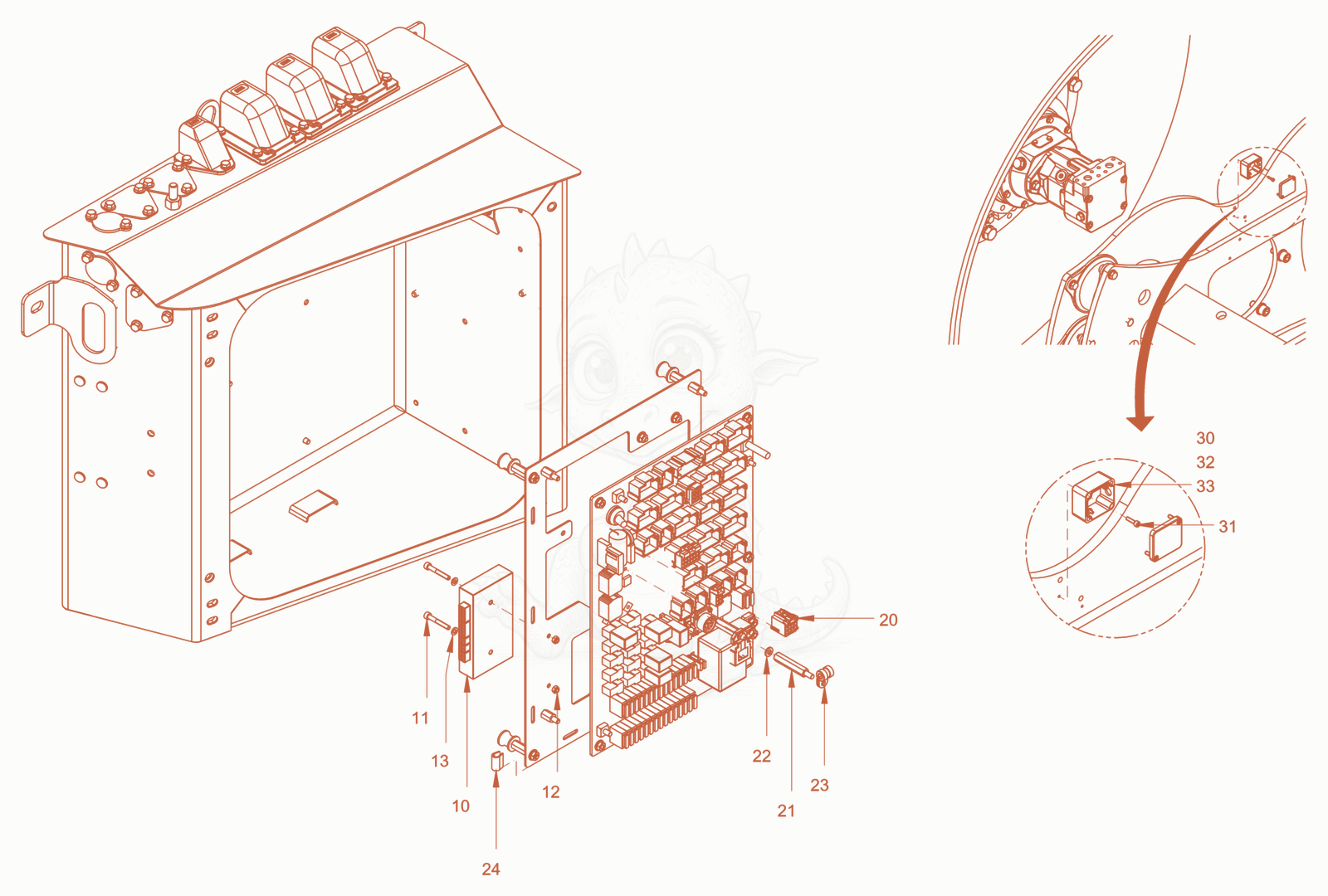

RC110PUSROPS compactometer Diagram

Exploded parts diagram of the compactometer of a Wacker Neuson RC110PUSROPS, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 105100033253Not stocked
    calculator×1
  • 115100033254
    $1.49
    cheese-head screw - 5100033254×2
  • 125100011599
    $3.01
    Hexagon nut - 5100011599×2
  • 135100012936
    $2.27
    Washer - 5100012936×2
  • 205100063963Not stocked
    cable harness×1
  • 215100063964Not stocked
    bolt×1
  • 225100012937
    $2.53
    Washer - 5100012937×1
  • 235100063966Not stocked
    pipe clip×1
  • 245100013412
    $22.18
    Edge protection - 5100013412×0.04
  • 305100063968Not stocked
    cable harness×1
  • 315100013606
    $1.49
    Cheese-head screw - 5100013606×2
  • 325100013573
    $1.49
    Wire fastener - 5100013573×10
  • 335100013429
    $1.18
    Wire fastener - 5100013429×20
