Compactor RC110p US Rops

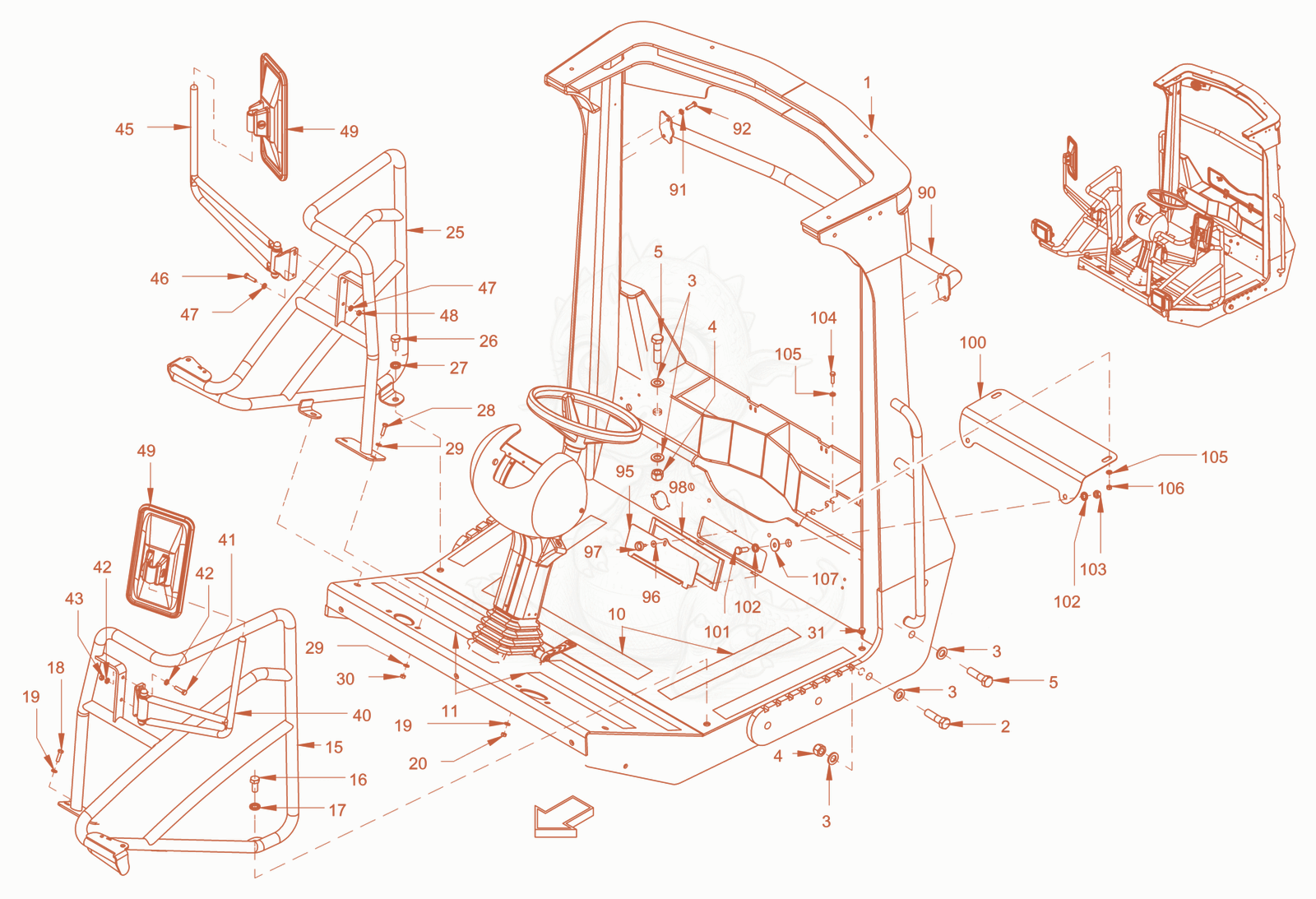

RC110PUSROPS roll over protection Diagram
- roll over protection - 5100034810×1
- hexagon screw - 5100022908×6
- Washer - 5100034679×22
- hexagonal nut - 5100022923×10
- hexagon screw - 5100034811×4
- anti-slip covering - 5100034812×7
- anti-slip covering - 5100034813×2
- stay bar - 5100034814×1
- hexagon screw - 5100034690×2
- Locking washer - 5100012969×2
- Hexagon screw - 5100013510×2
- Locking washer - 5100012966×4
- Hexagon nut - 5100012546×2
- stay bar - 5100034815×1
- hexagon screw - 5100034690×2
- Locking washer - 5100012969×2
- Hexagon screw - 5100013510×2
- Locking washer - 5100012966×4
- Hexagon nut - 5100012546×2
- Filler cap - 5100011537×2
- Stay bar - 5100011539×1
- Hexagon screw - 5100013510×2
- Locking washer - 5100012966×4
- Hexagon nut - 5100012546×2
- Stay bar - 5100011540×1
- Hexagon screw - 5100013510×2
- Locking washer - 5100012966×4
- Hexagon nut - 5100012546×2
- Mirror - 5100011541×2
- stay bar - 5100034816×1
- Locking washer - 5100012966×4
- Hexagon screw - 5100013510×4
- 955100034817Not stockedmetal plate×1
- Washer - 5100013523×1
- Knurled head screw - 5100013604×1
- 985100046875Not stockedsealing tape×0.5
- 1005100034818Not stockedmetal plate×1
- Hexagon screw - 5100012621×2
- Locking washer - 5100012968×4
- Hexagon nut - 5100012548×2
- Hexagon screw - 5100013510×2
- Washer - 5100013094×4
- safety nut - 5100053004×2
- washer - 5100034819×2
