Compactor RC110p US Rops

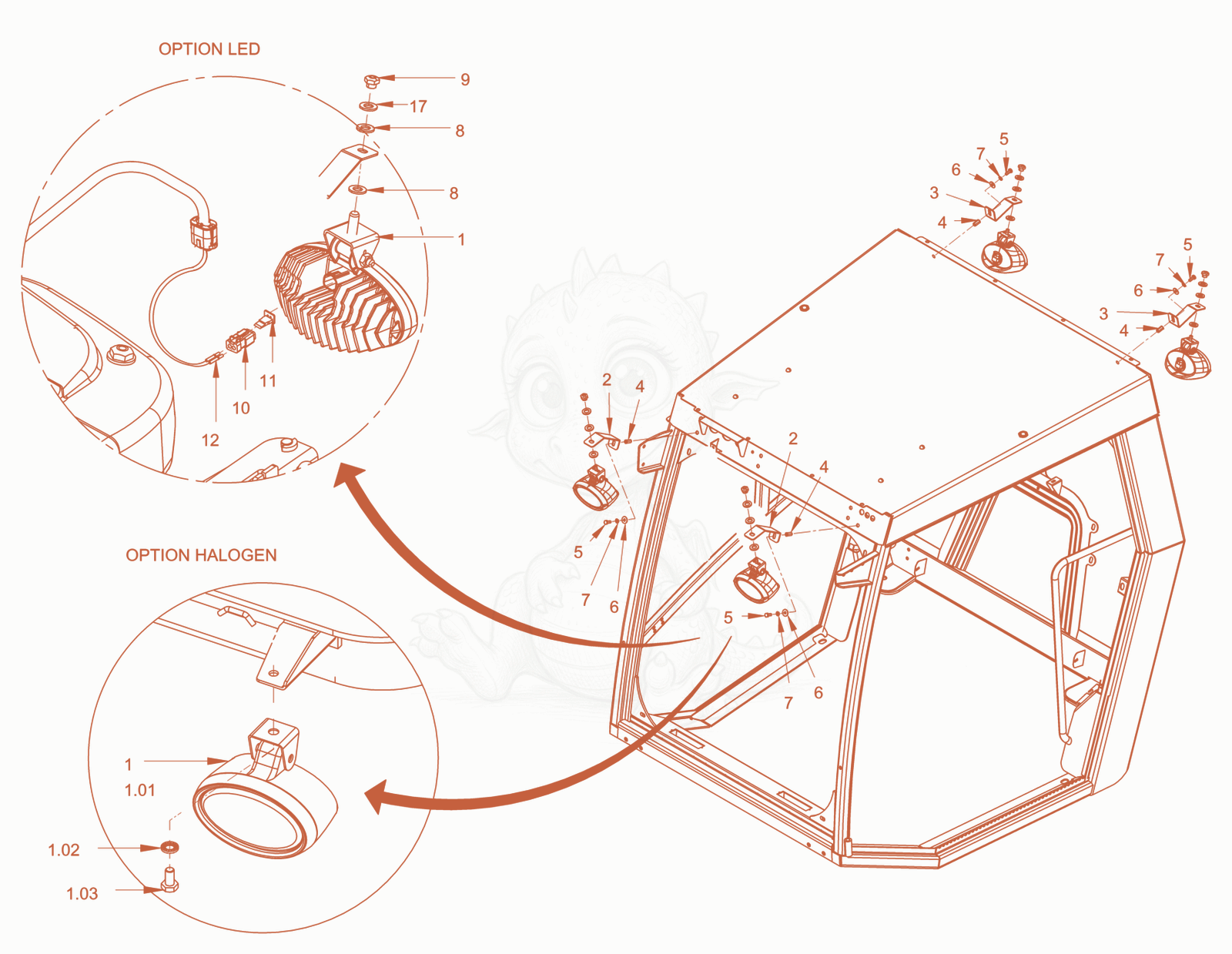

RC110PUSROPS additional lighting Diagram

Exploded parts diagram of the additional lighting of a Wacker Neuson RC110PUSROPS, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100011462
    $2.88
    Washer - 5100011462Unknown×4
  • 15100011479
    $1.57
    Hexagon screw - 5100011479Unknown×4
  • 15100012620
    $172.44
    Lamp - 5100012620Unknown×1
  • 15100035699
    $343.16
    working light - 5100035699Unknown×4
  • 15100063942Not stocked
    working light×4
  • 25100046714Not stocked
    holder×2
  • 35100046715Not stocked
    holder×2
  • 45100046654Not stocked
    rivet×4
  • 55100046642Not stocked
    screw×4
  • 65100046655Not stocked
    washer×4
  • 75100046661Not stocked
    washer×4
  • 85100035694
    $2.84
    washer - 5100035694×8
  • 95100035695
    $40.04
    bushing - 5100035695×4
  • 105100035696
    $30.02
    plug - 5100035696×4
  • 115100035697
    $3.54
    fuse - 5100035697×4
  • 125100063944Not stocked
    contact pin×4
  • 175100013413
    $1.57
    Washer M16 - 5100013413×4
