Compactor RC110p US Rops

RC110PUSROPS electrical system Diagram

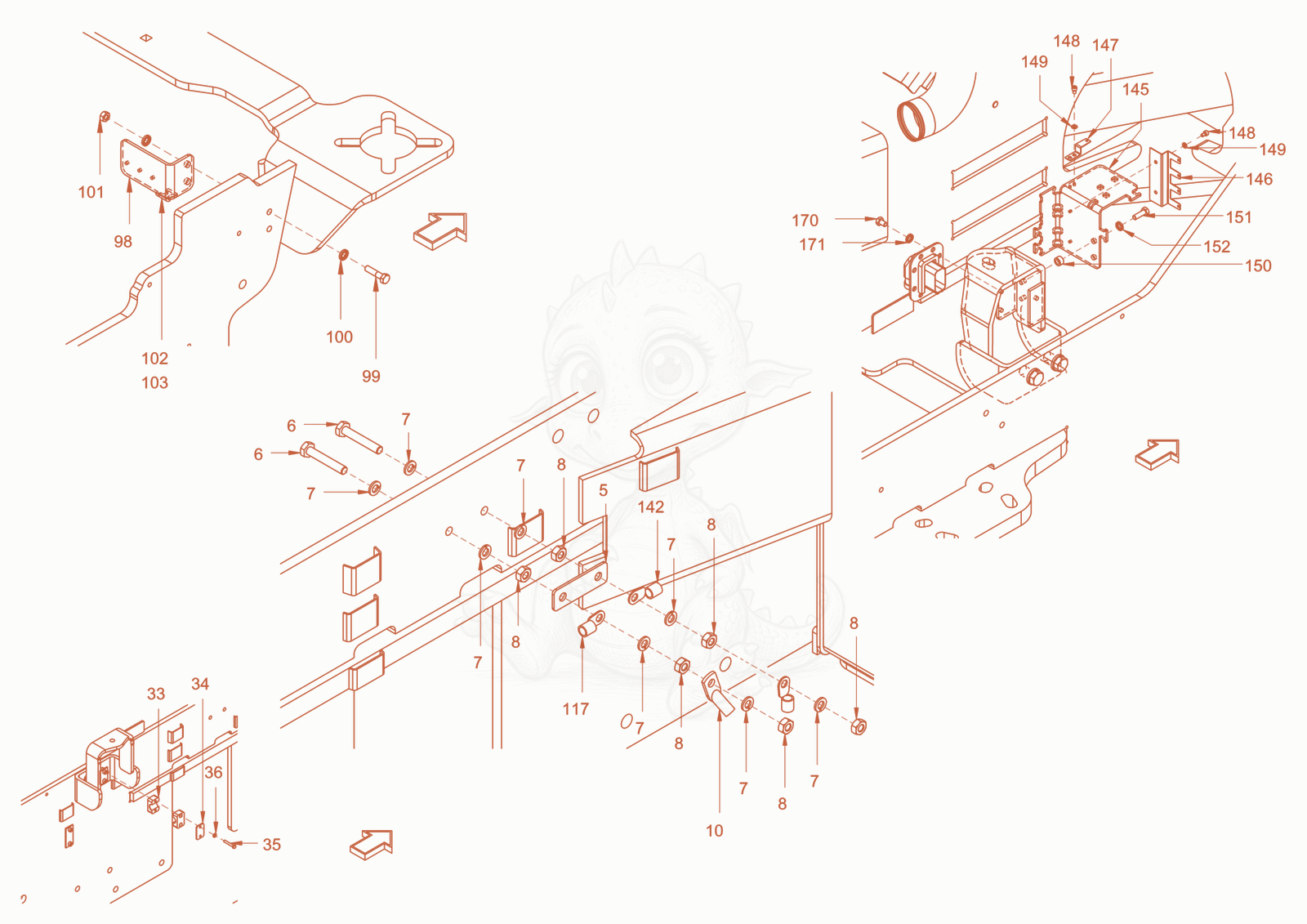

Exploded parts diagram of the electrical system of a Wacker Neuson RC110PUSROPS, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 55100035312Not stocked
    metal plate×1
  • 65100035313Not stocked
    hexagon screw×2
  • 75100011918
    $1.57
    Serrated lock washer - 5100011918×8
  • 85100023124
    $3.28
    hexagonal nut - 5100023124×6
  • 105100035306
    $124.36
    ground cable - 5100035306×1
  • 335100013469
    $1.57
    Half-clip - 5100013469×2
  • 345100013465
    $1.93
    Cover plate - 5100013465×1
  • 355100022951
    $1.22
    hexagon screw - 5100022951×2
  • 365100012965
    $3.01
    Locking washer - 5100012965×2
  • 985100035314
    $50.60
    metal plate - 5100035314×1
  • 995100035308
    $1.57
    hexagon screw - 5100035308×2
  • 1005100012966
    $1.57
    Locking washer - 5100012966×4
  • 1015100012546
    $1.57
    Hexagon nut - 5100012546×2
  • 1025100035316
    $4.72
    clip - 5100035316×3
  • 1035100035317
    $1.49
    fillister head screw - 5100035317×3
  • 1175100064055Not stocked
    battery cable×1
  • 1425100035237
    $167.51
    cable harness - 5100035237×1
  • 1455100035318Not stocked
    holder×1
  • 1465100035319Not stocked
    holder×1
  • 1475100035320Not stocked
    holder×1
  • 1485100035321
    $2.22
    cheese-head screw - 5100035321×4
  • 1495100012936
    $2.27
    Washer - 5100012936×4
  • 1505100011870
    $2.79
    Distance bush - 5100011870×2
  • 1515100013510
    $1.57
    Hexagon screw - 5100013510×2
  • 1525100012966
    $1.57
    Locking washer - 5100012966×2
  • 1705100035056
    $1.57
    hexagon screw - 5100035056×2
  • 1715100012966
    $1.57
    Locking washer - 5100012966×2
