Compactor RC110p US Rops

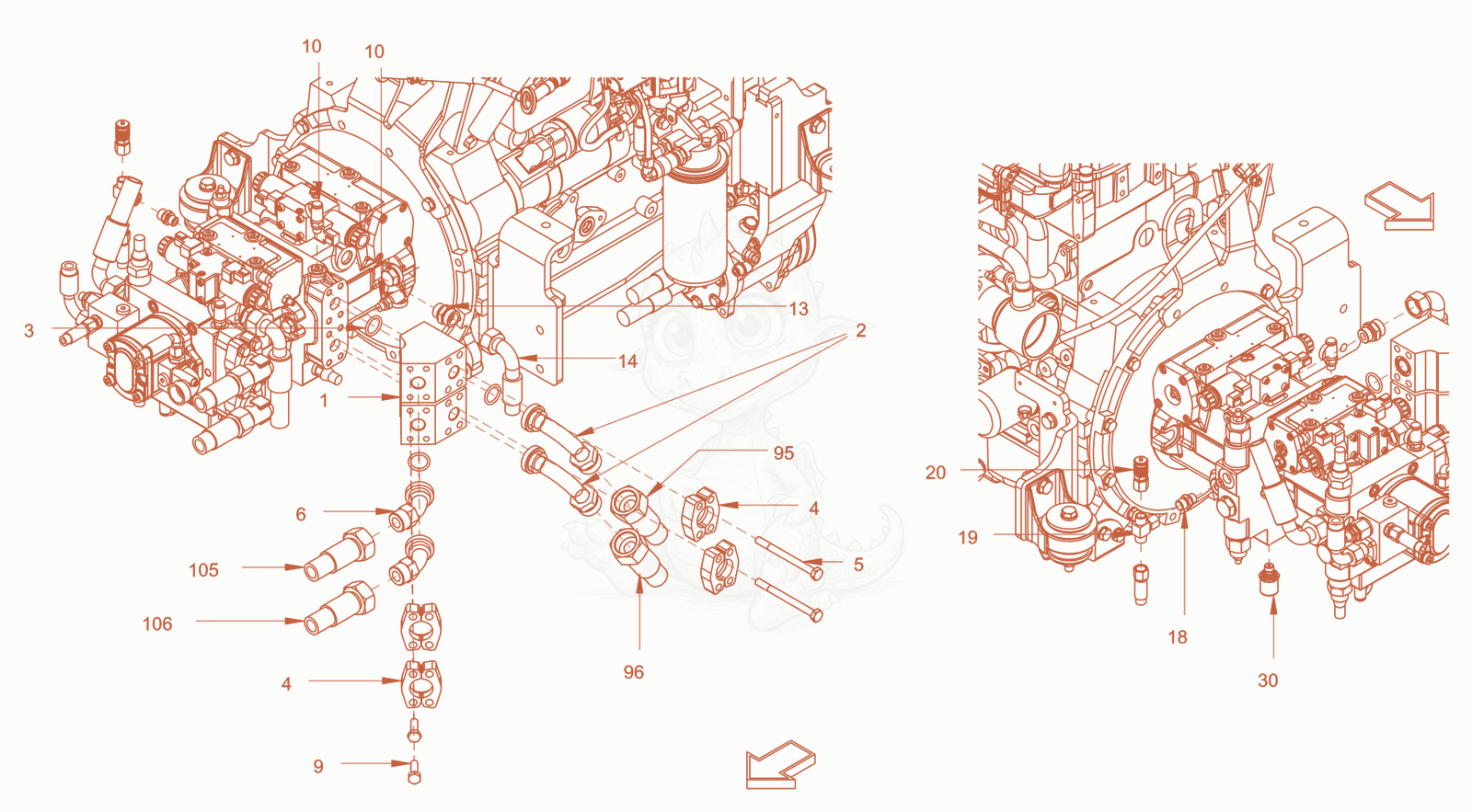

RC110PUSROPS advance drive Diagram
- connecting block - 5100035536×2
- pipe elbow - 5100035537×2
- O-ring seal - 5100013431×6
- Sae-flange half - 5100013430×8
- hexagon screw - 5100035538×8
- intermediate piece - 5100035539×2
- Cheese-head screw - 5100012781×8
- measuring connection - 5100035540×2
- straight screwed socket - 5100022898×1
- hose - 5100035541×1
- Straight screwed socket - 5100013578×1
- Elbow adjustable - 5100013532×1
- screw coupling - 5100035068×1
- pressure sensor - 5100035542×1
- hose - 5100035543×1
- hose - 5100035544×1
- hose - 5100035545×1
- hose - 5100035546×1
