Compactor RC110p US Rops

RC110PUSROPS electrical system Diagram

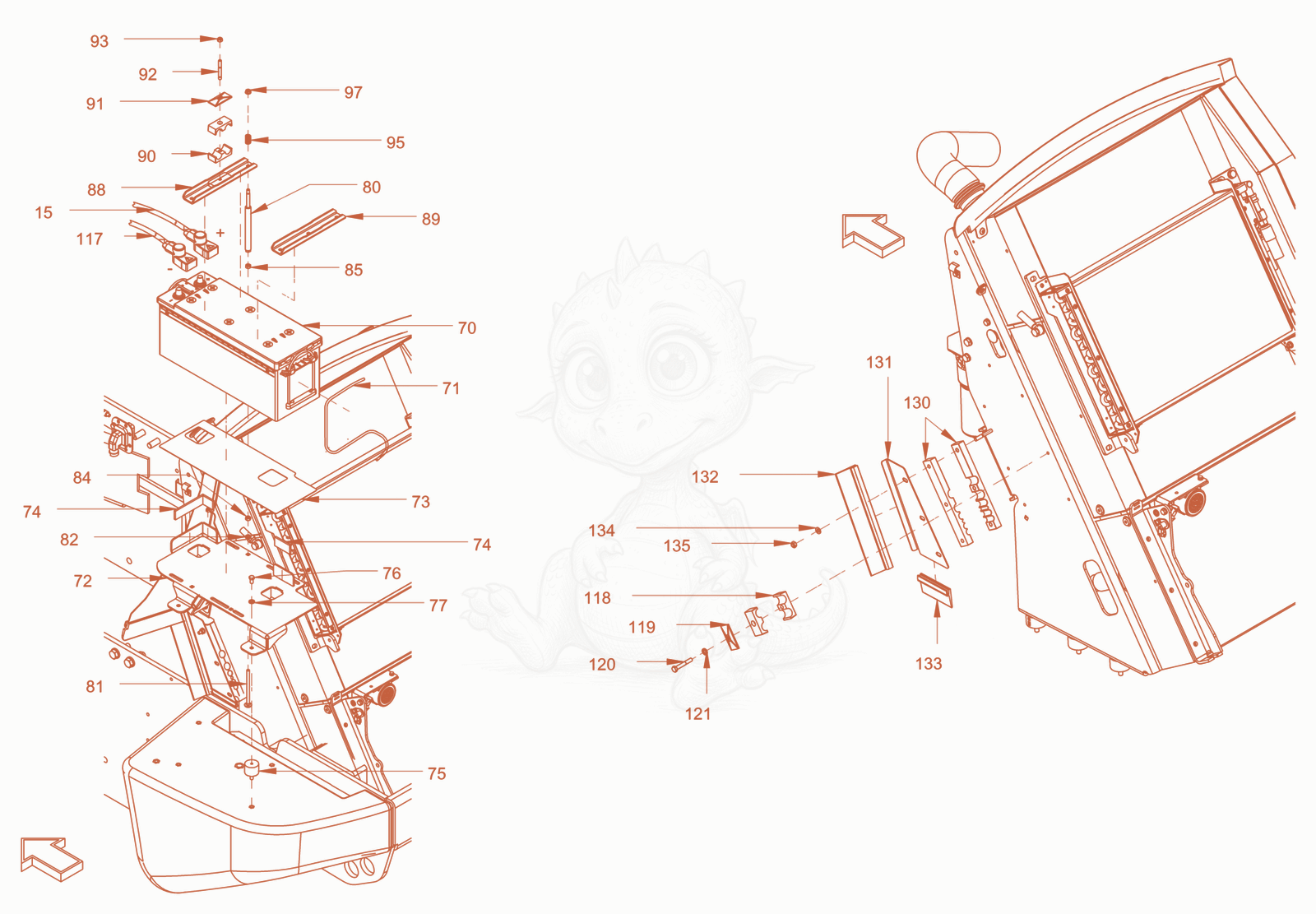

Exploded parts diagram of the electrical system of a Wacker Neuson RC110PUSROPS, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

155100035277
$396.44
battery cable - 5100035277×1
705100033170
$945.59
battery - 5100033170×1
715100035278Not stocked
hose×0.64
725100035279
$457.55
holder - 5100035279×1
735100035280
$27.23
supporting plate - 5100035280×1
745100025829
$13.04
sealing - 5100025829×0.25
755100035281
$24.55
rubber metal buffer - 5100035281×4
765100012515
$1.49
Hexagon screw - 5100012515×4
775100012966
$1.57
Locking washer - 5100012966×4
805100035282
$50.33
rod steel - 5100035282×4
815100035283
$4.93
mushroom head screw - 5100035283×4
825100012966
$1.57
Locking washer - 5100012966×4
845100012546
$1.57
Hexagon nut - 5100012546×4
855100012546
$1.57
Hexagon nut - 5100012546×4
885100035284
$45.13
metal plate - 5100035284×1
895100035285
$142.36
holder - 5100035285×1
905100035286
$9.01
half-clip - 5100035286×2
915100022942
$1.48
top cover - 5100022942×1
925100012946
$3.23
Stud bolt - 5100012946×1
935100053004
$1.57
safety nut - 5100053004×1
955100011819
$32.93
Compression spring - 5100011819×4
975100012534
$1.57
Hexagon nut - 5100012534×4
1175100064055Not stocked
battery cable×1
1185100035286
$9.01
half-clip - 5100035286×2
1195100022942
$1.48
top cover - 5100022942×1
1205100034803
$1.57
hexagon screw - 5100034803×1
1215100012966
$1.57
Locking washer - 5100012966×1
1305100035288Not stocked
cable clamp×2
1315100035289Not stocked
metal plate×1
1325100022973
$68.62
sealing profile - 5100022973×0.25
1335100022973
$68.62
sealing profile - 5100022973×0.1
1345100012938
$1.57
Washer - 5100012938×3
1355100053004
$1.57
safety nut - 5100053004×3
