Compactor RC110p US Rops

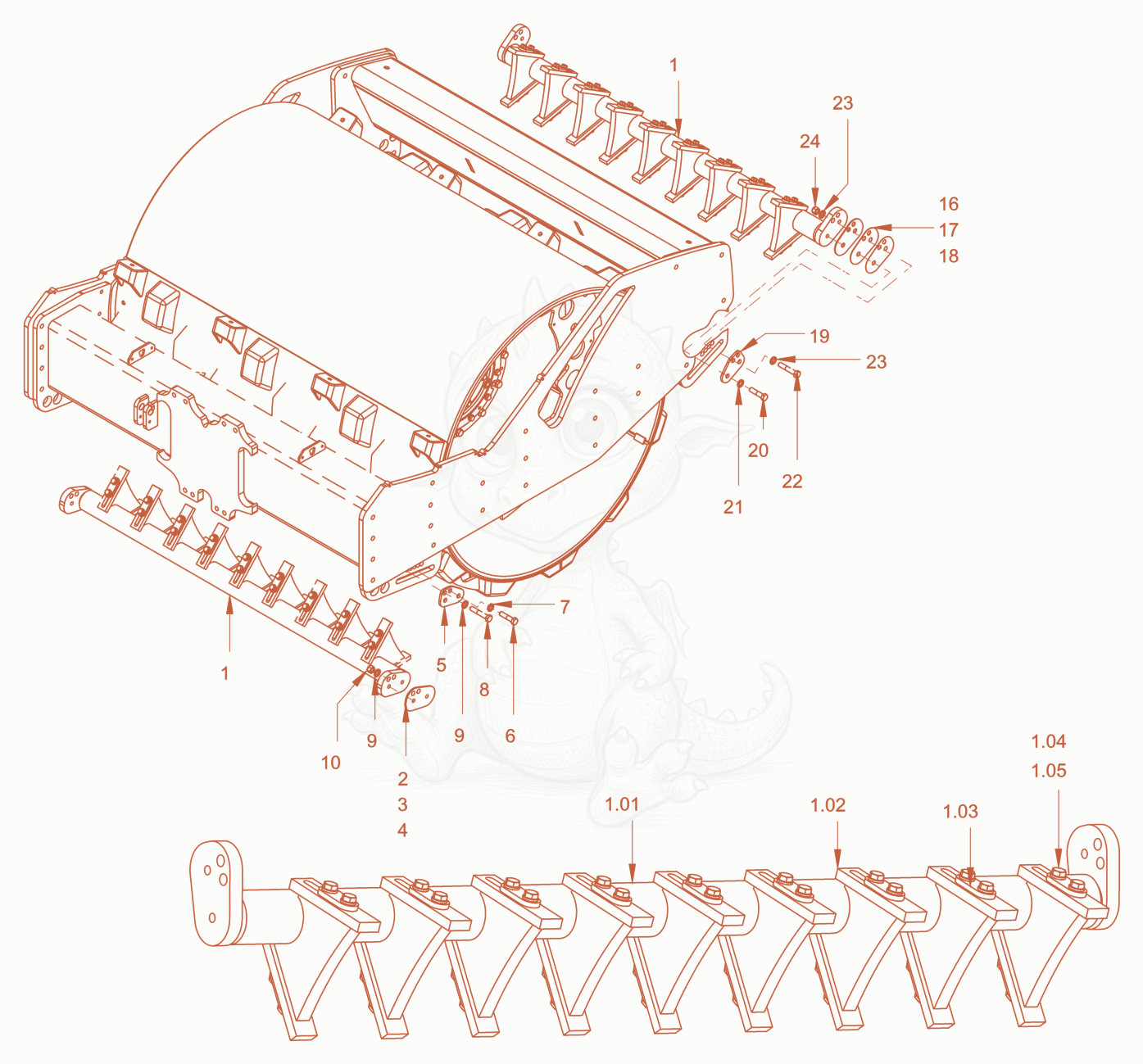

RC110PUSROPS v-scraper padfoot drum Diagram

Exploded parts diagram of the v-scraper padfoot drum of a Wacker Neuson RC110PUSROPS, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100012969
    $3.15
    Locking washer - 5100012969Unknown×36
  • 15100013232
    $7.99
    Hexagon screw - 5100013232Unknown×36
  • 15100035648
    $173.75
    scraper tooth - 5100035648Unknown×18
  • 15100063913Not stocked
    scraper×1
  • 15100063917Not stocked
    metal plate×18
  • 15100063919Not stocked
    scraper×2
  • 25100063920Not stocked
    metal plate×4
  • 35100063922Not stocked
    metal plate×4
  • 45100063926Not stocked
    metal plate×2
  • 55100063928Not stocked
    metal plate×2
  • 65100063930Not stocked
    hexagon screw×4
  • 75100012955
    $8.38
    Locking washer - 5100012955×4
  • 85100034671
    $20.69
    hexagon screw - 5100034671×2
  • 95100012955
    $8.38
    Locking washer - 5100012955×4
  • 105100022923
    $3.32
    hexagonal nut - 5100022923×2
  • 165100063920Not stocked
    metal plate×4
  • 175100063922Not stocked
    metal plate×4
  • 185100063926Not stocked
    metal plate×2
  • 195100063928Not stocked
    metal plate×2
  • 205100063930Not stocked
    hexagon screw×4
  • 215100012955
    $8.38
    Locking washer - 5100012955×4
  • 225100034671
    $20.69
    hexagon screw - 5100034671×2
  • 235100012955
    $8.38
    Locking washer - 5100012955×4
  • 245100022923
    $3.32
    hexagonal nut - 5100022923×2
