TH412

TH412(T01-01) fuel system Diagram

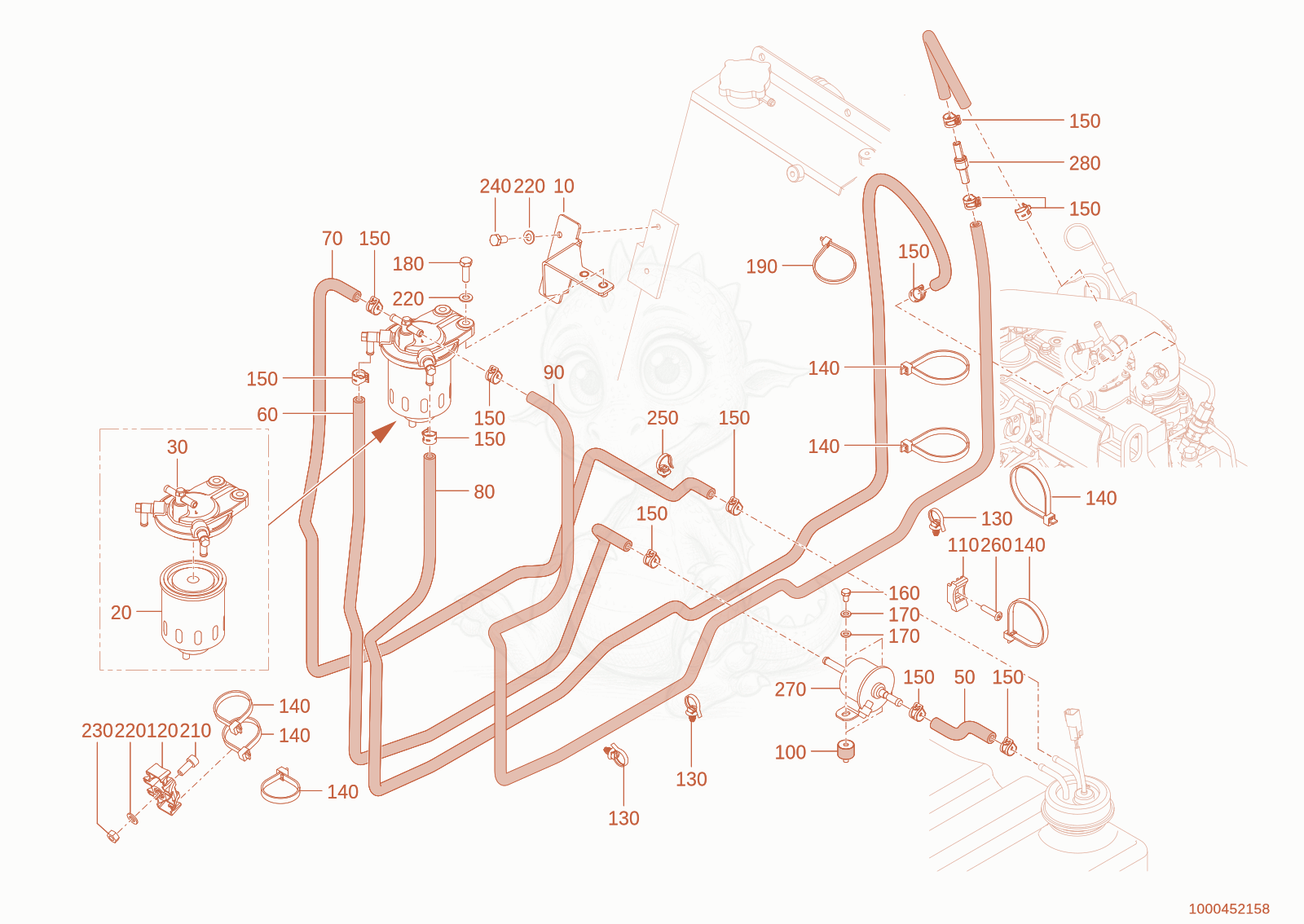

Exploded parts diagram of the fuel system of a Wacker Neuson TH412(T01-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 101000458716
    $83.70
    bracket - 1000458716×1
  • 101000509130Not stocked
    bracket×1
  • 101000525163
    $24.02
    adapter plate cooler - 1000525163×1
  • 201000379275Not stocked
    fuel filter×1
  • 301000452685Not stocked
    fuel filter×1
  • 501000527471
    $5.73
    Fuel hose 8,0x3,0mm - 1000527471×0.13
  • 601000527471
    $5.73
    Fuel hose 8,0x3,0mm - 1000527471×1.35
  • 701000527471
    $5.73
    Fuel hose 8,0x3,0mm - 1000527471×1.65
  • 801000527471
    $5.73
    Fuel hose 8,0x3,0mm - 1000527471×2.5
  • 901000527471
    $5.73
    Fuel hose 8,0x3,0mm - 1000527471×2.6
  • 1001000328578Not stocked
    rubber buffer×2
  • 1101000282739
    $2.12
    sockets - 1000282739×2
  • 1201000333302
    $2.72
    Base - 1000333302×1
  • 1301000375997Not stocked
    fixing bracket×9
  • 1401000193759
    $0.36
    cable strap - 1000193759×10
  • 1501000392134Not stocked
    clamp×12
  • 1601000085381
    $0.65
    HEX SCREW - 1000085381×2
  • 1701000015430Not stocked
    u-washer×4
  • 1801000015343Not stocked
    hex screw×2
  • 1901000193828
    $0.89
    cable strap - 1000193828×2
  • 2101000019593Not stocked
    cheese head screw×1
  • 2201000015431Not stocked
    washer×5
  • 2301000015406Not stocked
    hexagon nut×1
  • 2401000019136Not stocked
    hex screw×2
  • 2501000375997Not stocked
    fixing bracket×1
  • 2601000356352
    $2.30
    Rivet - 1000356352×2
  • 2701000368090Not stocked
    fuel pump×1
  • 2801000269379
    $45.77
    Diesel non return valve - 1000269379×1
