TH412

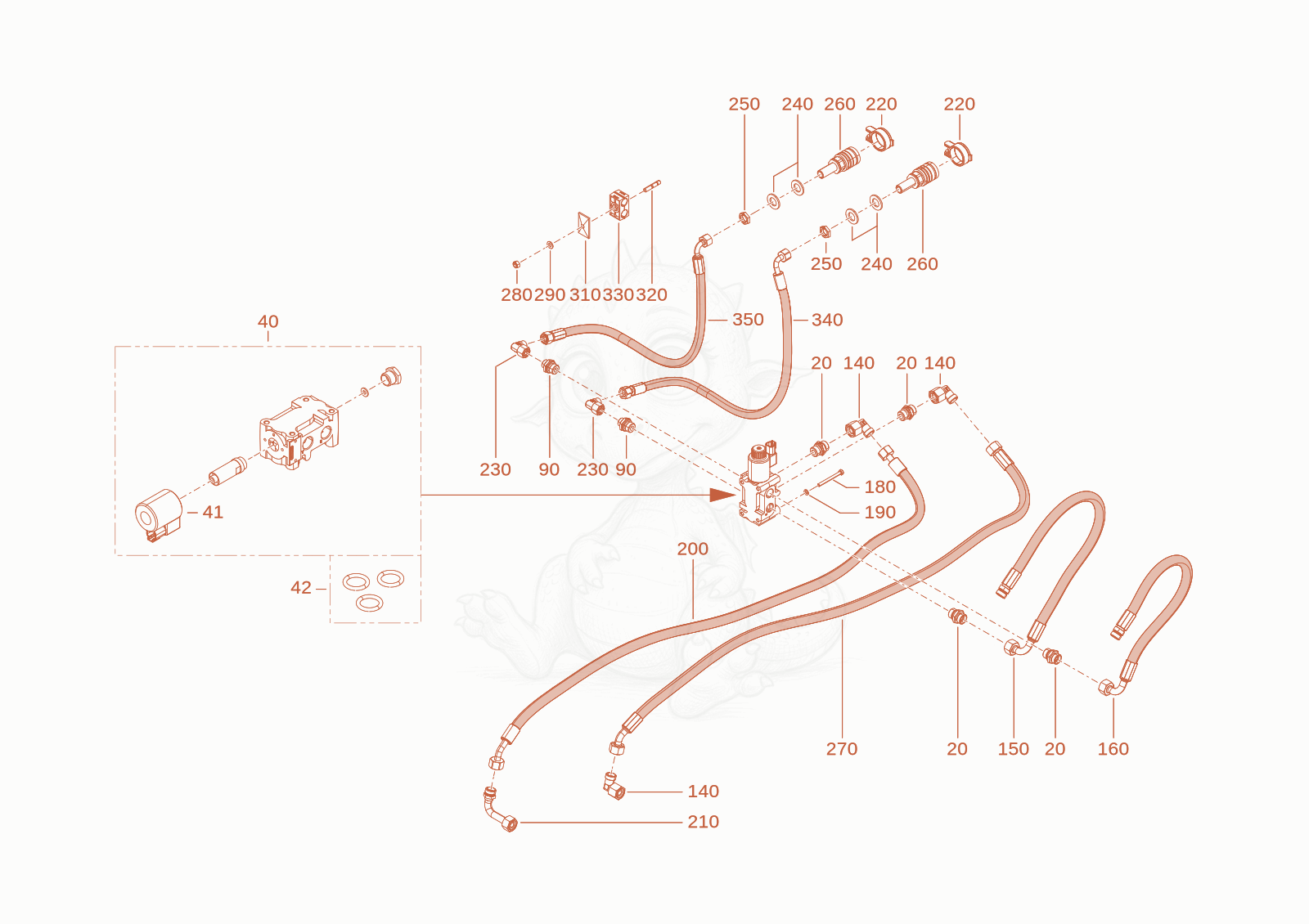

TH412(T01-01) AUXILARY HYDRAULICS Diagram

Exploded parts diagram of the AUXILARY HYDRAULICS of a Wacker Neuson TH412(T01-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 201000225980
    $4.51
    GES15L/R 1/2" GRAD.EINSCHR.ST. - 1000225980×4
  • 401000283339
    $557.17
    Drivevalve 1000283339×1
  • 411000292602
    $353.16
    magnet spool - 1000292602×1
  • 421000292601
    $528.83
    seal kit - 1000292601×1
  • 901000015493Not stocked
    screw joint×2
  • 1401000015512Not stocked
    screw joint×3
  • 1501000420090Not stocked
    Hose×1
  • 1601000420092Not stocked
    Hose×1
  • 1801000047253Not stocked
    hex screw×2
  • 1901000015430Not stocked
    u-washer×2
  • 2001000385126Not stocked
    Hose×1
  • 2101000036911Not stocked
    connection piece×1
  • 2201000226161
    $9.56
    dust cap - 1000226161×2
  • 2301000000573Not stocked
    screw joint×2
  • 2401000082625
    $0.83
    washer 19 - 1000082625×4
  • 2501000225972
    $2.38
    VERSCHR. 12L -KONTERMUTTER - 1000225972×2
  • 2601000226220
    $41.83
    PLUG COUPLING - 1000226220×2
  • 2701000432215Not stocked
    Hose×1
  • 2801000013022Not stocked
    hexagon nut×1
  • 2901000015431Not stocked
    washer×1
  • 3101000031230Not stocked
    cover plate×1
  • 3201000233926
    $1.99
    Stud M8x110-8.8 VZD - 1000233926×1
  • 3301000433702Not stocked
    clamp×1
  • 3401000447723Not stocked
    Hose×1
  • 3501000447664Not stocked
    Hose×1
