TH412

TH412(T01-01) lighting Diagram

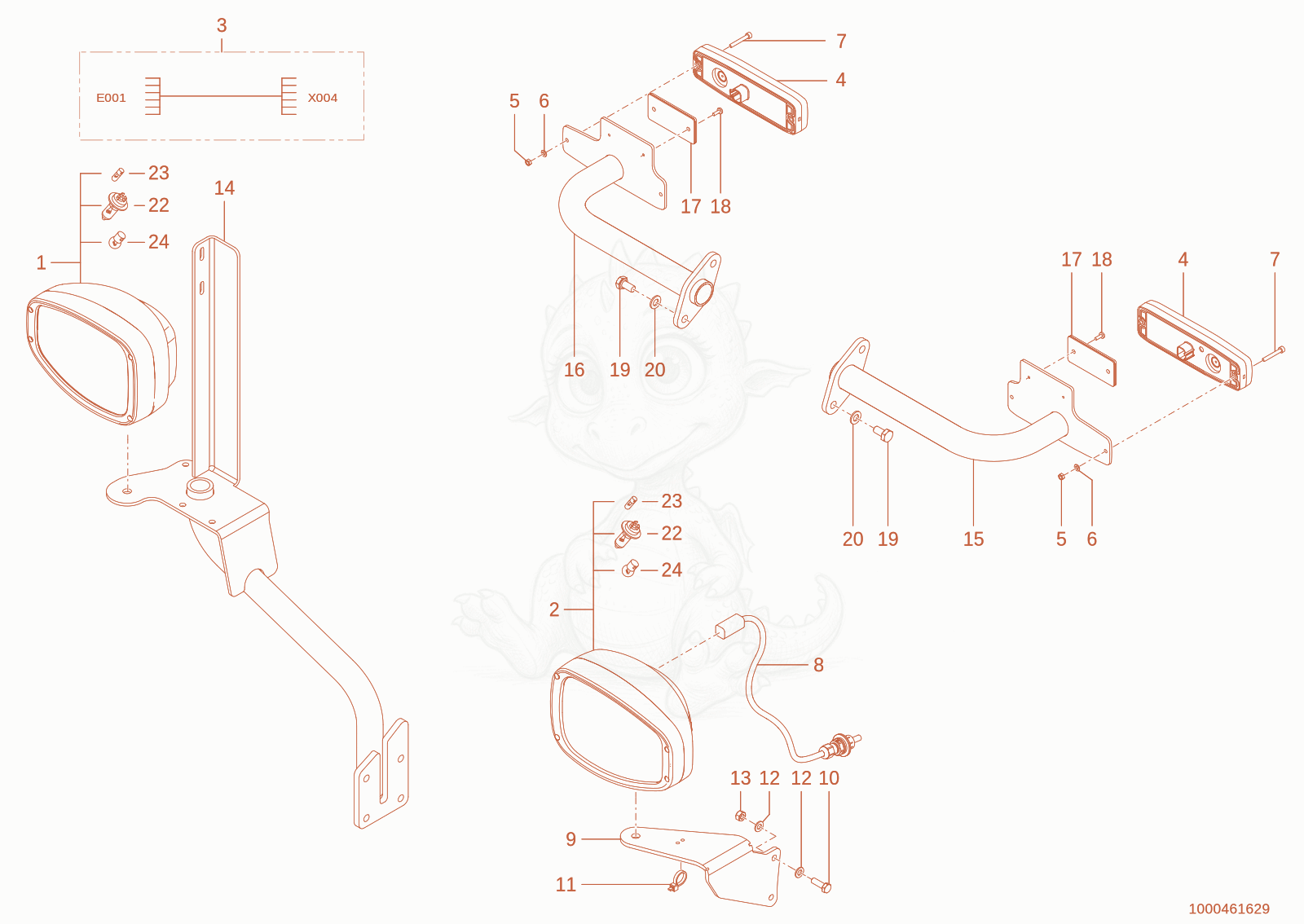

Exploded parts diagram of the lighting of a Wacker Neuson TH412(T01-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000411238
    $164.15
    headlights ABL 3800 H4 right - 1000411238×1
  • 21000411237
    $164.15
    headlights ABL 3800 H4 left - 1000411237×1
  • 31000411684Not stocked
    wiring harness lighting×1
  • 41000464486Not stocked
    rear light×2
  • 51000049083
    $0.97
    NUT-HEX - 1000049083×4
  • 61000094962
    $0.04
    washer A 5,3 A2C DIN125 - 1000094962×4
  • 71000082294
    $0.73
    cheese head screw - 1000082294×4
  • 81000420447Not stocked
    connection cable×1
  • 91000438651
    $97.88
    Bracket - 1000438651×1
  • 101000015343Not stocked
    hex screw×2
  • 111000193828
    $0.89
    cable strap - 1000193828×1
  • 121000015431Not stocked
    washer×4
  • 131000013022Not stocked
    hexagon nut×2
  • 141000429421Not stocked
    bracket headlight×1
  • 151000478753Not stocked
    bracket×1
  • 161000478754Not stocked
    bracket×1
  • 171000193660
    $6.70
    Reflector - 1000193660×2
  • 181000079429
    $0.70
    ovalhead screw - 1000079429×4
  • 191000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×4
  • 201000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×4
  • 211000465067Not stocked
    bracket×1
  • 221000430198Not stocked
    halogen bulb×2
  • 231000430195Not stocked
    bulb×2
  • 241000430197Not stocked
    halogen bulb×2
