TH412

TH412(T01-01) drive Diagram

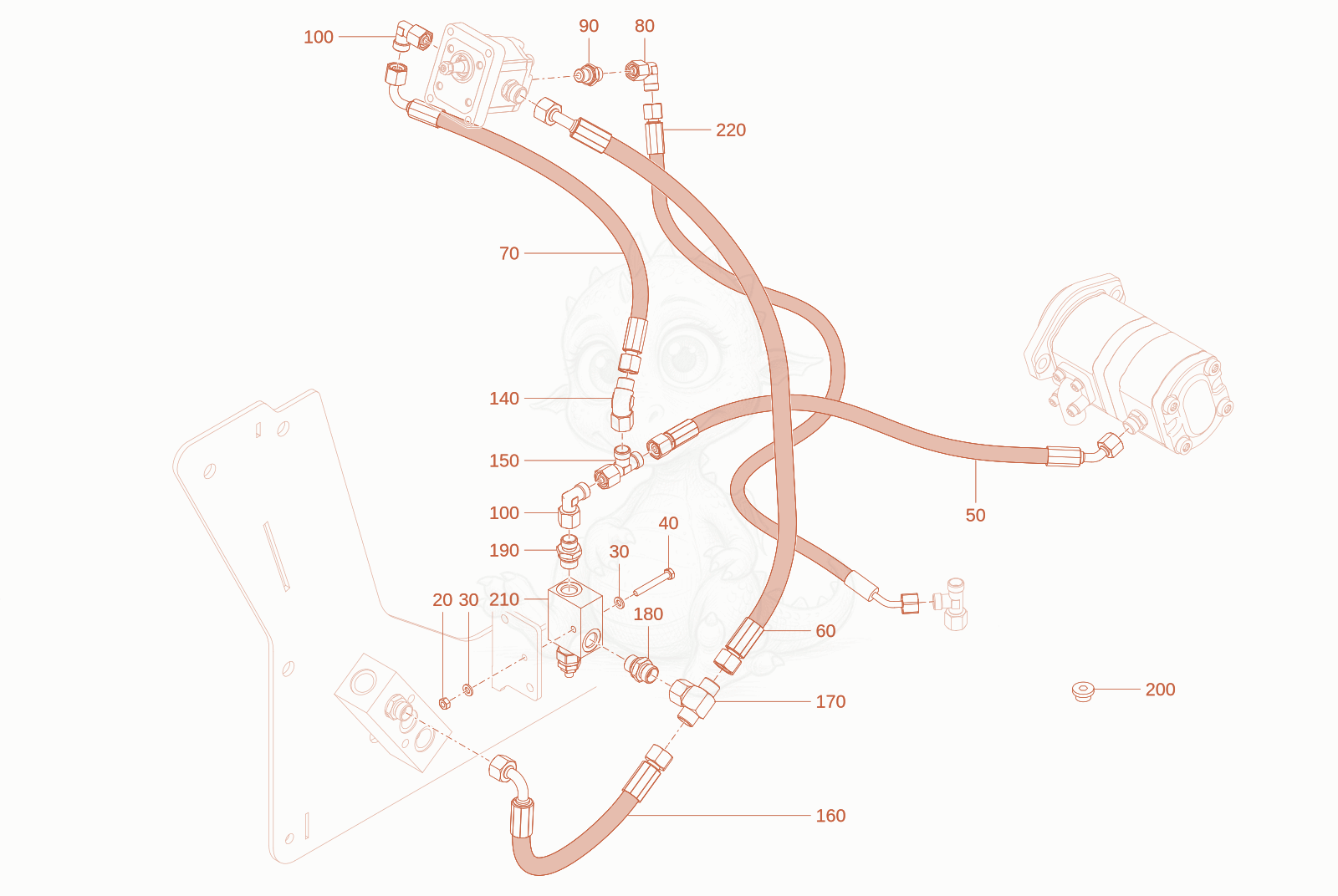

Exploded parts diagram of the drive of a Wacker Neuson TH412(T01-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 201000015405Not stocked
    hexagon nut×1
  • 301000015430Not stocked
    u-washer×2
  • 401000085310
    $0.78
    hex screw - 1000085310×1
  • 501000432202Not stocked
    Hose×1
  • 601000432201Not stocked
    Hose×1
  • 701000429690Not stocked
    Hose×1
  • 801000000542
    $11.08
    EW08LOMD - 1000000542×1
  • 901000015488Not stocked
    screw joint×1
  • 1001000015510Not stocked
    screw joint×2
  • 1401000168871
    $21.27
    EW 10 L 45° - 1000168871×1
  • 1501000085089
    $10.48
    EL10LOMDA3C - 1000085089×1
  • 1601000429539Not stocked
    Hose×1
  • 1701000015519
    $12.63
    ET12LOMDA3C - 1000015519×1
  • 1801000015492
    $2.67
    GE12LREDOMDA3C - 1000015492×1
  • 1901000015491Not stocked
    screw joint×1
  • 2001000300229
    $7.28
    lock screw - 1000300229×1
  • 2101000450148
    $118.73
    valve - 1000450148×1
  • 2201000450863Not stocked
    Hose×1
