TH412

TH412(T01-01) displacement motor Diagram

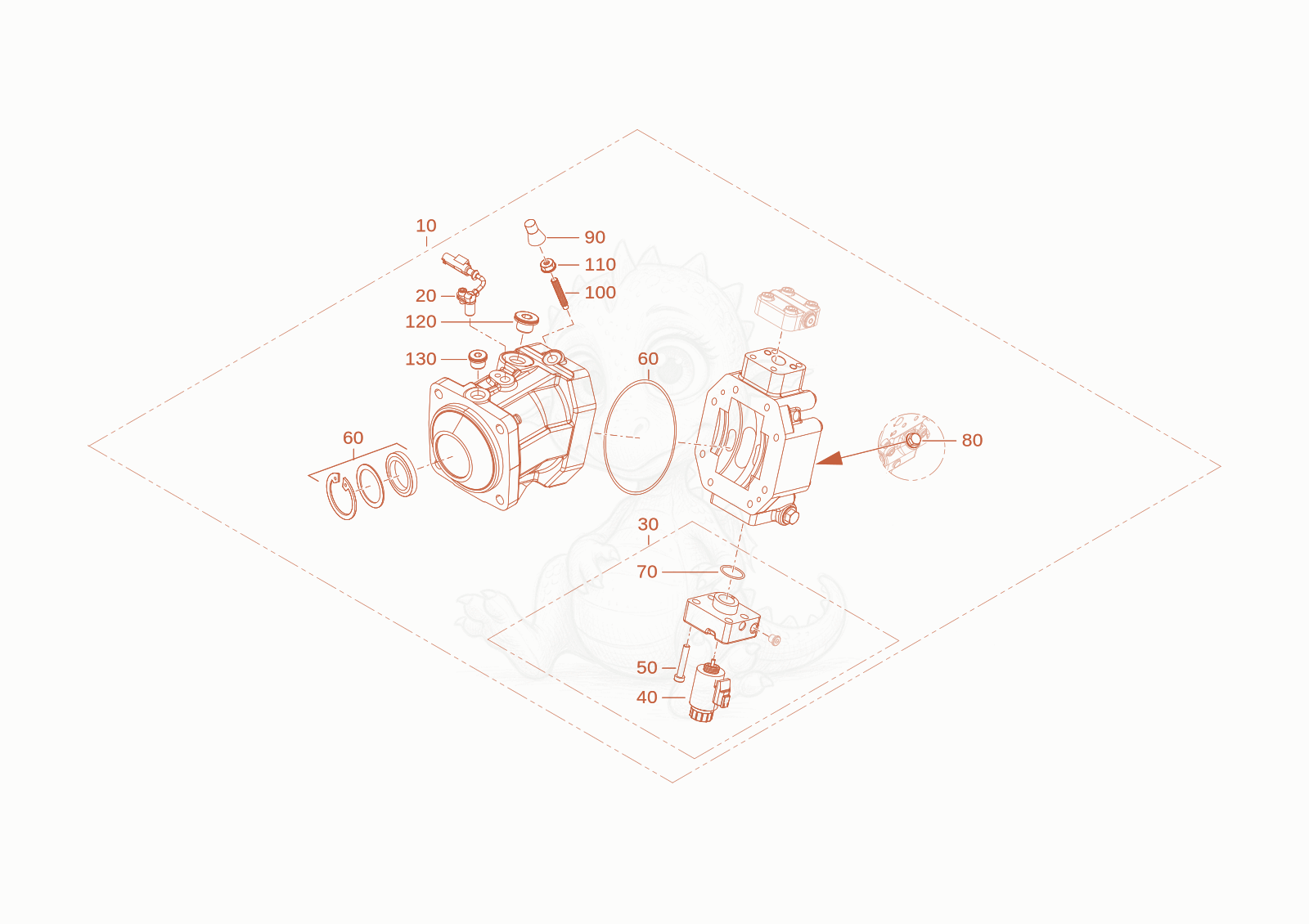

Exploded parts diagram of the displacement motor of a Wacker Neuson TH412(T01-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 101000396724Not stocked
    displacement motor×1
  • 201000409171
    $495.70
    Sensor - 1000409171×1
  • 301000481905
    $3,358.96
    controlpiece - 1000481905×1
  • 401000409127
    $247.18
    Solenoid - 1000409127×1
  • 501000128080
    $1.46
    cheese head screw M8x40-8.8 A2C DIN912 - 1000128080×4
  • 601000481872Not stocked
    seal kit×1
  • 701000481947Not stocked
    o-ring×1
  • 801000481953
    $439.42
    Valve - 1000481953×1
  • 901000087474
    $6.22
    fuse cap - 1000087474×1
  • 1001000315536Not stocked
    thread pin×1
  • 1101000266905
    $10.64
    lodging nut - 1000266905×1
  • 1201000030461Not stocked
    lock screw×1
  • 1301000076206
    $4.16
    lock screw - 1000076206×3
