TH412

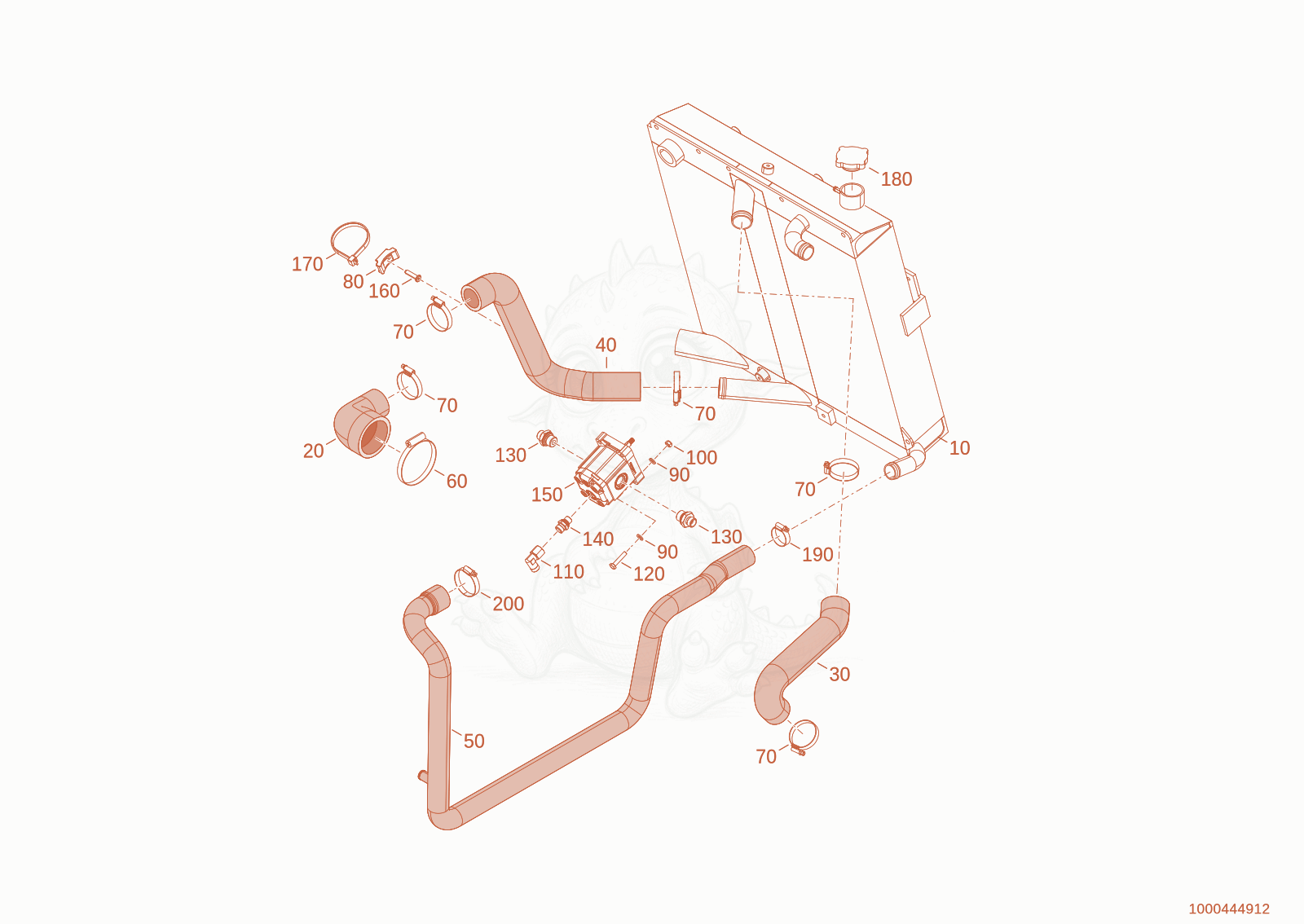

TH412(T01-01) cooler Diagram

Exploded parts diagram of the cooler of a Wacker Neuson TH412(T01-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 101000506187Not stocked
    combicooler×1
  • 101000564870Not stocked
    combicooler×1
  • 201000402057Not stocked
    hose air suction×1
  • 301000402058Not stocked
    hose air suction×1
  • 401000416190Not stocked
    hose air suction×1
  • 501000438002Not stocked
    Cooling Water Hose×1
  • 601000320377Not stocked
    hose clamp×1
  • 701000320339Not stocked
    hose clamp×5
  • 801000282739
    $2.12
    sockets - 1000282739×1
  • 901000015430Not stocked
    u-washer×8
  • 1001000085588
    $0.32
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×4
  • 1101000000542
    $11.08
    EW08LOMD - 1000000542×1
  • 1201000015339Not stocked
    hex screw×4
  • 1301000099768
    $8.96
    GE10-LM18X1,5ORA3C - 1000099768×2
  • 1401000109206
    $5.56
    GE08LMOMDA3C - 1000109206×1
  • 1501000436266Not stocked
    hydraulic motor×1
  • 1601000356352
    $2.30
    Rivet - 1000356352×1
  • 1701000193759
    $0.36
    cable strap - 1000193759×1
  • 1801000164850
    $11.90
    COOLER CAP - 1000164850×1
  • 1901000223538
    $3.03
    Clamp - 1000223538×1
  • 2001000223542
    $3.03
    Clamp - 1000223542×1
