TH412

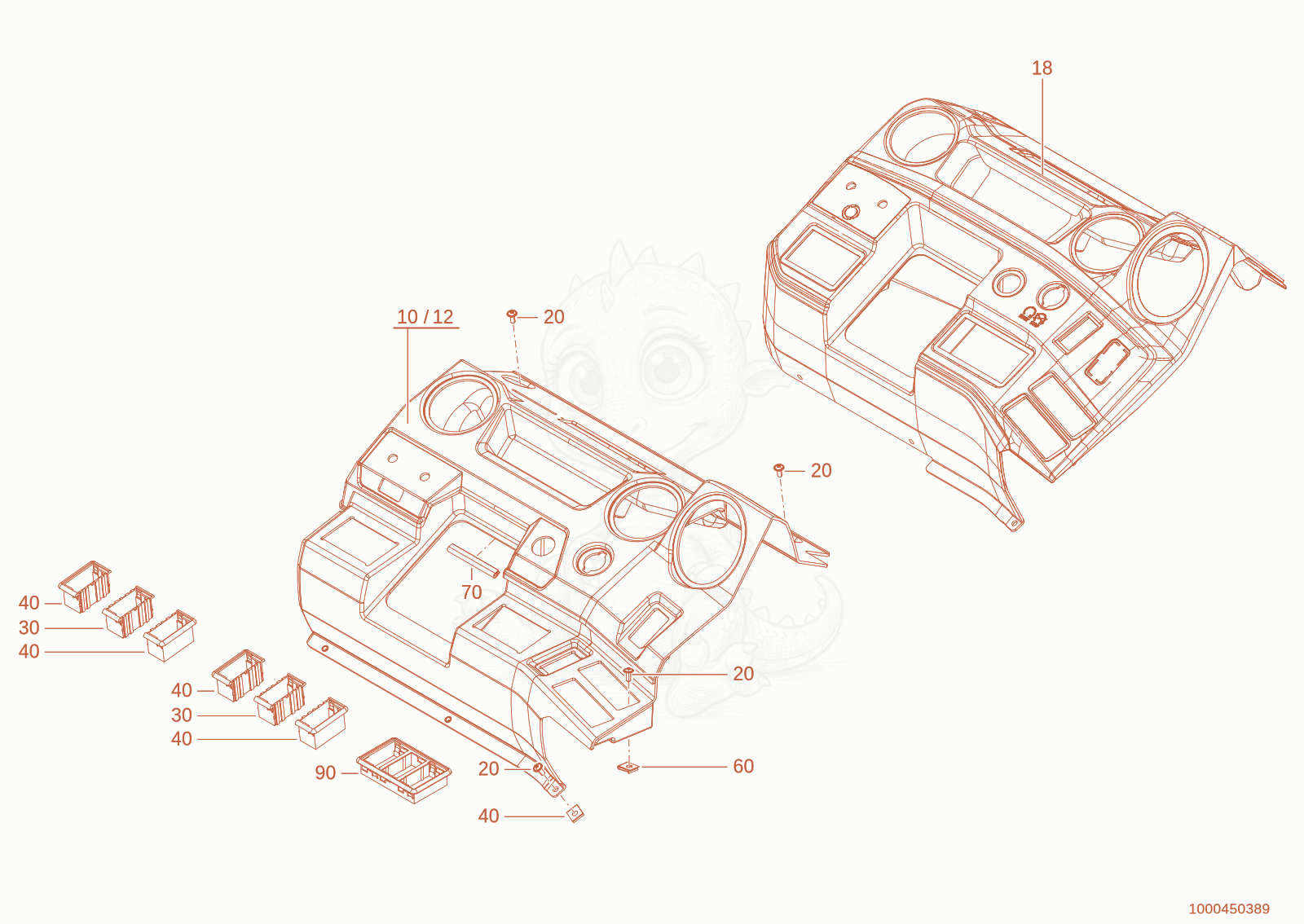

TH412(T01-01) trim instruments Diagram

Exploded parts diagram of the trim instruments of a Wacker Neuson TH412(T01-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 101000409095Not stocked
    trim instruments×1
  • 121000417608Not stocked
    trim×1
  • 181000530462Not stocked
    trim×1
  • 201000335809
    $1.22
    SCREW - 1000335809×4
  • 301000272093
    $16.34
    SWITCH FRAME - 1000272093×2
  • 401000272092
    $17.11
    SWITCH FRAME - 1000272092×4
  • 601000030414Not stocked
    nut×2
  • 701000459707
    $2.51
    EDGE PROTECTION - 1000459707×0.08
  • 901000537977Not stocked
    switch frame×1
