TH412

TH412(T01-01) quickhitch plate Diagram

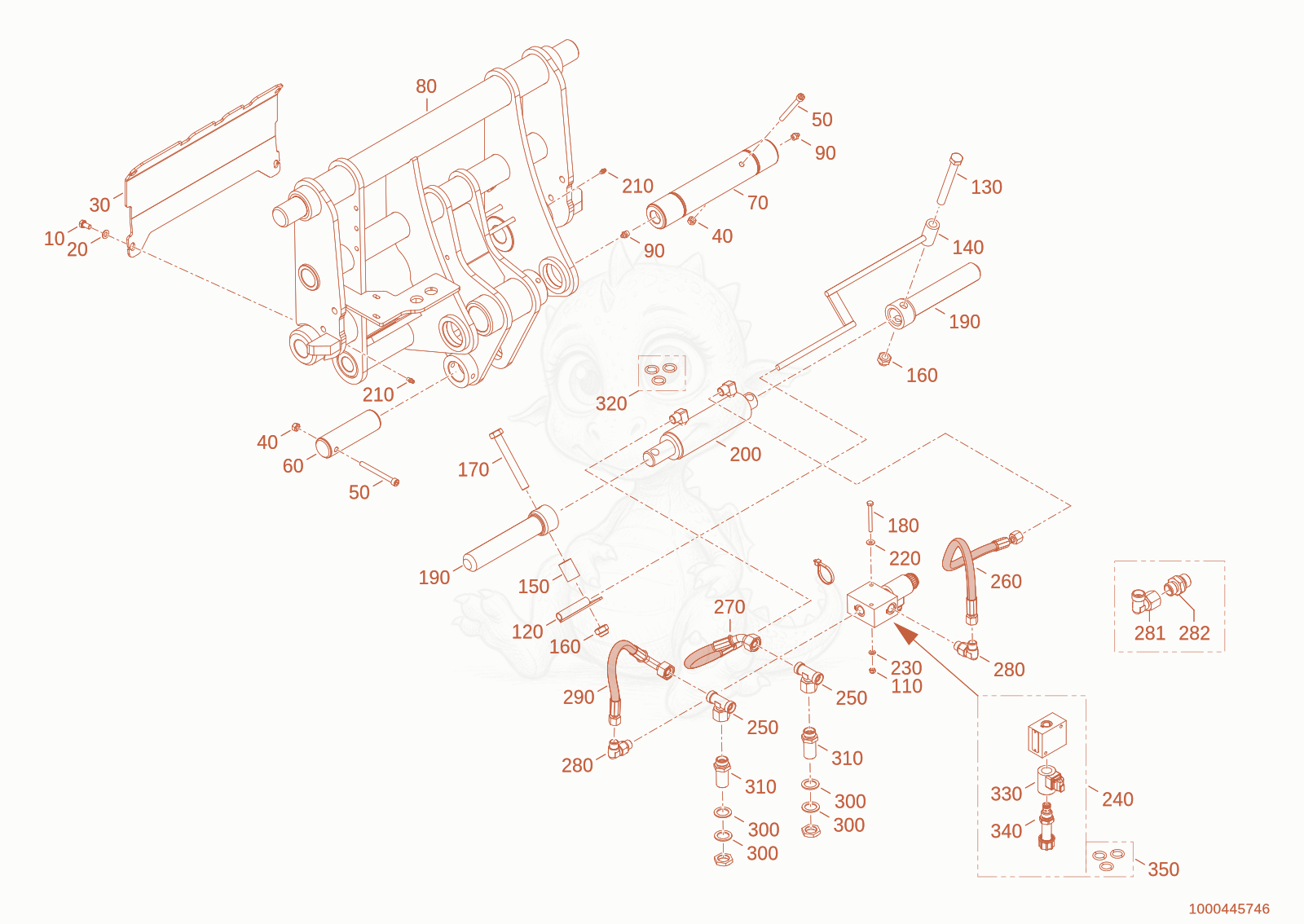

Exploded parts diagram of the quickhitch plate of a Wacker Neuson TH412(T01-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 101000019136Not stocked
    hex screw×4
  • 201000015431Not stocked
    washer×4
  • 301000475692Not stocked
    cover plate×1
  • 401000013022Not stocked
    hexagon nut×2
  • 501000223831
    $1.65
    INNER HEXAGON SCREW - 1000223831×2
  • 601000187686
    $46.83
    bolt - 1000187686×1
  • 701000464632Not stocked
    pin×1
  • 801000282095
    $2,520.31
    Adapterframe 1000282095×1
  • 901000050469
    $1.68
    grease nipple - 1000050469×2
  • 1101000085588
    $0.32
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×2
  • 1201000285503
    $46.79
    guide tube - 1000285503×1
  • 1301000223581
    $4.37
    hex screw - 1000223581×1
  • 1401000478825Not stocked
    lock indicator×1
  • 1501000196350
    $36.42
    Sleeve - 1000196350×1
  • 1601000049060Not stocked
    hexagon nut×2
  • 1701000047409Not stocked
    hex screw×1
  • 1801000085312
    $0.93
    hex screw M6x60-8.8 A2C-DIN931 - 1000085312×2
  • 1901000222385
    $52.23
    Bolt 1000222385×2
  • 2001000230013
    $270.33
    Cylinder 1000230013×1
  • 2101000222726
    $1.34
    NIPPLE-GREASE - 1000222726×2
  • 2201000222875
    $5.40
    Washer - 1000222875×2
  • 2301000015430Not stocked
    u-washer×2
  • 2401000335644
    $216.58
    Valve - 1000335644×1
  • 2501000085108
    $18.68
    ET15LOMDA3C - 1000085108×2
  • 2601000433336Not stocked
    Hose×1
  • 2701000432177Not stocked
    Hose×1
  • 2801000264768
    $54.49
    EWE10LR 3/8" - 1000264768×2
  • 2811000015510Not stocked
    screw joint×2
  • 2821000015491Not stocked
    screw joint×2
  • 2901000432188Not stocked
    Hose×1
  • 3001000082620
    $0.08
    washer 23 - 1000082620×4
  • 3101000028467Not stocked
    screw joint×2
  • 3301000346390
    $64.57
    Solenoid - 1000346390×1
  • 3401000265570
    $198.75
    drive valve - 1000265570×1
  • 3501000367370Not stocked
    seal kit valve cartridge×1
