WL28

WL28(A01-01) displacement pump Diagram

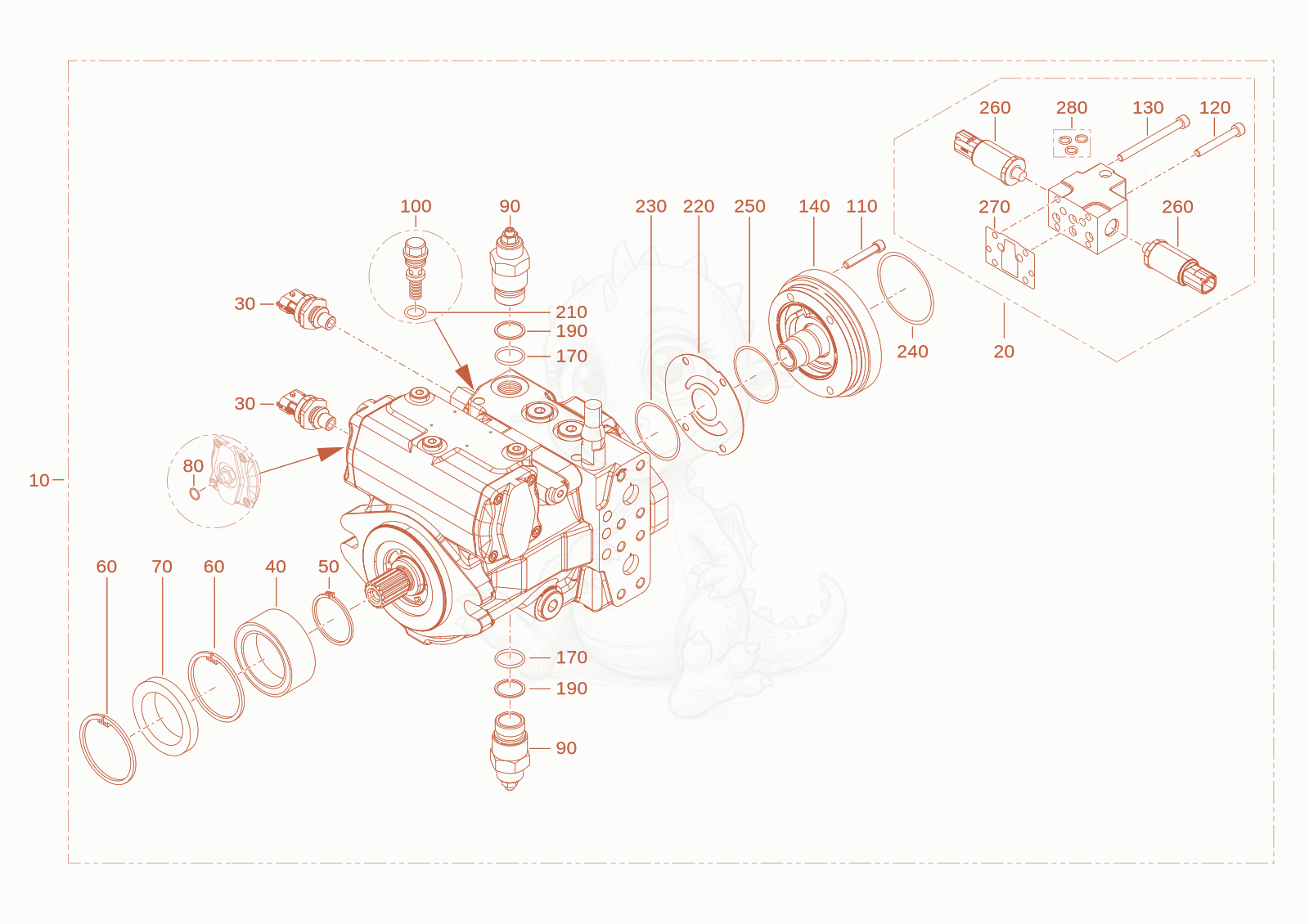

Exploded parts diagram of the displacement pump of a Wacker Neuson WL28(A01-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 101000396722Not stocked
    displacement pump×1
  • 201000423132Not stocked
    distributor×1
  • 301000460019Not stocked
    sensor×2
  • 401000423129Not stocked
    cylinder roller bearing×1
  • 501000423115Not stocked
    lock ring×1
  • 601000087813
    $6.38
    lock ring - 1000087813×2
  • 701000165634
    $103.51
    shaft seal - 1000165634×1
  • 801000266761
    $4.94
    O-ring - 1000266761×1
  • 901000098634
    $692.75
    PRESSURE LIMIT RELIEFVALVE - 1000098634×2
  • 1001000454107Not stocked
    pressure limit reliefvalve×1
  • 1101000248572
    $7.90
    INNER HEXAGON SCREW - 1000248572×4
  • 1201000085459
    $0.87
    cheese head screw - 1000085459×3
  • 1301000243532
    $5.09
    SCREW-CHEESE HEAD - 1000243532×2
  • 1401000480914
    $5,302.43
    Pump - 1000480914×1
  • 1701000039216
    $6.48
    O-Ring - 1000039216×1
  • 1901000087822
    $3.59
    SUPPORT RING - 1000087822×1
  • 2101000089364
    $21.87
    O-ring - 1000089364×1
  • 2201000266719
    $80.09
    wear out plate - 1000266719×1
  • 2301000225434
    $9.54
    HYDRAULIC PUMP SEAL - 1000225434×1
  • 2401000391301Not stocked
    o-ring×1
  • 2501000224913
    $12.45
    O-RING - 1000224913×1
  • 2601000423114Not stocked
    pressure reduct.valve×2
  • 2701000247528
    $25.37
    seal - 1000247528×1
  • 2801000454119Not stocked
    seal kit×2
