WL28

WL28(A01-01) switch strap Diagram

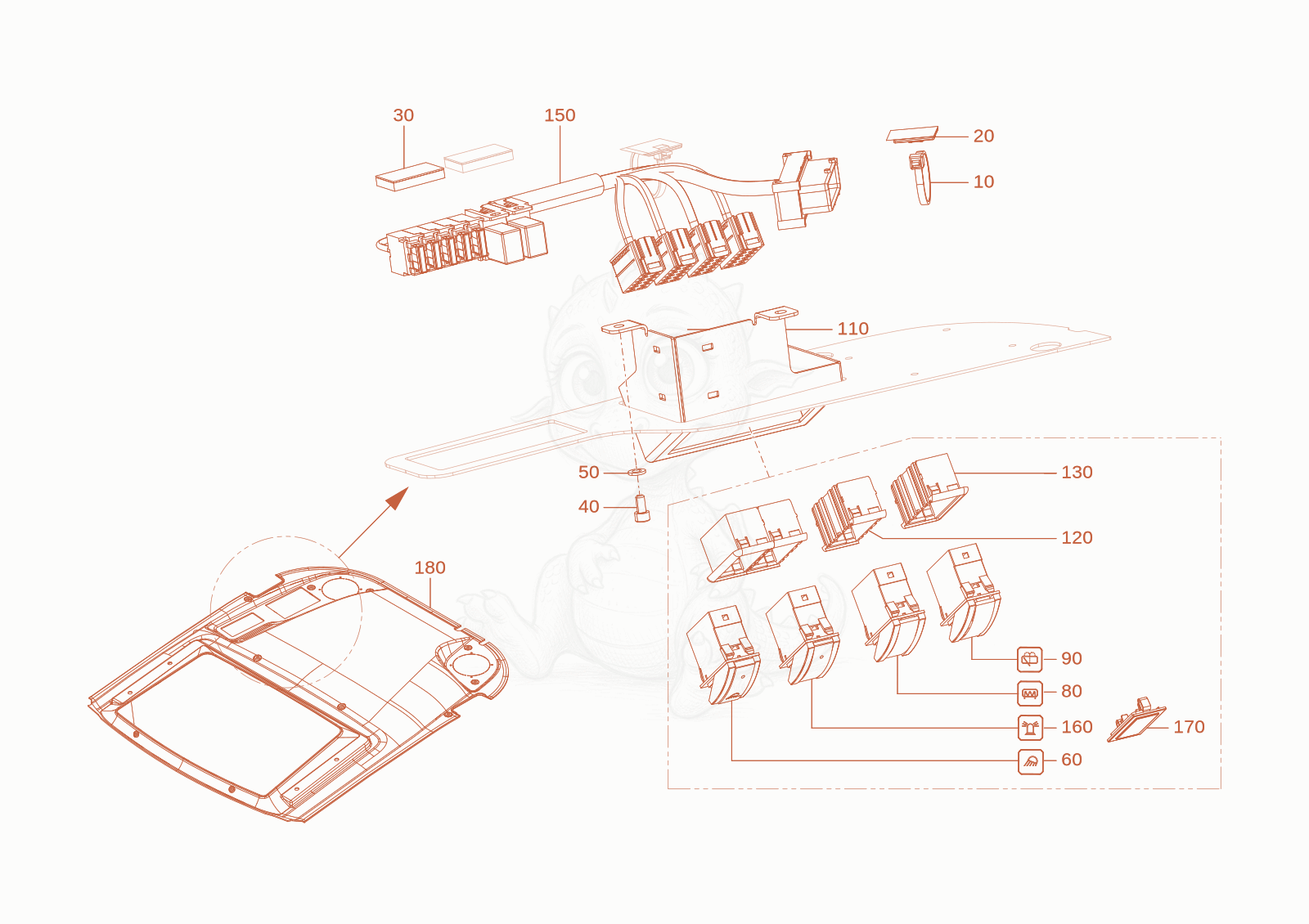

Exploded parts diagram of the switch strap of a Wacker Neuson WL28(A01-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 101000193828
    $0.89
    cable strap - 1000193828×4
  • 201000393729Not stocked
    mounting cable×2
  • 301000097087
    $99.20
    hook strap - 1000097087×0.025
  • 401000085454
    $0.70
    allen screw M6x12-8.8 A2C-DIN912 - 1000085454×3
  • 501000015430Not stocked
    u-washer×3
  • 601000329230
    $35.16
    Switch - 1000329230×1
  • 801000326098
    $41.27
    Switch - 1000326098×1
  • 901000313254Not stocked
    switch wiper×1
  • 1101000490259Not stocked
    shift console×1
  • 1201000272093
    $16.34
    SWITCH FRAME - 1000272093×2
  • 1301000272092
    $17.11
    SWITCH FRAME - 1000272092×2
  • 1501000490313Not stocked
    wiring harness×1
  • 1601000329229
    $47.11
    Switch - 1000329229×1
  • 1701000027006Not stocked
    blind cover×1
  • 1801000490269Not stocked
    roof trim×1
