WL28

WL28(A01-01) suppl. Control circuit Diagram

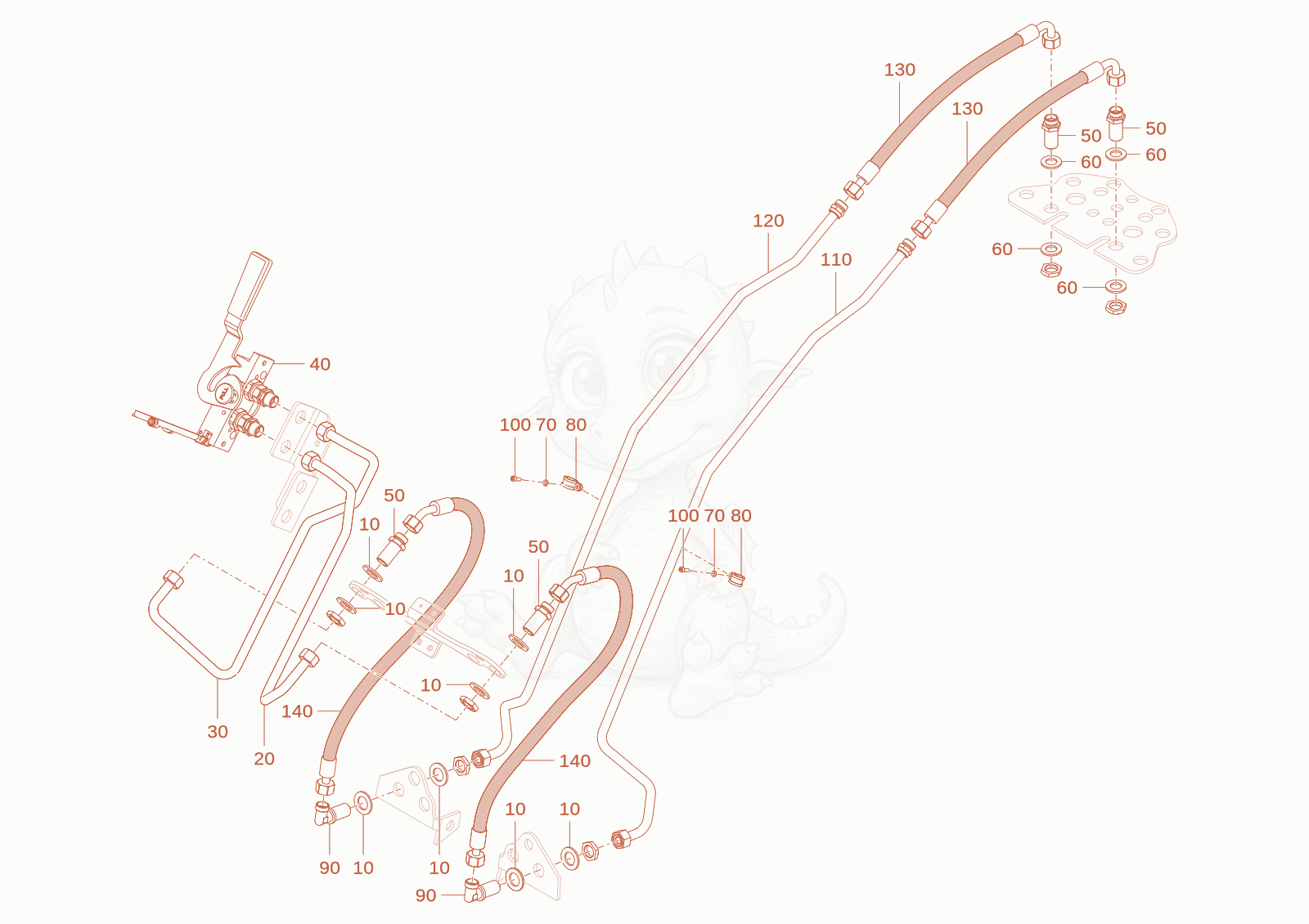

Exploded parts diagram of the suppl. Control circuit of a Wacker Neuson WL28(A01-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 101000082620
    $0.08
    washer 23 - 1000082620×8
  • 201000457853
    $52.86
    hydraulic line - 1000457853×1
  • 301000457855
    $56.25
    hydraulic line - 1000457855×1
  • 401000410821Not stocked
    quick lock coupling×1
  • 501000028467Not stocked
    screw joint×4
  • 601000082625
    $0.83
    washer 19 - 1000082625×4
  • 701000094962
    $0.04
    washer A 5,3 A2C DIN125 - 1000094962×2
  • 801000222575
    $2.19
    PIPE CLAMP - 1000222575×2
  • 901000028318Not stocked
    lock screw connection×2
  • 1001000085451
    $0.70
    allen screw M5x16-8.8 A2C DIN912 - 1000085451×2
  • 1101000355880Not stocked
    pipe line×1
  • 1201000355879
    $76.16
    FLEXIBLE LINE - 1000355879×1
  • 1301000363235Not stocked
    Hose×2
  • 1401000366340
    $25.21
    SLHYDR 2SCD12 PN15 0 PN15 45 L750,0 - 1000366340×2
