WL28

WL28(A01-01) cooling Diagram

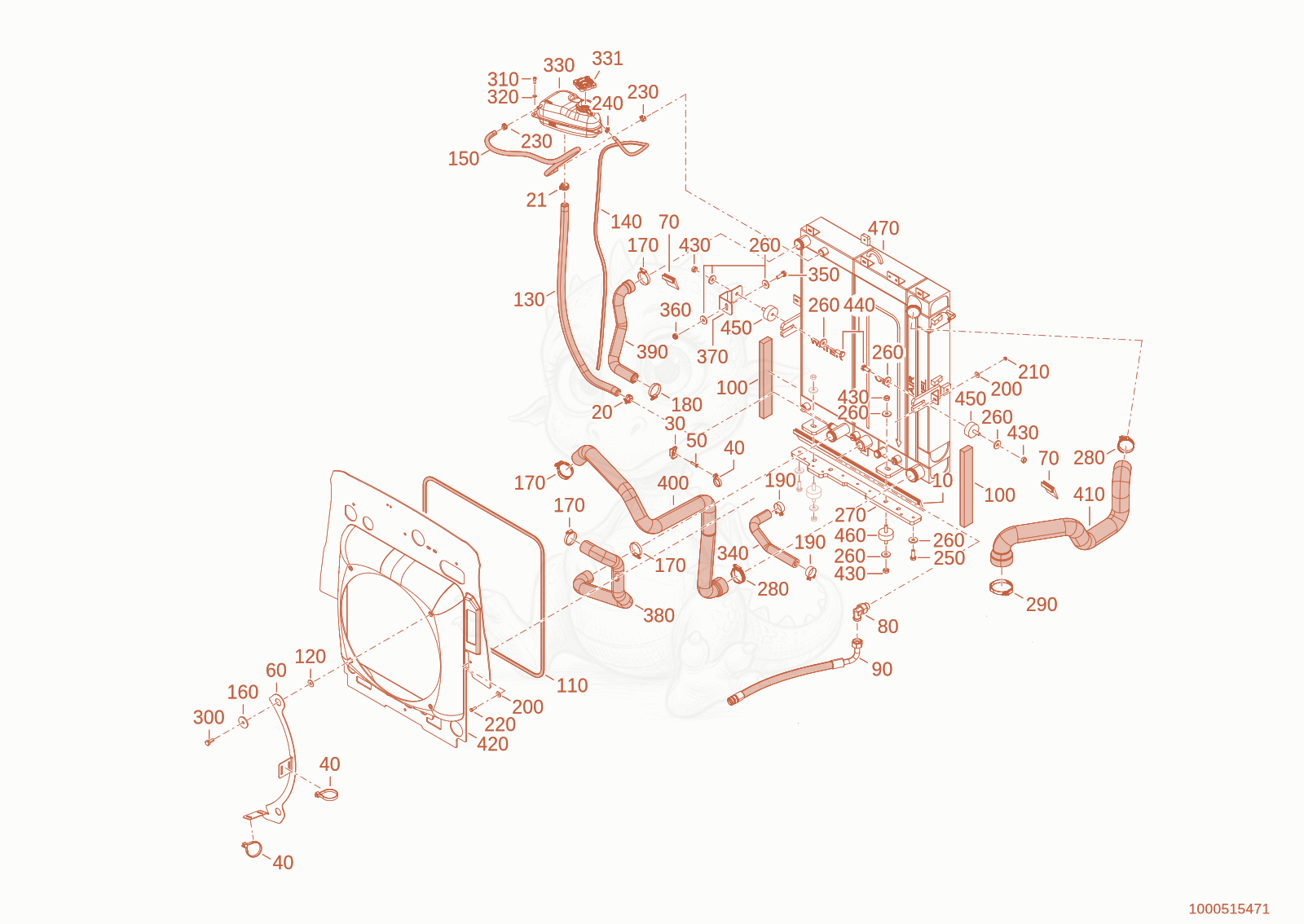

Exploded parts diagram of the cooling of a Wacker Neuson WL28(A01-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 101000097155
    $46.50
    Profile 1000097155×0.6
  • 201000392402Not stocked
    clamp×1
  • 211000392401Not stocked
    clamp×1
  • 301000282739
    $2.12
    sockets - 1000282739×1
  • 401000193759
    $0.36
    cable strap - 1000193759×3
  • 501000356352
    $2.30
    Rivet - 1000356352×1
  • 601000461765Not stocked
    hose protection×1
  • 701000097155
    $46.50
    Profile 1000097155×0.14
  • 801000233166
    $58.17
    EWE 22-LR 3/4" - 1000233166×1
  • 901000453249Not stocked
    Hose×1
  • 1001000233040
    $4.99
    foam strap - 1000233040×0.63
  • 1101000232095
    $4.29
    FOAM STRAP - 1000232095×2.215
  • 1201000013027Not stocked
    washer×2
  • 1301000439648Not stocked
    water hose×1.1
  • 1401000439649Not stocked
    water hose×0.98
  • 1501000301204
    $5.98
    Cooling Water Hose - 1000301204×0.72
  • 1601000351385
    $1.42
    Washer - 1000351385×2
  • 1701000223542
    $3.03
    Clamp - 1000223542×4
  • 1801000223538
    $3.03
    Clamp - 1000223538×1
  • 1901000263432
    $5.65
    CLAMP - 1000263432×2
  • 2001000222992
    $1.08
    Washer - 1000222992×12
  • 2101000085588
    $0.32
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×6
  • 2201000018400Not stocked
    hex screw×6
  • 2301000392134Not stocked
    clamp×2
  • 2401000392425Not stocked
    clamp×1
  • 2501000015364Not stocked
    hex screw×2
  • 2601000222577
    $1.45
    Washer - 1000222577×12
  • 2701000433439
    $255.47
    traverse - 1000433439×1
  • 2801000320339Not stocked
    hose clamp×2
  • 2901000320377Not stocked
    hose clamp×1
  • 3001000013008Not stocked
    hex screw×2
  • 3101000085455
    $0.81
    allen screw M6x16-8.8 A2C - 1000085455×3
  • 3201000015430Not stocked
    u-washer×3
  • 3301000422429Not stocked
    regulation container×1
  • 3311000405933
    $22.83
    Cover - 1000405933×1
  • 3401000497804
    $9.82
    Hydraulic oil hose cooler-tank d 24mm - 1000497804×1
  • 3501000015346Not stocked
    hex screw×1
  • 3601000015408
    $1.33
    nut M10-8 A2C-DIN985 - 1000015408×1
  • 3701000410373Not stocked
    bracket cooler×1
  • 3801000409828Not stocked
    Cooling Water Hose×1
  • 3801000547573Not stocked
    water hose×1
  • 3901000409829Not stocked
    Cooling Water Hose×1
  • 4001000409831Not stocked
    hose air suction×1
  • 4101000557015Not stocked
    hose air suction×1
  • 4201000507377
    $438.68
    Cover - 1000507377×1
  • 4301000015407Not stocked
    hexagon nut×6
  • 4401000223198
    $1.27
    SCREW - 1000223198×2
  • 4501000228560
    $7.69
    Silent block - 1000228560×2
  • 4601000228561
    $11.50
    SHOCKMOUNT - 1000228561×2
  • 4701000453153Not stocked
    combicooler×1
