WL28

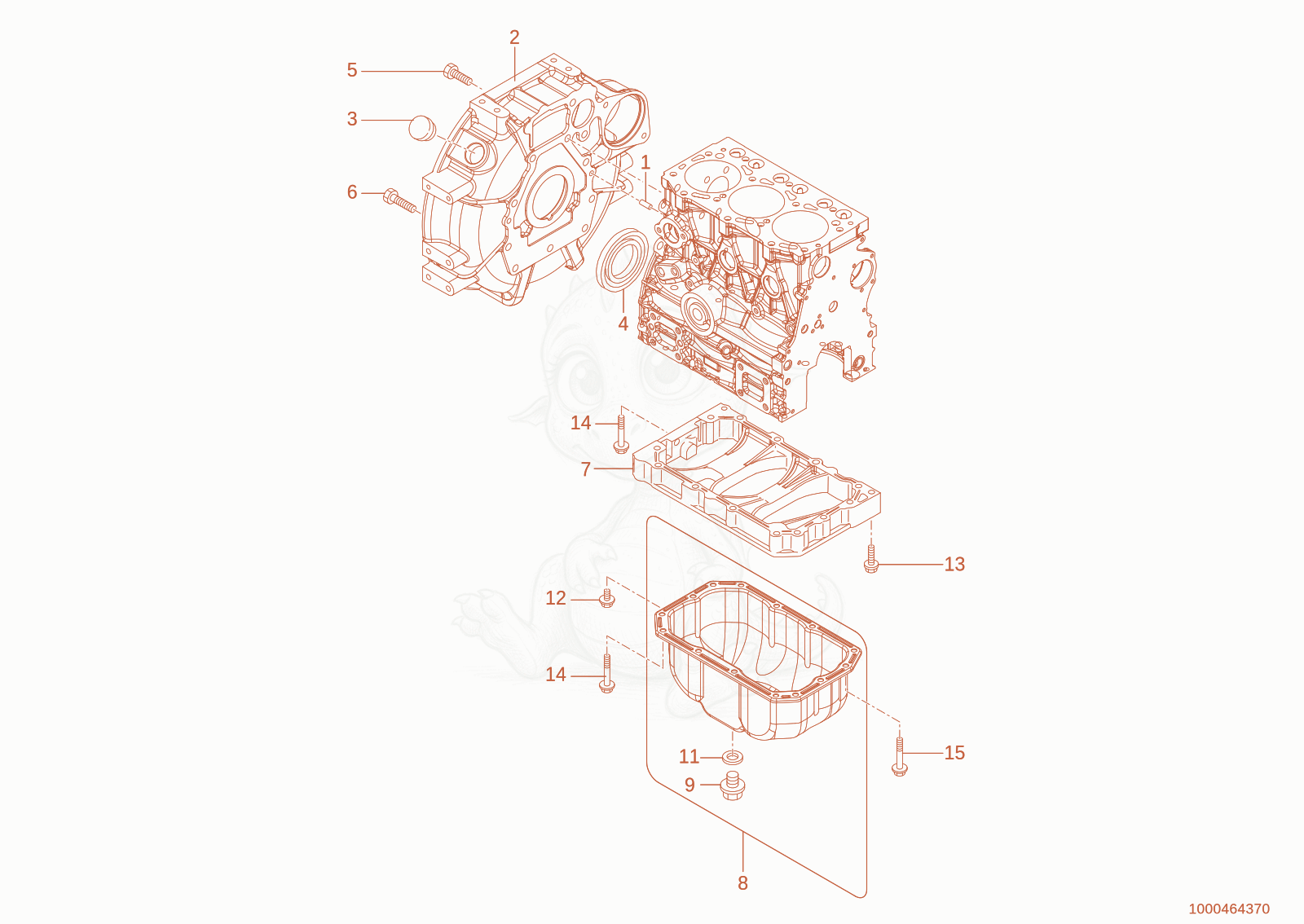

WL28(A01-01) oil sump Diagram

Exploded parts diagram of the oil sump of a Wacker Neuson WL28(A01-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000102791
    $3.81
    fitting pin - 1000102791×2
  • 21000148785
    $1,089.83
    Flywheelhousing 1000148785×1
  • 31000064550Not stocked
    rubber plug×1
  • 41000463825
    $54.74
    BUSHING - 1000463825×1
  • 51000107760
    $2.05
    SCREW - 1000107760×8
  • 61000107761
    $2.05
    SCREW - 1000107761×3
  • 71000312570
    $502.05
    Intermediatepiece 1000312570×1
  • 81000577839Not stocked
    oilsump×1
  • 91000134824
    $7.08
    LOCK SCREW - 1000134824×1
  • 111000071058Not stocked
    seal ring×1
  • 121000085173
    $1.82
    hex screw - 1000085173×1
  • 131000126868
    $2.72
    SCREW - 1000126868×1
  • 141000107492
    $2.15
    SCREW - 1000107492×11
  • 151000085197
    $2.43
    SCREW - 1000085197×3
