WL28

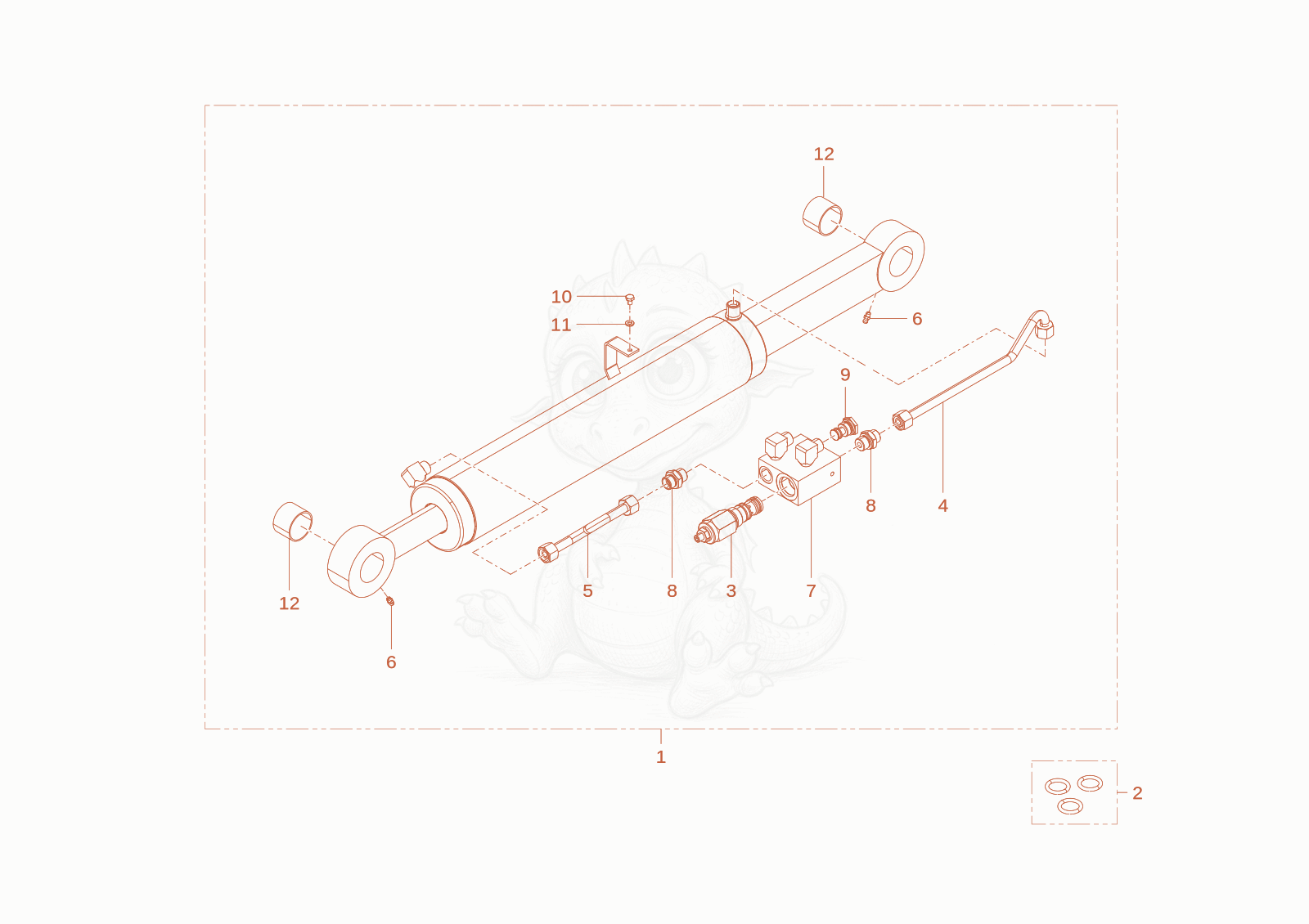

WL28(A01-01) tilt ram Diagram

Exploded parts diagram of the tilt ram of a Wacker Neuson WL28(A01-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000358876
    $2,605.06
    Cylinder - 1000358876×1
  • 21000370149Not stocked
    cylinder seal kit×1
  • 31000255347
    $461.02
    VALVE CARTRIDGE - 1000255347×1
  • 41000351599
    $331.69
    Pipe - 1000351599×1
  • 51000351537
    $315.22
    Pipe - 1000351537×1
  • 61000015476Not stocked
    grease nipple×1
  • 71000351534Not stocked
    sinkbrake valve×1
  • 81000028596Not stocked
    screw joint×2
  • 91000085307
    $11.32
    lock screw - 1000085307×1
  • 101000020553Not stocked
    hex screw×1
  • 111000015430Not stocked
    u-washer×1
  • 121000368008Not stocked
    dx bushing×2
