WL28

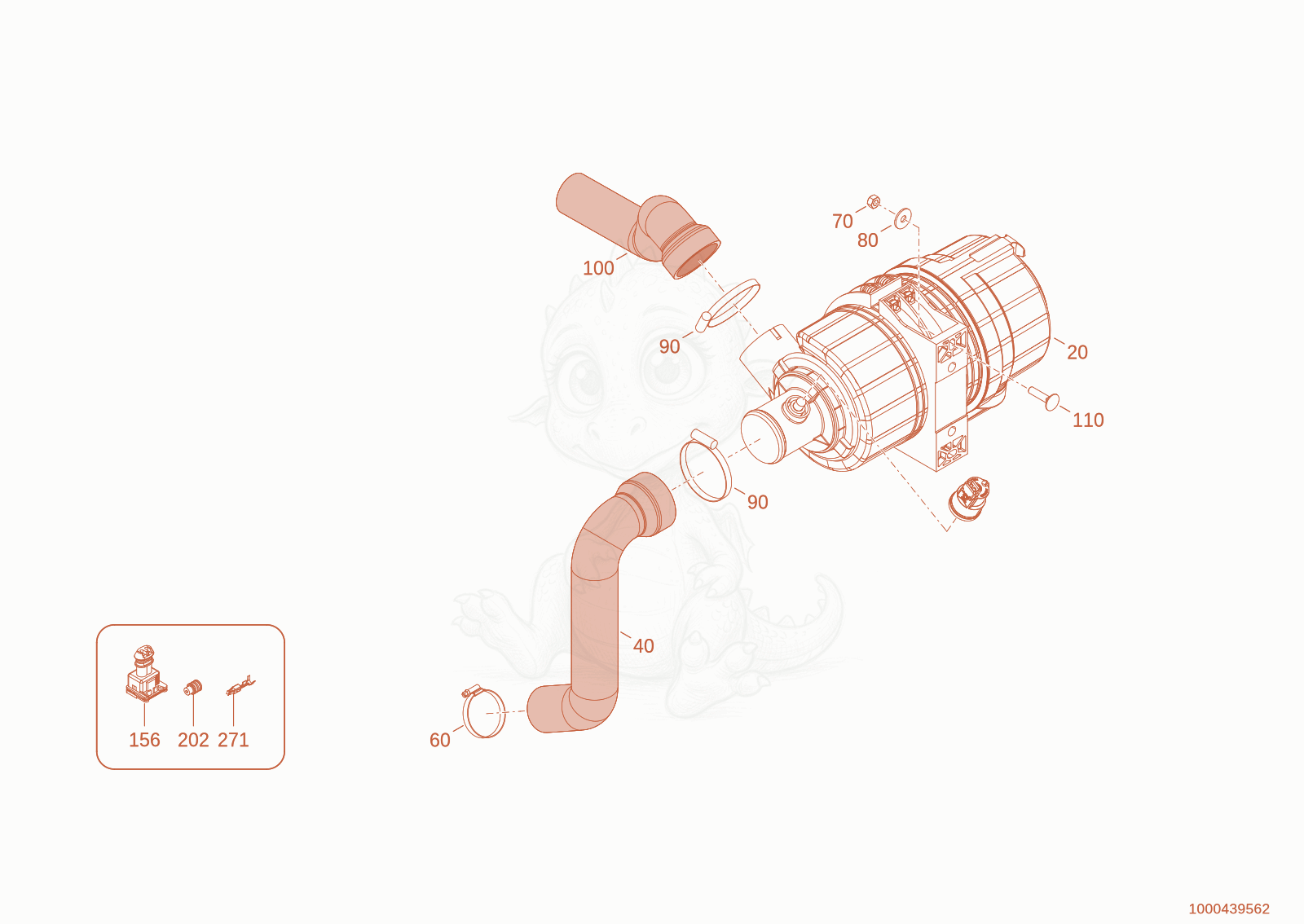

WL28(A01-01) air suction hose Diagram

Exploded parts diagram of the air suction hose of a Wacker Neuson WL28(A01-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 201000543475Not stocked
    air cleaner×1
  • 401000410350Not stocked
    hose air suction×1
  • 601000223544
    $3.30
    Clamp - 1000223544×1
  • 701000013022Not stocked
    hexagon nut×2
  • 801000013027Not stocked
    washer×2
  • 901000223548
    $3.87
    Clamp - 1000223548×1
  • 1001000440537Not stocked
    hose air suction×1
  • 1101000443824Not stocked
    flat head screw×2
  • 1561000229790
    $9.75
    PLUG SLEEVE HOUSING - 1000229790×1
  • 2021000246747
    $1.41
    seal - 1000246747×1
  • 2711000334041Not stocked
    timer contact×1
