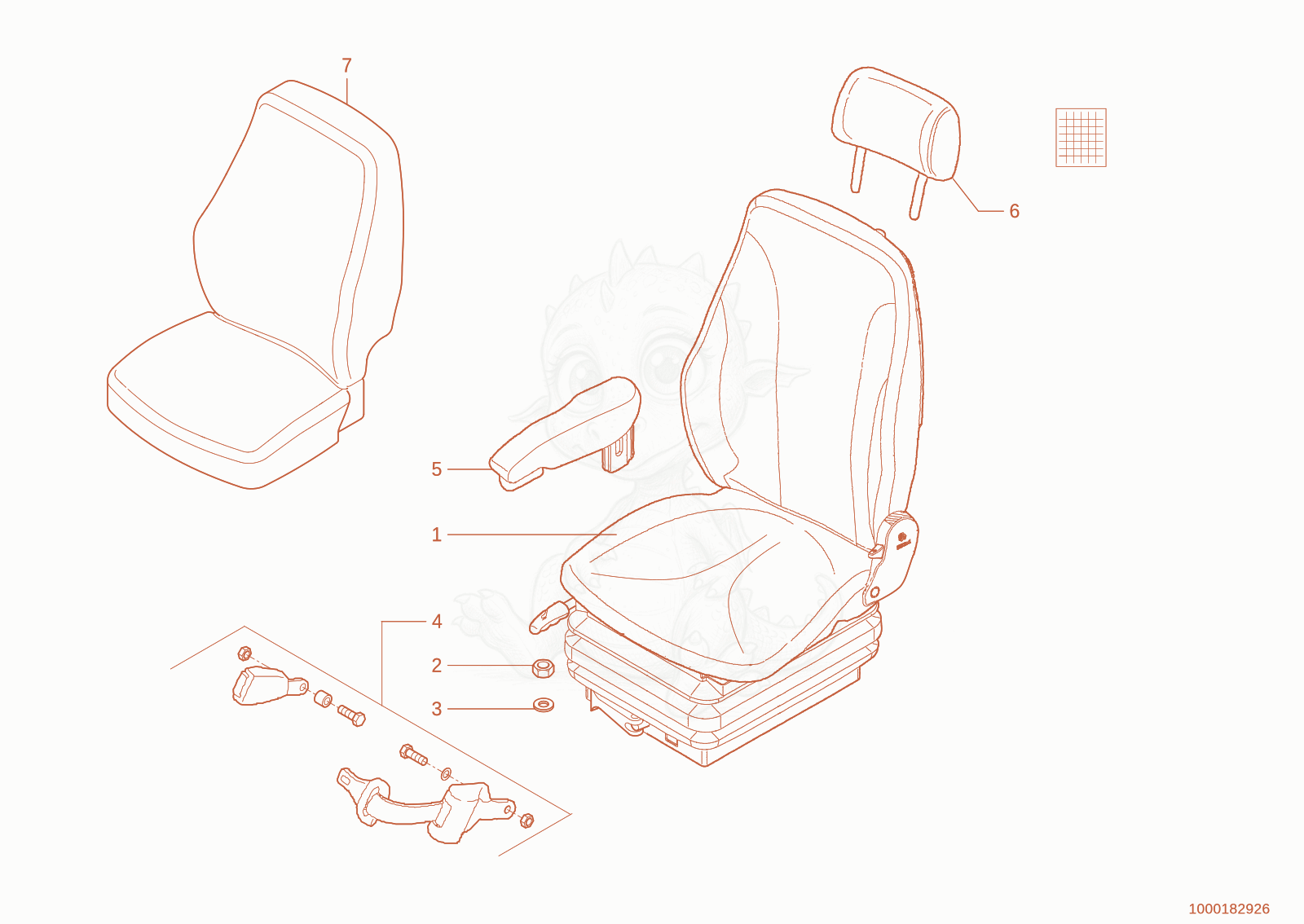

1150 Operator's seat attachment Diagram

Exploded parts diagram of the Operator's seat attachment of a Wacker Neuson 1150, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000144758
$1,111.61
Driversseat 1000144758×1
21000013022Not stocked
hexagon nut×4
31000015431Not stocked
washer×4
41000098916
$104.08
AUTOMATIC BELT - 1000098916×1
51000089492
$77.73
Arm rest - 1000089492×1
61000038209
$71.07
HEADREST - 1000038209×1
71000508543Not stocked
slip-cover×1
