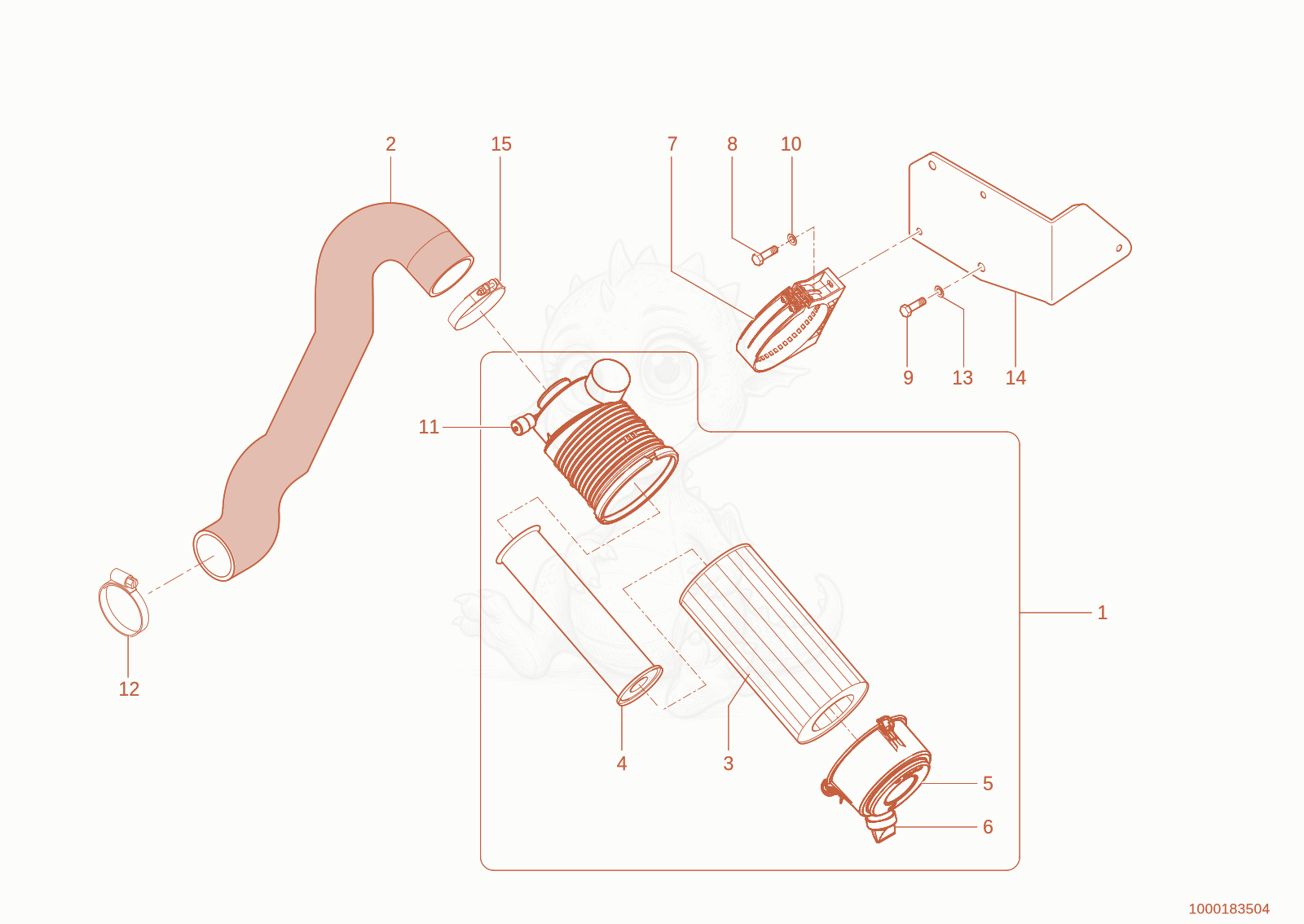

1150 Induction system Diagram

Exploded parts diagram of the Induction system of a Wacker Neuson 1150, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000032165Not stocked
air cleaner×1
21000179301
$598.08
Preshapedtube 1000179301×1
31000000365Not stocked
filter cartridge×1
41000087796
$20.81
airfilter insert - 1000087796×1
51000088788
$15.77
Cover - 1000088788×1
61000084971
$6.25
dustexhaust valve - 1000084971×1
71000031896Not stocked
clamp×1
81000085390
$0.83
6-Point screw M8x30-8.8 A2C-DIN933 - 1000085390×2
91000013008Not stocked
hex screw×1
101000013027Not stocked
washer×2
111000104488
$50.97
maintenance indicator - 1000104488×1
121000032150Not stocked
clamp×1
131000015431Not stocked
washer×3
141000179399Not stocked
bracket×1
151000279435
$24.49
Clamp - 1000279435×1
