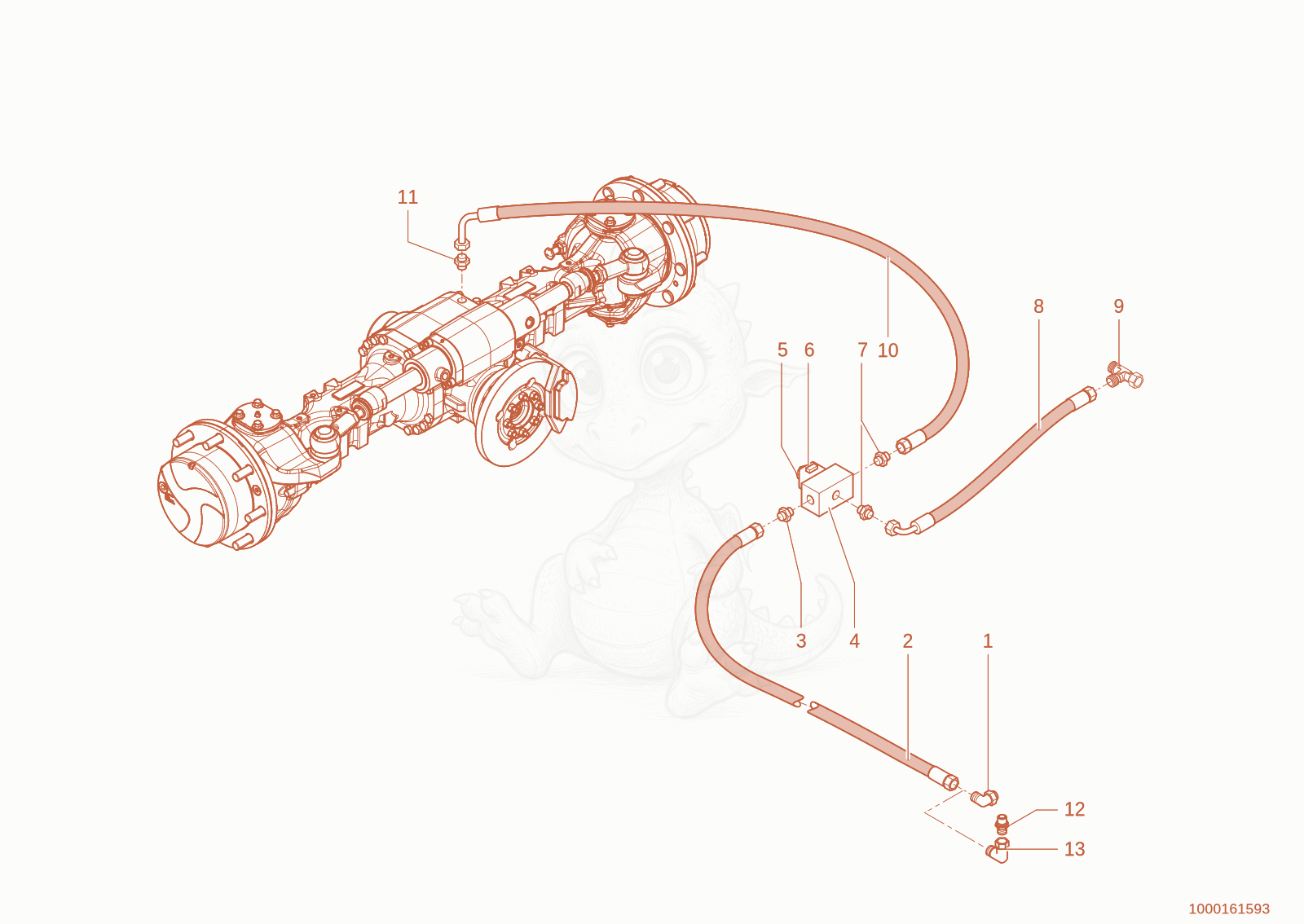

1150 differential lock Diagram

Exploded parts diagram of the differential lock of a Wacker Neuson 1150, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000098831
$36.81
EWE10LM18X1,5 A3C - 1000098831×1
21000156704
$37.22
SLHYDR 2SC 8,0PN10 0 PN10 0 L2500 - 1000156704×1
31000015490Not stocked
screw joint×1
41000103961
$232.40
SOLENOID VALVE - 1000103961×1
51000111131
$49.27
MAGNET SPOOL - 1000111131×1
61000103962
$348.55
VALVE - 1000103962×1
71000085128
$3.13
GE12LR1/4EDOMDA3C - 1000085128×2
81000156702
$62.22
SLHYDR 2SC 10 PN12 0 PN12 90 L350,0 - 1000156702×1
91000015516
$13.63
EL12LOMDA3C - 1000015516×1
101000149150
$36.52
SLHYDR 2SC 8,0PN12 0 PN12 90 L1100 0 - 1000149150×1
111000159276
$33.76
GE12LM14X1,5EDOMDA3C - 1000159276×1
121000085135
$22.62
GE10LM22X1,5EDOMDA3C - 1000085135×1
131000015510Not stocked
screw joint×1
