1150 wiring harness Diagram

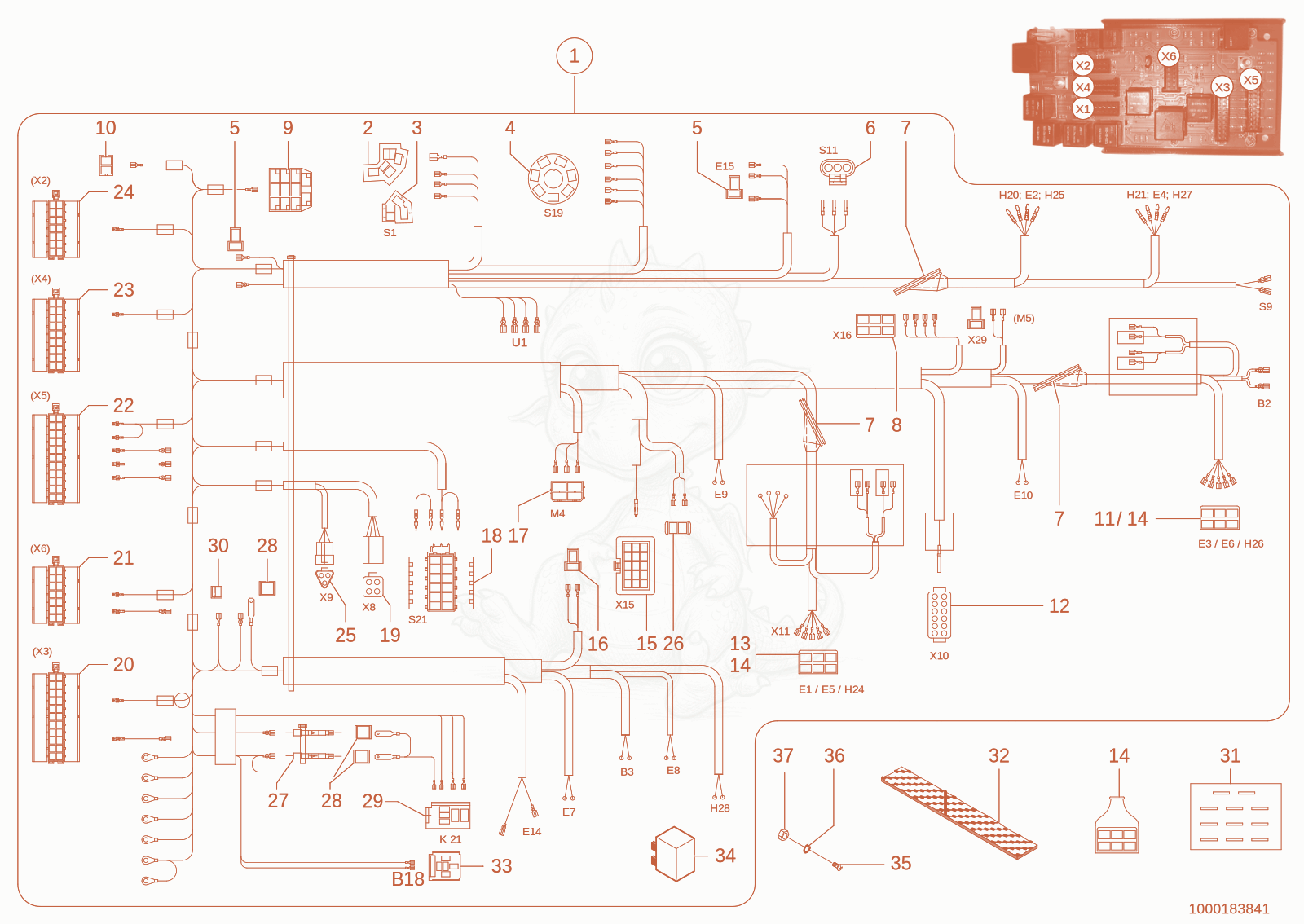

Exploded parts diagram of the wiring harness of a Wacker Neuson 1150, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000175296Not stocked
wiring harness×1
21000027386
$6.47
PLUG - 1000027386×1
31000027368Not stocked
central plug×1
41000104430
$10.68
Plug housing - 1000104430×1
51000095323
$3.39
plug sleeve housing - 1000095323×3
61000051989Not stocked
bushing housing×1
71000133832
$14.12
Duct ring - 1000133832×3
81000095337
$2.68
plug sleeve housing - 1000095337×1
91000095333
$162.09
plug sleeve housing - 1000095333×1
101000095336Not stocked
plug sleeve housing×1
111000095337
$2.68
plug sleeve housing - 1000095337×1
121000105121
$29.93
BUSHING HOUSING - 1000105121×1
131000095337
$2.68
plug sleeve housing - 1000095337×1
141000096652
$3.85
rubber cap - 1000096652×2
151000104663
$11.53
Pin housing - 1000104663×1
161000095323
$3.39
plug sleeve housing - 1000095323×1
171000095325
$2.11
plug sleeve housing - 1000095325×1
181000103949
$5.74
bushing housing - 1000103949×1
191000104286
$11.39
bushing housing - 1000104286×1
201000100973
$16.71
BUSHING HOUSING - 1000100973×1
211000100971
$4.24
bushing housing - 1000100971×1
221000104433
$3.62
BUSHING HOUSING - 1000104433×1
231000104432
$16.71
bushing housing - 1000104432×1
241000100971
$4.24
bushing housing - 1000100971×1
251000027429Not stocked
housing×1
261000027357Not stocked
plug sleeve housing×1
271000100594Not stocked
block diode×2
281000085008
$1.91
PLUG HOUSING - 1000085008×2
291000100593
$6.63
sockets - 1000100593×1
301000103336Not stocked
plug housing×1
311000162652
$502.71
electronic running step - 1000162652×1
321000097087
$99.20
hook strap - 1000097087×0.07
331000101071
$7.72
Plug housing - 1000101071×1
341000322069
$57.70
signal - 1000322069×1
351000048516Not stocked
flat head screw×1
361000092288
$3.28
WASHER - 1000092288×1
371000049057Not stocked
hexagon nut×1
