1150 oil tank Diagram

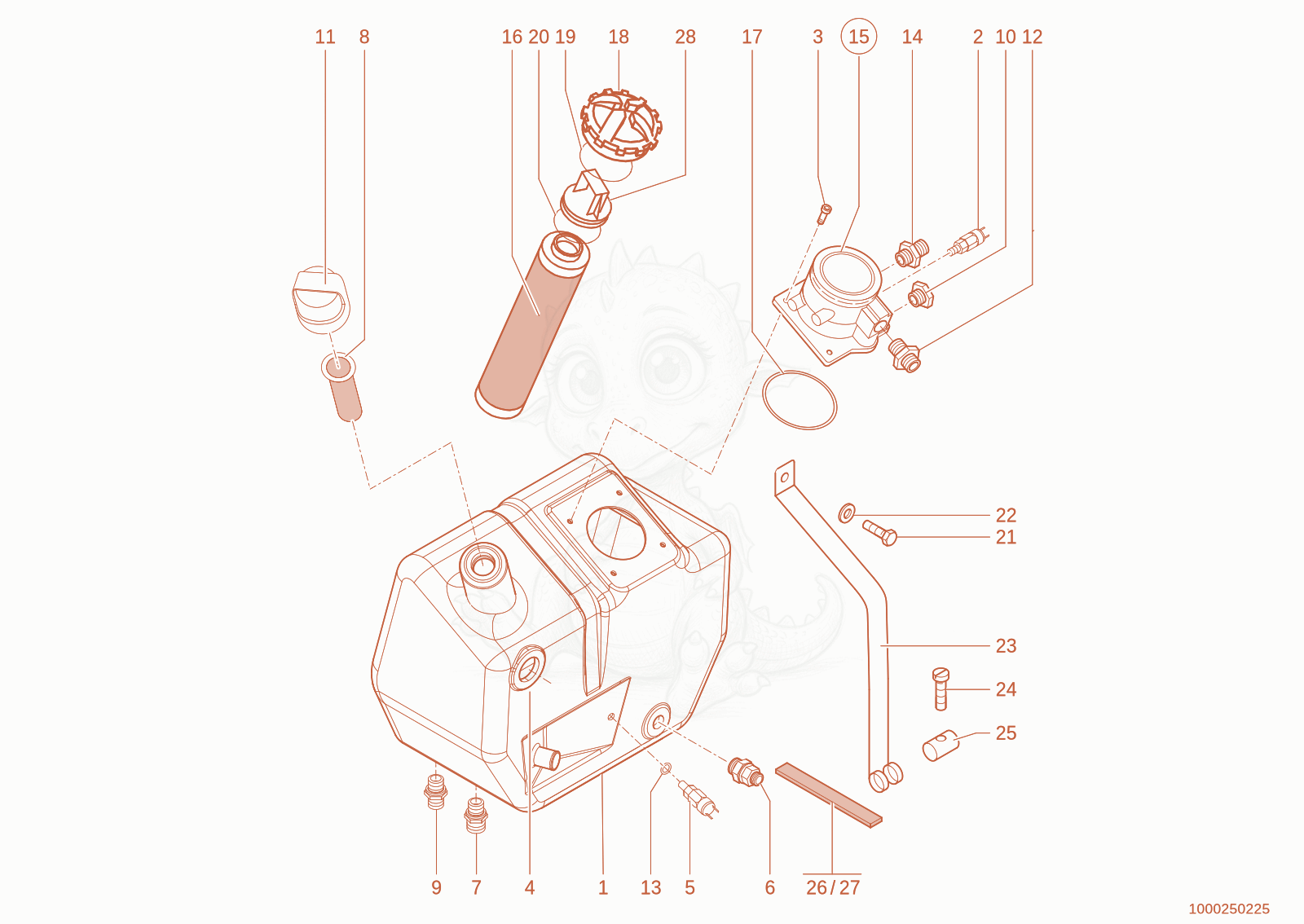

Exploded parts diagram of the oil tank of a Wacker Neuson 1150, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000035515
$3,385.95
hydraulic tank - 1000035515×1
21000005154Not stocked
pressure switch×1
31000015354
$0.82
allen screw M10x20-8.8 A2C-DIN912 - 1000015354×4
41000022318Not stocked
oillevel sight glass×1
51000427611Not stocked
temperature switch×1
61000052083
$214.17
non return valve RHZ 22-L 3,0bar - 1000052083×1
71000028095Not stocked
drain coupling×1
81000028238
$28.88
SCREEN - 1000028238×1
91000028596Not stocked
screw joint×1
101000030655Not stocked
lock screw×1
111000153385
$57.52
venting filter - 1000153385×1
121000126326
$62.17
GE35LR 1 1/4 A3C - 1000126326×1
131000022510Not stocked
seal ring×1
141000100732
$22.12
GE22LR A3C - 1000100732×1
151000027665Not stocked
reflux suction filter×1
161000000567Not stocked
filter insert×1
171000090401
$5.27
O-RING - 1000090401×1
181000000538
$63.46
Cover - 1000000538×1
191000000923
$0.91
O-RING - 1000000923×1
201000000900
$1.71
O-RING - 1000000900×1
211000085389
$0.73
hex screw M8x12-8.8 A2C DIN933 - 1000085389×1
221000013027Not stocked
washer×1
231000032402Not stocked
clmap strap×1
241000085461
$0.06
cheese head screw M6x60-8.8 A2C - 1000085461×1
251000030423Not stocked
pin×1
261000097033
$7.03
RUBBER STRIP - 1000097033×0.47
271000097033
$7.03
RUBBER STRIP - 1000097033×0.75
281000021223Not stocked
end piece×1
