1150 Multy purpose bucket hydraulic Diagram

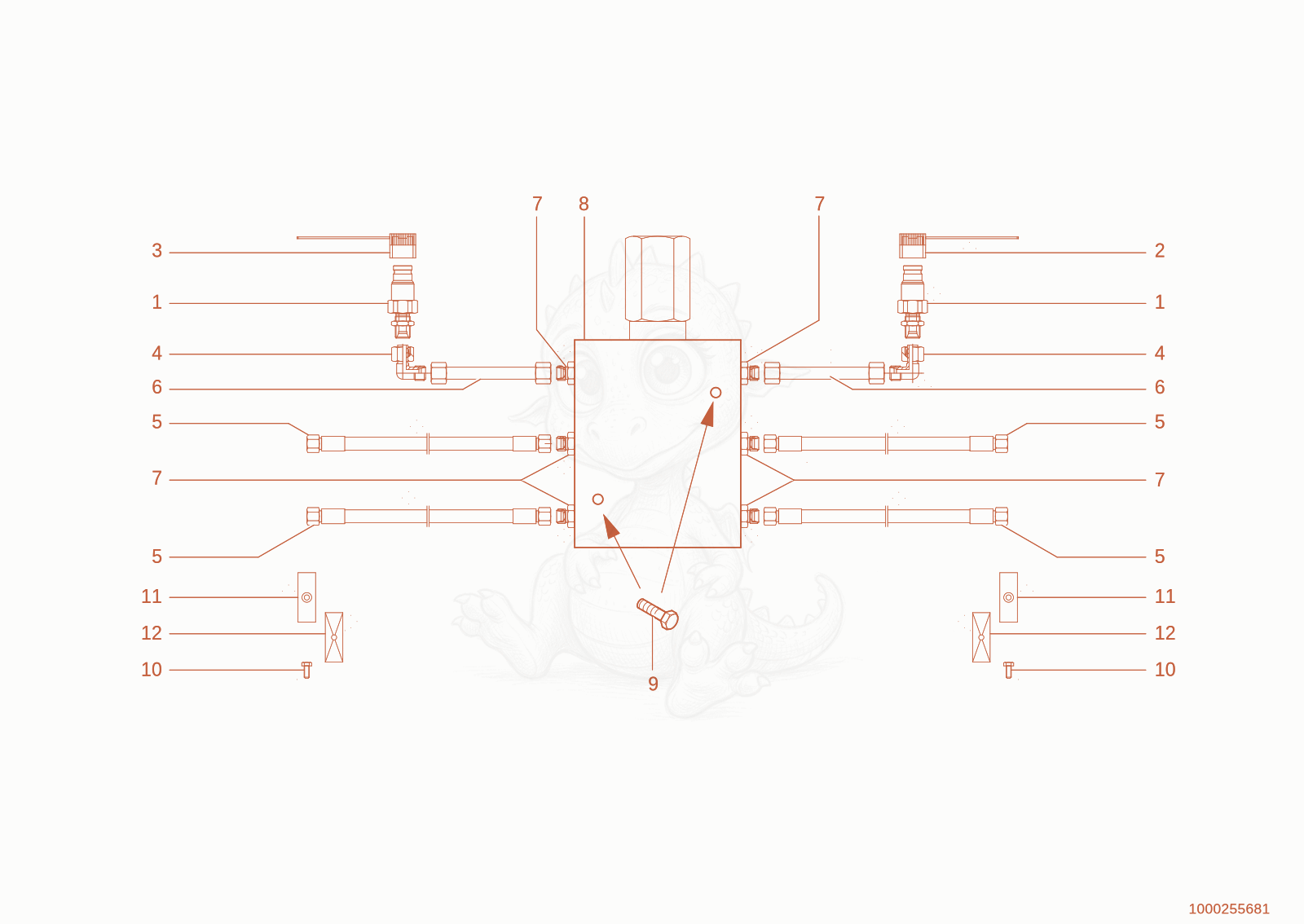

Exploded parts diagram of the Multy purpose bucket hydraulic of a Wacker Neuson 1150, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000000541Not stocked
quick lock coupling×2
21000020861Not stocked
dust cap×1
31000020860Not stocked
dust cap×1
41000000573Not stocked
screw joint×2
51000029067Not stocked
Hose×4
61000113246
$168.76
HYDRAULIC PIPE - 1000113246×2
71000085053
$2.82
GE12LMEDOMDA3C - 1000085053×6
81000266871
$244.62
X-1000054452 Pressure Reduction Valve - 1000266871×1
91000085317
$0.97
hex screw M8x55-8.8 A2C-DIN931 - 1000085317×2
101000085391
$0.91
hex screw - 1000085391×2
111000031626
$3.54
CLAMP - 1000031626×2
121000031230Not stocked
cover plate×2
