1150 wiring harness Diagram

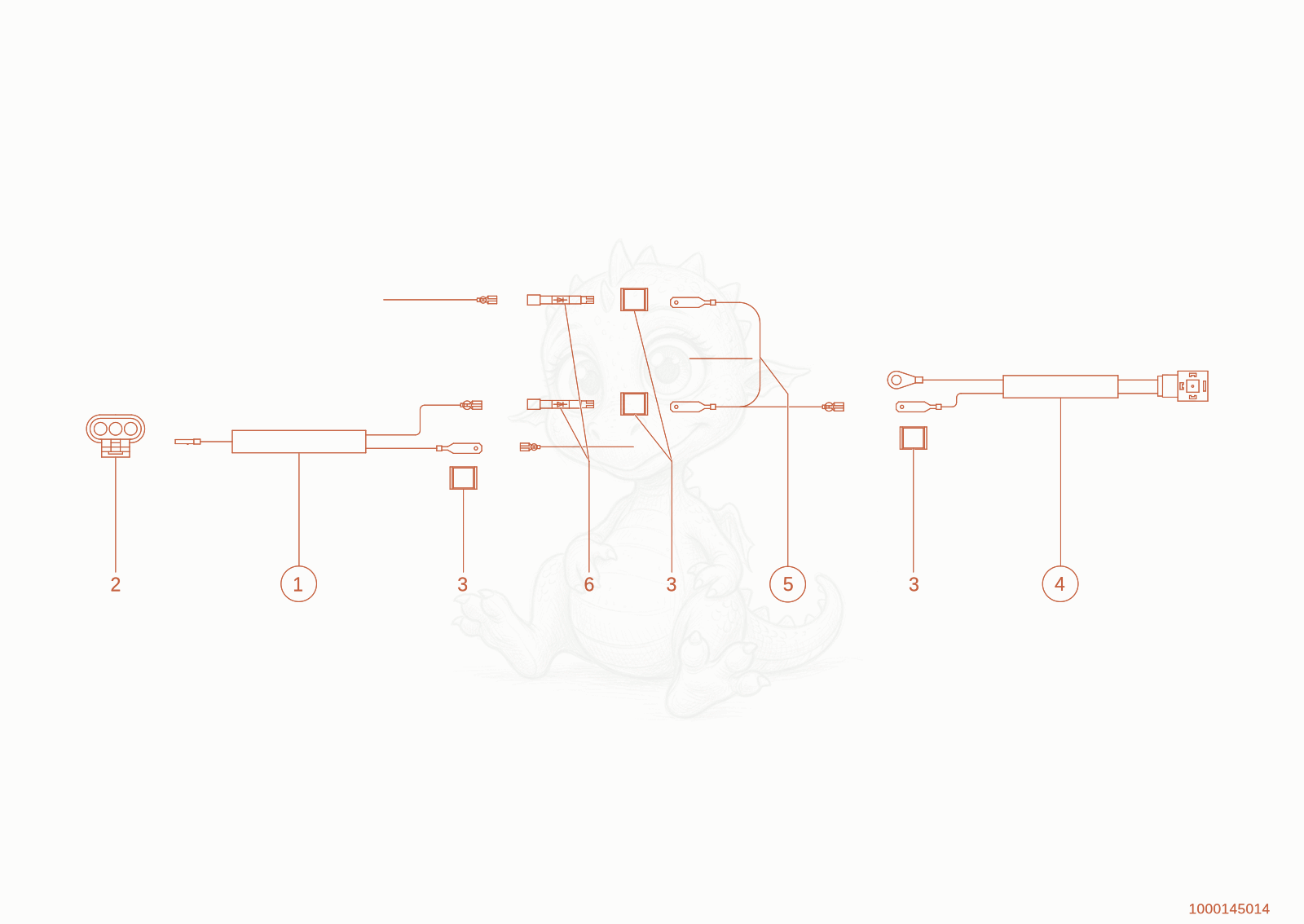

Exploded parts diagram of the wiring harness of a Wacker Neuson 1150, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000141382
$120.38
CABLE - 1000141382×1
21000051989Not stocked
bushing housing×1
31000085008
$1.91
PLUG HOUSING - 1000085008×4
41000139716
$103.63
CABLE - 1000139716×1
51000141383
$45.55
CABLE - 1000141383×1
61000100594Not stocked
block diode×2
