1150 Axle attachment Diagram

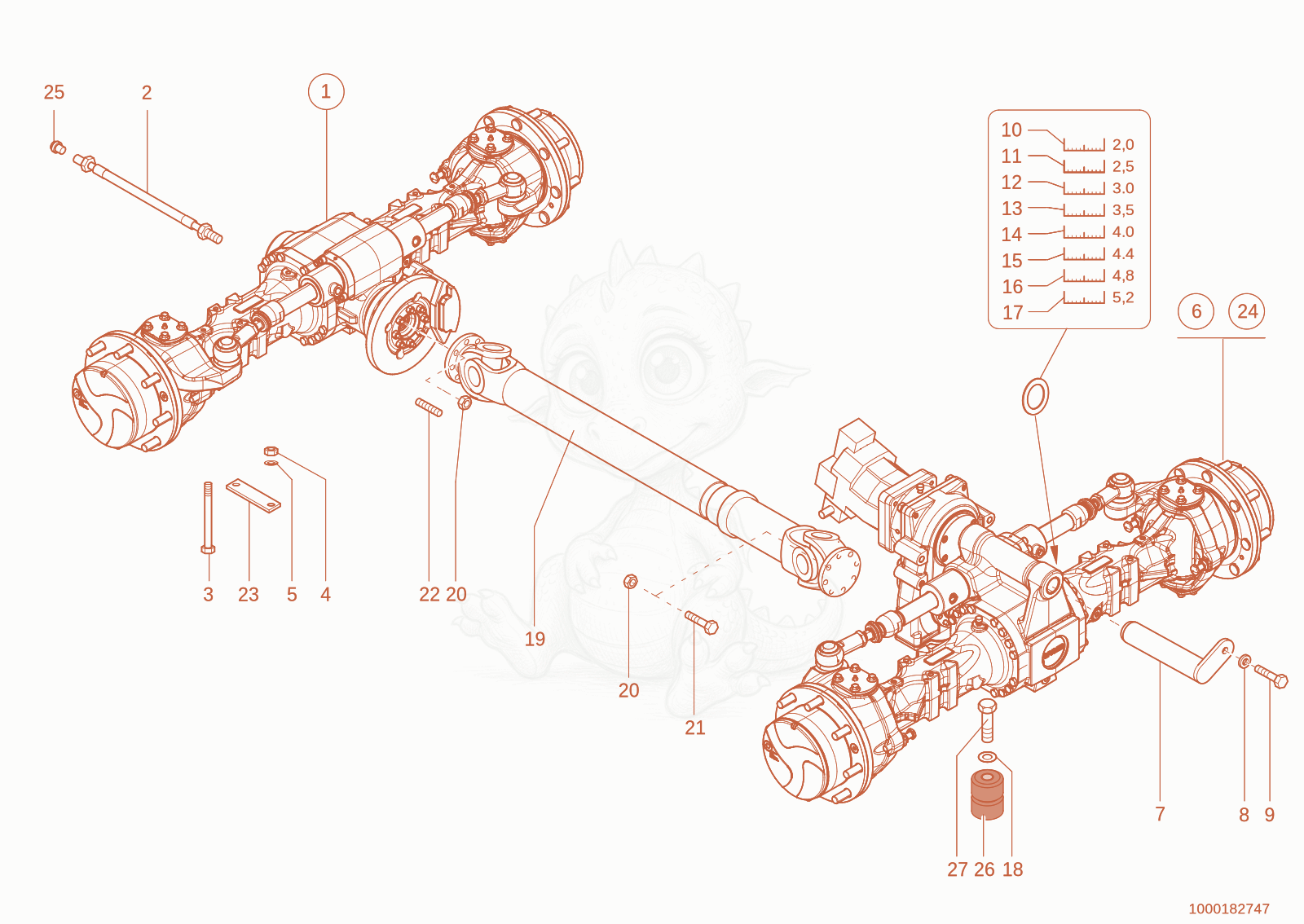

Exploded parts diagram of the Axle attachment of a Wacker Neuson 1150, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000314848Not stocked
front axle×1
21000142774
$57.88
Breather line - 1000142774×1
31000047346Not stocked
hex screw×4
41000018412Not stocked
hexagon nut×4
51000101180
$3.16
WASHER - 1000101180×4
61000314849
$14,990.57
Rearaxle 1000314849×1
71000135203
$235.38
Pin 1000135203×1
81000091783
$6.65
WELD BUSHING - 1000091783×1
91000047789Not stocked
hex screw×1
101000091155
$5.71
DISC - 1000091155×1
111000262074
$39.47
disc - 1000262074×1
121000040610Not stocked
disc×1
131000092575
$5.44
disc - 1000092575×1
141000040619
$8.94
disc - 1000040619×1
151000145783
$23.49
disc - 1000145783×1
161000145784
$23.49
disc - 1000145784×1
171000145785
$23.49
disc - 1000145785×1
181000049219Not stocked
washer×2
191000189382
$1,781.01
Cardanshaft 1000189382×1
201000049102Not stocked
hexagon nut×16
211000015348Not stocked
hex screw×8
221000048917Not stocked
stud×8
231000149224
$180.69
Plate 1000149224×1
241000314850
$19,370.99
rear axle - 1000314850×1
251000243686
$4.41
VENTING VALVE - 1000243686×1
261000032164Not stocked
rubber hollow spring×2
271000047789Not stocked
hex screw×2
