1150 stvzo bucket Diagram

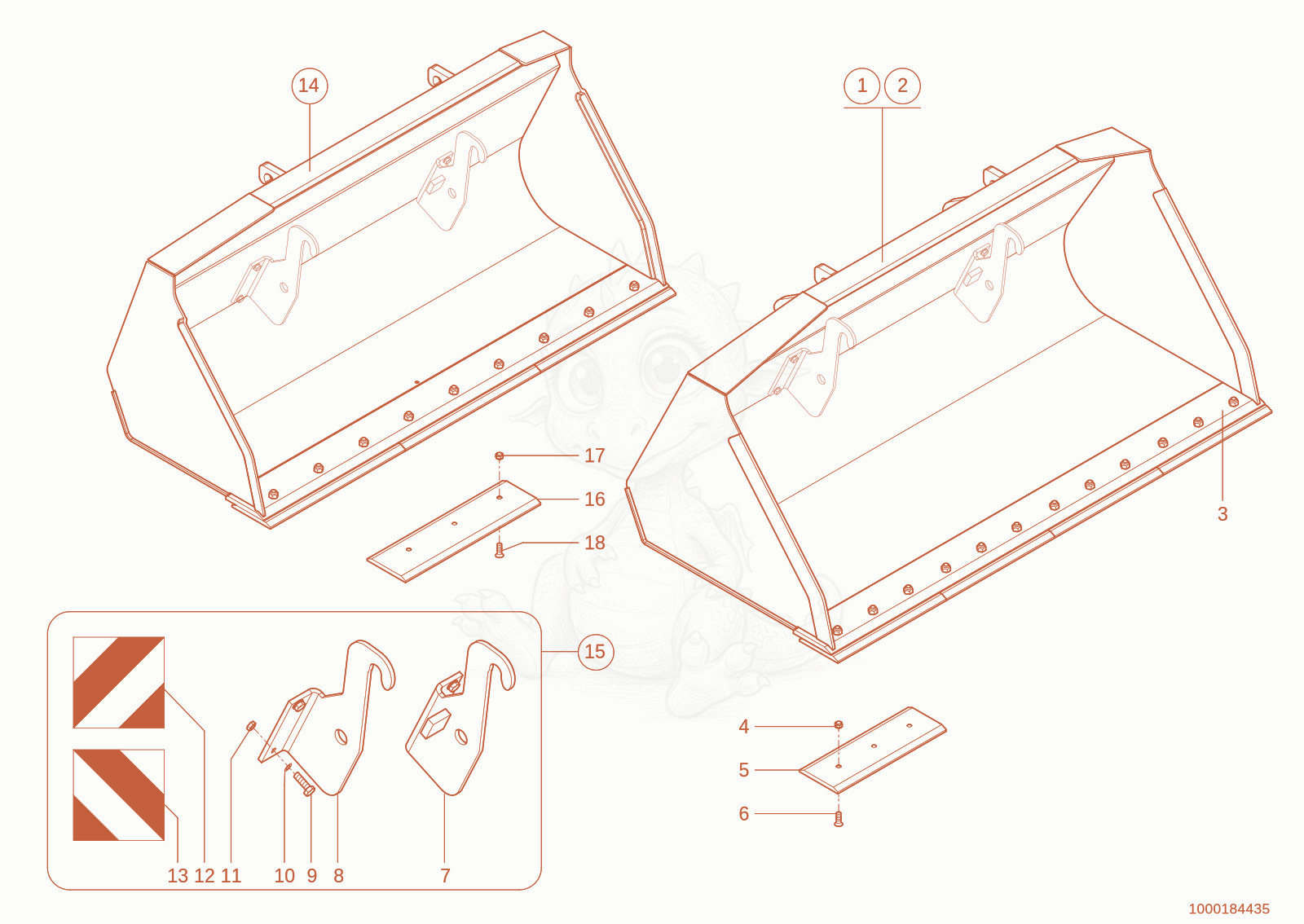

Exploded parts diagram of the stvzo bucket of a Wacker Neuson 1150, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000179389Not stocked
Bucket (HVF) 2300 mm KRA - 1,80 m³×1
21000180148Not stocked
Super lightw. Bucket 2300 SSH STVZO×1
31000137815Not stocked
blade×1
41000018412Not stocked
hexagon nut×12
51000137884
$111.63
Blade 1000137884×4
61000138259
$9.61
COUNTERSUNK SCREW - 1000138259×2
71000105235
$105.14
Joint 1000105235×1
81000105234
$105.14
Joint 1000105234×1
91000021001
$0.89
WASHER - 1000021001×4
101000047298
$4.61
hex screw - 1000047298×4
111000020788Not stocked
hexagon nut×4
121000096912
$271.41
WARNING STRAP - 1000096912×0.282
131000096913
$261.04
warning strap - 1000096913×0.282
141000185123Not stocked
Bucket (HVF) 2150 mm KRA - 1,15 m³×1
151000155020Not stocked
transport hooks×1
161000185269
$197.89
Blade 1000185269×3
171000018412Not stocked
hexagon nut×9
181000138259
$9.61
COUNTERSUNK SCREW - 1000138259×9
