WN Dumper 2001

2001 front part frame Diagram

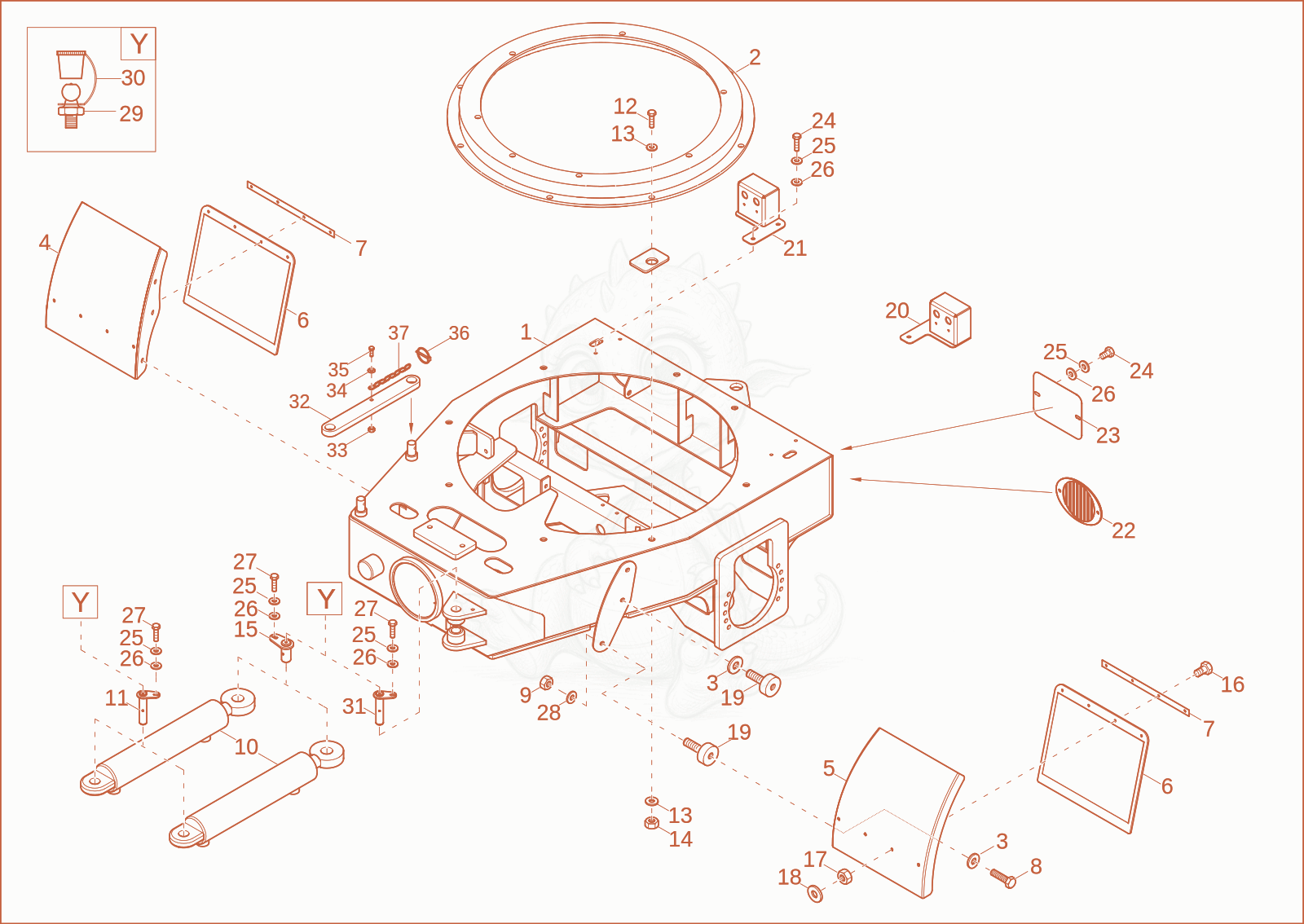

Exploded parts diagram of the front part frame of a Wacker Neuson 2001, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000013367Not stocked
    slewing ring×1
  • WASHER - 1000252801×8
  • 31000015438Not stocked
    lock washer×6
  • 41000068403Not stocked
    dust catch bracket×1
  • 51000068404Not stocked
    dust catch bracket×1
  • 61000065197Not stocked
    dust catch×2
  • 71000065198Not stocked
    fastener rail×2
  • 81000013009Not stocked
    hex screw×6
  • 91000015407Not stocked
    hexagon nut×2
  • 101000372002Not stocked
    boom offset cylinder×2
  • 111000068325Not stocked
    slewing ram pin×2
  • 121000085439
    $10.46
    HEX SCREW - 1000085439×8
  • 131000015453Not stocked
    northlock disc×16
  • 141000082563
    $0.90
    HEXAGON NUT - 1000082563×8
  • 151000068326Not stocked
    slewing ram pin×2
  • 161000082304
    $2.77
    cheese head screw - 1000082304×8
  • 171000015430Not stocked
    washer×8
  • 181000015405Not stocked
    hexagon nut×8
  • 191000004819Not stocked
    swing metal buffer×6
  • 201000075193Not stocked
    bracket turn indicator×1
  • 211000075194Not stocked
    bracket turn indicator×1
  • 221000075195
    $14.39
    light protection screen - 1000075195×2
  • 231000104075Not stocked
    COVER×2
  • 241000013008Not stocked
    hex screw×8
  • 251000015437Not stocked
    lock washer×12
  • 261000015431Not stocked
    washer×12
  • 271000019136Not stocked
    hex screw×4
  • 281000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×2
  • 291000015475Not stocked
    grease nipple×5
  • 301000015480Not stocked
    cap grease nipple×5
  • 311000157663Not stocked
    steering ram pin×1
  • 321000074951Not stocked
    buckle support×1
  • 331000085588
    $0.32
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×1
  • 341000094966
    $0.65
    washer M6,4-DIN134 - 1000094966×1
  • 351000015339Not stocked
    hex screw×1
  • 361000015457Not stocked
    cotter pin×1
  • 371000097224
    $40.66
    CHAIN - 1000097224×0.3
