WN Dumper 2001

2001 rear part frame 1 Diagram

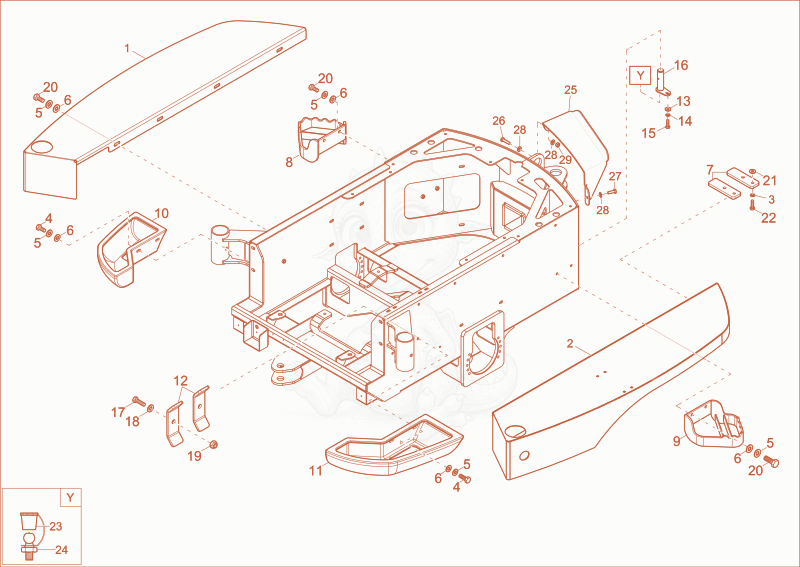

Exploded parts diagram of the rear part frame 1 of a Wacker Neuson 2001, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000315541Not stocked
    wheel cover×1
  • 21000315500Not stocked
    wheel cover×1
  • 31000094970
    $1.71
    Nord-Lock disc NL12x25,4 - 1000094970×2
  • 41000015346Not stocked
    hex screw×4
  • 51000015438Not stocked
    lock washer×16
  • 61000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×16
  • 71000065148Not stocked
    brake venting×2
  • 81000068396Not stocked
    foot step×1
  • 91000068398Not stocked
    foot step×1
  • 101000068389Not stocked
    cast iron edge×1
  • 111000068391Not stocked
    cast iron edge×1
  • 121000099275Not stocked
    hose clamp×2
  • 131000015448Not stocked
    washer×1
  • 141000015437Not stocked
    lock washer×1
  • 151000019136Not stocked
    hex screw×1
  • 161000157663Not stocked
    steering ram pin×1
  • 171000015344Not stocked
    hex screw×2
  • 181000015431Not stocked
    washer×2
  • 191000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×2
  • 201000015371Not stocked
    hex screw×12
  • 211000082638
    $0.73
    washer 13 -DIN134 - 1000082638×4
  • 221000085404
    $0.93
    hex screw - 1000085404×2
  • 231000015475Not stocked
    grease nipple×1
  • 241000015480Not stocked
    cap grease nipple×1
  • 251000239923Not stocked
    protection×1
  • 261000085412
    $0.87
    6-Point screw M10x40-8.8 A2C-DIN933 - 1000085412×1
  • 271000015364Not stocked
    hex screw×1
  • 281000094974
    $0.70
    washer M10-DIN134 - 1000094974×3
  • 291000015408
    $1.33
    nut M10-8 A2C-DIN985 - 1000015408×1
