WN Dumper 2001

2001 skip Diagram

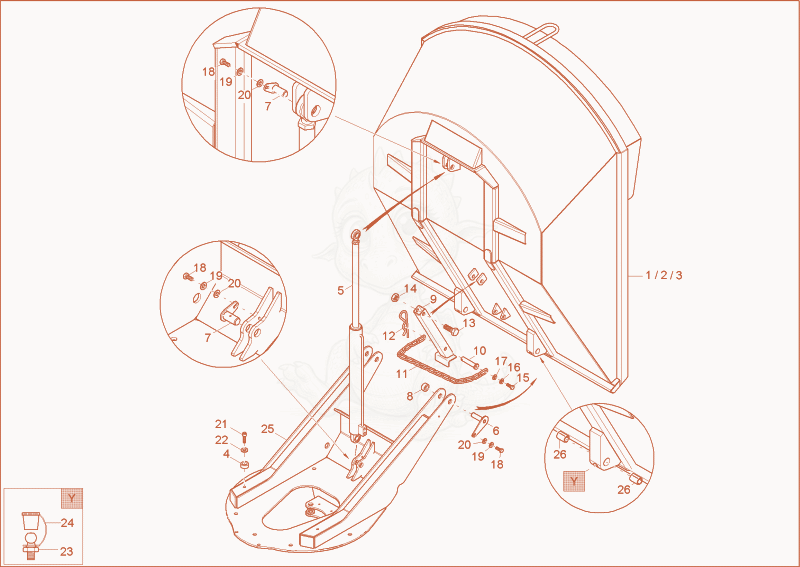

Exploded parts diagram of the skip of a Wacker Neuson 2001, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000153648Not stocked
    powerswivel×1
  • 21000153649Not stocked
    powerswivel×1
  • 31000190410Not stocked
    powerswivel×1
  • 41000064951Not stocked
    bucket support×2
  • 51000372007Not stocked
    tilt ram×1
  • 61000075173
    $10.47
    BUCKET TILT PIN - 1000075173×2
  • 71000068326Not stocked
    slewing ram pin×2
  • 81000013371Not stocked
    pin piece×2
  • 91000075174Not stocked
    maintenance support×1
  • 101000075176
    $6.56
    PIN SERVICE SUPPORT - 1000075176×1
  • 111000097224
    $40.66
    CHAIN - 1000097224×0.6
  • 121000002967Not stocked
    plug×1
  • 131000085340
    $2.13
    hex screw - 1000085340×1
  • 141000020788Not stocked
    hexagon nut×1
  • 151000085382
    $0.70
    HEX SCREW - 1000085382×1
  • 161000015444Not stocked
    spring washer×1
  • 171000094966
    $0.65
    washer M6,4-DIN134 - 1000094966×1
  • 181000013008Not stocked
    hex screw×4
  • 191000015437Not stocked
    lock washer×4
  • 201000015448Not stocked
    washer×4
  • 211000082415
    $2.83
    CHEESE HEAD SCREW - 1000082415×2
  • 221000082609
    $0.73
    lock washer - 1000082609×2
  • 231000015475Not stocked
    grease nipple×2
  • 241000079457
    $2.40
    protecting cap - 1000079457×2
  • 251000068356Not stocked
    swivel console×1
  • 261000015622Not stocked
    dx bushing×4
