WN Dumper 2001

2001 engine hood Diagram

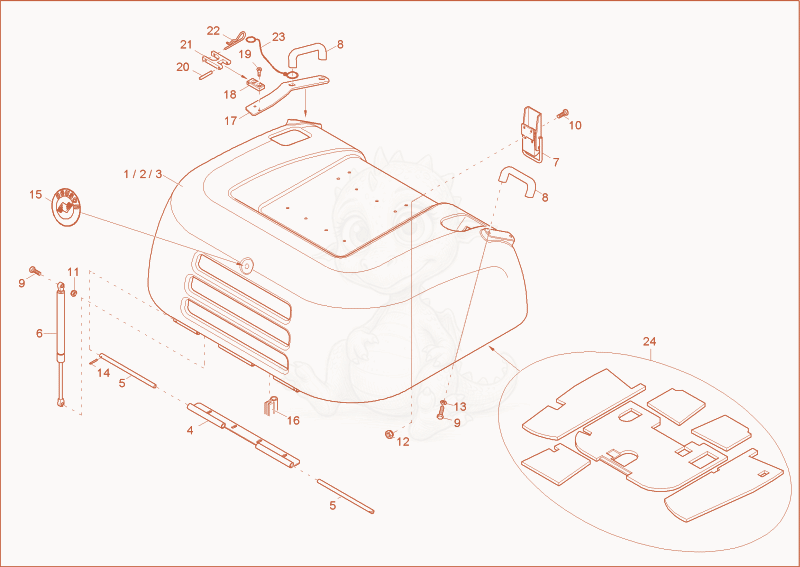

Exploded parts diagram of the engine hood of a Wacker Neuson 2001, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000143553Not stocked
    engine hood×1
  • 21000102573Not stocked
    engine hood×1
  • 31000068350Not stocked
    engine hood×1
  • 41000078991
    $38.15
    hinge part - 1000078991×1
  • 51000065132Not stocked
    hinge pin×2
  • 61000001779Not stocked
    gas strut×1
  • 71000003253Not stocked
    bonnet buckle×1
  • 81000065204
    $15.21
    HANDLE - 1000065204×2
  • 91000085390
    $0.83
    6-Point screw M8x30-8.8 A2C-DIN933 - 1000085390×6
  • 101000085379
    $1.08
    hex screw - 1000085379×4
  • 111000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×2
  • 121000085587
    $0.03
    HEXAGON NUT - 1000085587×4
  • 131000015431Not stocked
    washer×4
  • 141000085645
    $1.51
    cotter pin - 1000085645×2
  • 151000101091
    $51.73
    Badge - 1000101091×1
  • 161000017833Not stocked
    rubber profile×1.5
  • 171000156477Not stocked
    support plate×1
  • 181000075204
    $8.68
    CONSOLE PUSHER - 1000075204×1
  • 191000082505
    $0.70
    countersunk screw - 1000082505×2
  • 201000082746
    $0.90
    cotter pin - 1000082746×1
  • 211000156491Not stocked
    lock sliderstop×1
  • 221000002967Not stocked
    plug×1
  • 231000082230
    $3.67
    FIXING STRAP - 1000082230×1
  • 241000156003Not stocked
    insulating mat×1
