WN Dumper 2001

2001 BUCKET CYLINDER (OPTION SLE) Diagram

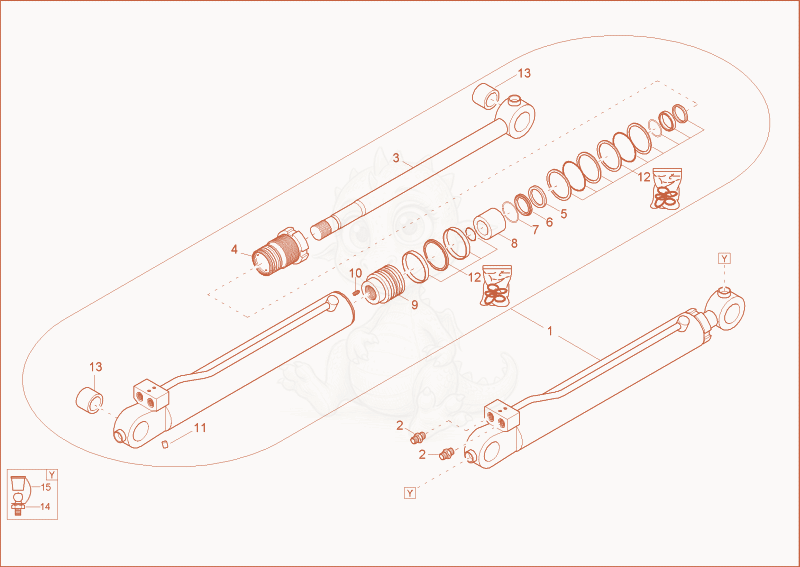

Exploded parts diagram of the BUCKET CYLINDER (OPTION SLE) of a Wacker Neuson 2001, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000156052Not stocked
    bucket cylinder×1
  • 21000015491Not stocked
    screw joint×2
  • 31000066370Not stocked
    piston rod×1
  • 41000066369Not stocked
    guide bushing×1
  • 51000064802Not stocked
    shock absorber ring×1
  • 61000064803
    $190.33
    FASTENRING - 1000064803×1
  • 71000082760
    $3.63
    LOCK RING - 1000082760×1
  • 81000154712Not stocked
    lift limiter×1
  • 91000065866
    $152.16
    PISTON - 1000065866×1
  • 101000015384Not stocked
    thread pin×1
  • 111000082819Not stocked
    ballexpander×1
  • 121000066499Not stocked
    cylinder seal kit×1
  • 131000015618
    $21.08
    steel bushing - 1000015618×2
  • 141000015475Not stocked
    grease nipple×2
  • 151000015480Not stocked
    cap grease nipple×2
