WN Dumper 2001

2001 cooling system Diagram

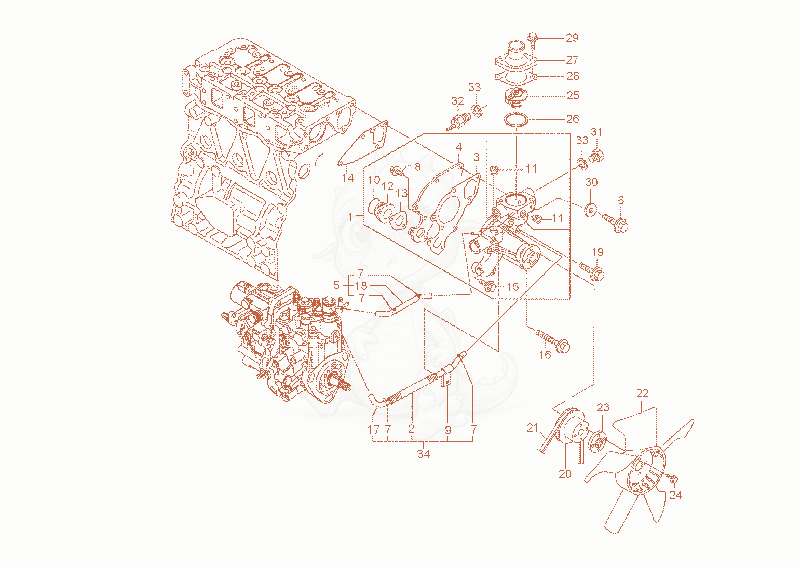

Exploded parts diagram of the cooling system of a Wacker Neuson 2001, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000108128Not stocked
    water pump×1
  • 21000184755Not stocked
    pipe line×1
  • 31000108129
    $8.98
    seal water pump - 1000108129×1
  • 41000134803
    $35.86
    PLATE - 1000134803×1
  • 51000108159
    $56.12
    pipe line - 1000108159×1
  • 61000085173
    $1.82
    hex screw - 1000085173×1
  • 71000107851
    $4.83
    CLAMP - 1000107851×4
  • 81000098692
    $2.65
    hex screw - 1000098692×2
  • 91000107850
    $19.06
    CLAMP - 1000107850×1
  • 101000108152Not stocked
    o-ring×1
  • 111000063420
    $5.42
    lock screw - 1000063420×2
  • 121000108151
    $31.36
    PIPE LINE - 1000108151×1
  • 131000108153
    $12.30
    SEAL - 1000108153×1
  • 141000108154
    $6.79
    SEAL - 1000108154×1
  • 151000109681Not stocked
    screw×2
  • 161000085184
    $2.45
    HEX SCREW - 1000085184×3
  • 171000108158Not stocked
    pipe line×1
  • 181000108160Not stocked
    pipe line×1
  • 191000085194
    $2.80
    SCREW - 1000085194×1
  • 201000069176Not stocked
    belt pulley×1
  • 211000108042
    $36.06
    V-BELT - 1000108042×1
  • 221000065015Not stocked
    ventilator fan×1
  • 231000073591Not stocked
    spacer ventilator×1
  • 241000035840
    $1.27
    Screw - 1000035840×4
  • 251000012549
    $76.23
    X-1000115256 THERMOSTAT - 1000012549×1
  • 261000012550Not stocked
    gasket thermostat×1
  • 271000073611
    $84.47
    THERMOSTAT HOUSING - 1000073611×1
  • 281000012548Not stocked
    gasket thermostat×1
  • 291000063337Not stocked
    hex screw×2
  • 301000085674
    $3.33
    SEAL RING - 1000085674×1
  • 311000063425Not stocked
    lock screw×1
  • 321000003892Not stocked
    temperature switch×1
  • 331000002929Not stocked
    seal ring×2
  • 341000108156
    $220.34
    PIPE LINE - 1000108156×1
