WN Dumper 2001

2001 Engine bedding Diagram

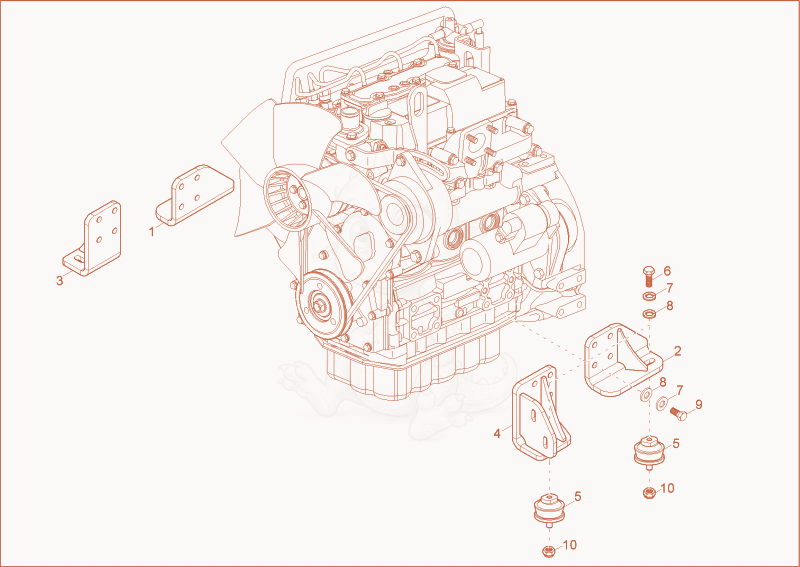

Exploded parts diagram of the Engine bedding of a Wacker Neuson 2001, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000068368Not stocked
    engine console×1
  • 21000068369Not stocked
    engine console×1
  • 31000068370Not stocked
    engine console×1
  • 41000068371Not stocked
    engine console×1
  • 51000065012Not stocked
    rubber buffer×4
  • 61000015371Not stocked
    hex screw×4
  • 71000094974
    $0.70
    washer M10-DIN134 - 1000094974×20
  • 81000082678
    $1.36
    NORTHLOCK DISC - 1000082678×20
  • 91000015367Not stocked
    hex screw×16
  • 101000015408
    $1.33
    nut M10-8 A2C-DIN985 - 1000015408×4
