WN Dumper 2001

2001 fuel system Diagram

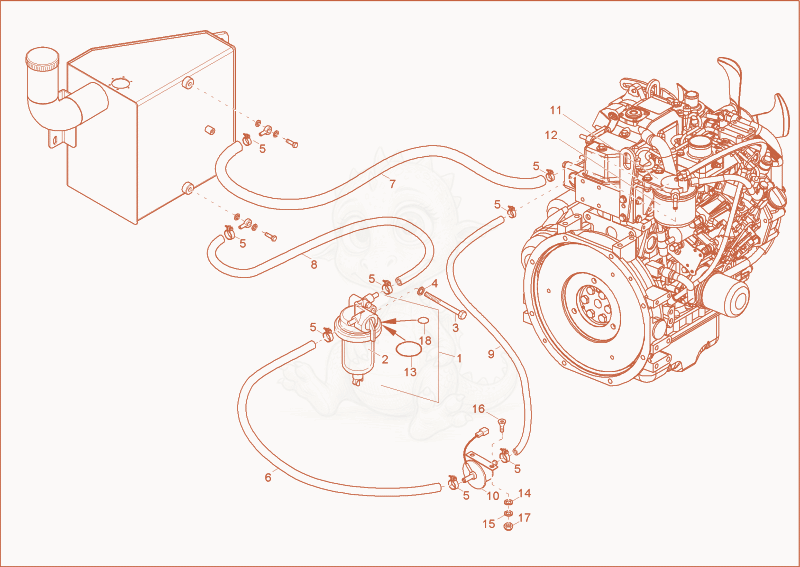

Exploded parts diagram of the fuel system of a Wacker Neuson 2001, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000078938
    $52.73
    Water Seperator - 1000078938×1
  • 21000106892
    $30.76
    water seperator element - 1000106892×1
  • 31000015402
    $1.94
    hex screw - 1000015402×1
  • 41000015437Not stocked
    lock washer×1
  • 51000094774
    $2.51
    HOSE STRAP - 1000094774×8
  • 61000097219
    $14.10
    fuel line - 1000097219×0.74
  • 71000097219
    $14.10
    fuel line - 1000097219×0.85
  • 81000097219
    $14.10
    fuel line - 1000097219×0.4
  • 91000097219
    $14.10
    fuel line - 1000097219×0.63
  • 101000093894
    $299.72
    FUEL PUMP - 1000093894×1
  • 111000113360
    $189.34
    bracket dieselfilter - 1000113360×1
  • 121000379275Not stocked
    fuel filter×1
  • 131000069998Not stocked
    gasket filter housing×1
  • 141000094966
    $0.65
    washer M6,4-DIN134 - 1000094966×2
  • 151000015444Not stocked
    spring washer×2
  • 161000085382
    $0.70
    HEX SCREW - 1000085382×2
  • 171000015413Not stocked
    hexagon nut×2
  • 181000064543
    $1.72
    O-RING - 1000064543×1
